8

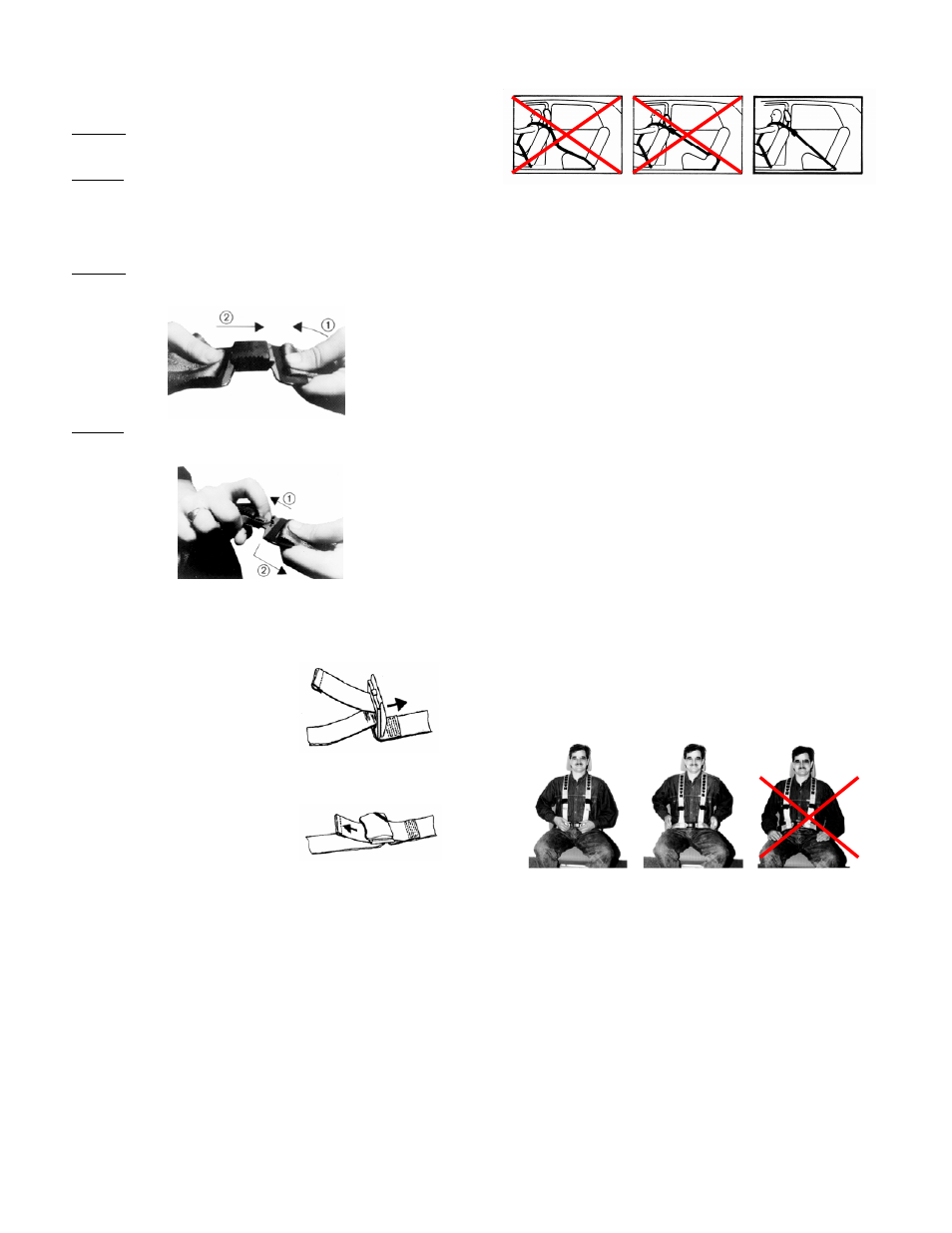

5 How to close and release the buckles
5.1 Lap belt buckle and all “Click-In” points where the
standard BMW Female Receptacle is used.
To close:
Insert the latch into the buckle until you can hear a
distinct clicking sound.
To open: Depressing the red button marked "PRESS" will
open the buckle.
5.2 Buckle between tail strap and the outer most rear
tail strap of the shoulder belts (separation buckle).
To close:
Insert the latch underneath the plastic cover until it
locks in (1) and the plastic cover slides back into
its normal position (2).
To open: Slide the plastic cover in the direction of the arrow
to the stop (1). Tilt the latch downwards and
remove it from the buckle (2).
6
How to adjust the belt
6.1 Lengthen the belt
Hold the adjuster at right angles
- 90° - to the belt and pull in
direction of the arrow (see
illustration beside).
6.2 Shorten
the belt
Pull the end of the strap in
direction of the arrow (see
illustration beside).
SCHROTH offers accessory adjusting grips which can make
the adjustment even more convenient (see page 18,
Accessories).
7
Adjustment of the headrest and initial adjustment
of the tail strap
wrong way wrong way right way
Belts must not have
any sag. The tail strap must
not be misdirected
by upholsteries or
the rear seat
cushions. The headrest is
properly adjusted
and the shoulder
belts can move
freely without
slack.
a) After choosing the correct seating position, put the belt on
and adjust the lap belt so it fits tightly in the bend between
the pelvic crest and the upper thigh. The release buckle
should be located in the center in front of your body. If
necessary, lengthen the tail strap first.
b) Next adjust the shoulder belts: Make sure there is approx. 4
inches (10 cm) of loose belt protruding from each shoulder
belt adjuster.
c) One of the two shoulder belts should now be tight against
the shoulder; the other shoulder belt should be looser.
d) Tighten the looser shoulder belt until both shoulder belts
have the same pressure over the shoulders and in the
chest area.
Make sure the shoulder straps are properly adjusted whenever
the SCHROTH harnessbelt is worn.
For lap belt adjustment see following paragraph.
8 Putting
on the belt
a) After choosing the correct seating position, put on the belt
and adjust the lap belt so it fits tightly in the bend
between the pelvic crest and the upper thigh. The release
buckle should be located in the center in front of your
body. (HINT- slide the seat back - tighten the lap belt –
move the seat forward to maximize lap belt tightness.)
close buckle tighten lap belt W R O N G
