YAM - 2 2,0 113 235 180 125 50 50 85 16 8,0
YAM - 5 5,0 120 290 257 182 75 57 117 22 19,0
YAM - 10 10,0 145 325 280 240 100 60 150 28 38,0
YAM - 15 15,0 140 336 292 240 85 60 110 28 41,0
D C
B
A
E
G
F
D C
B A
E
G
F
Machine jacks

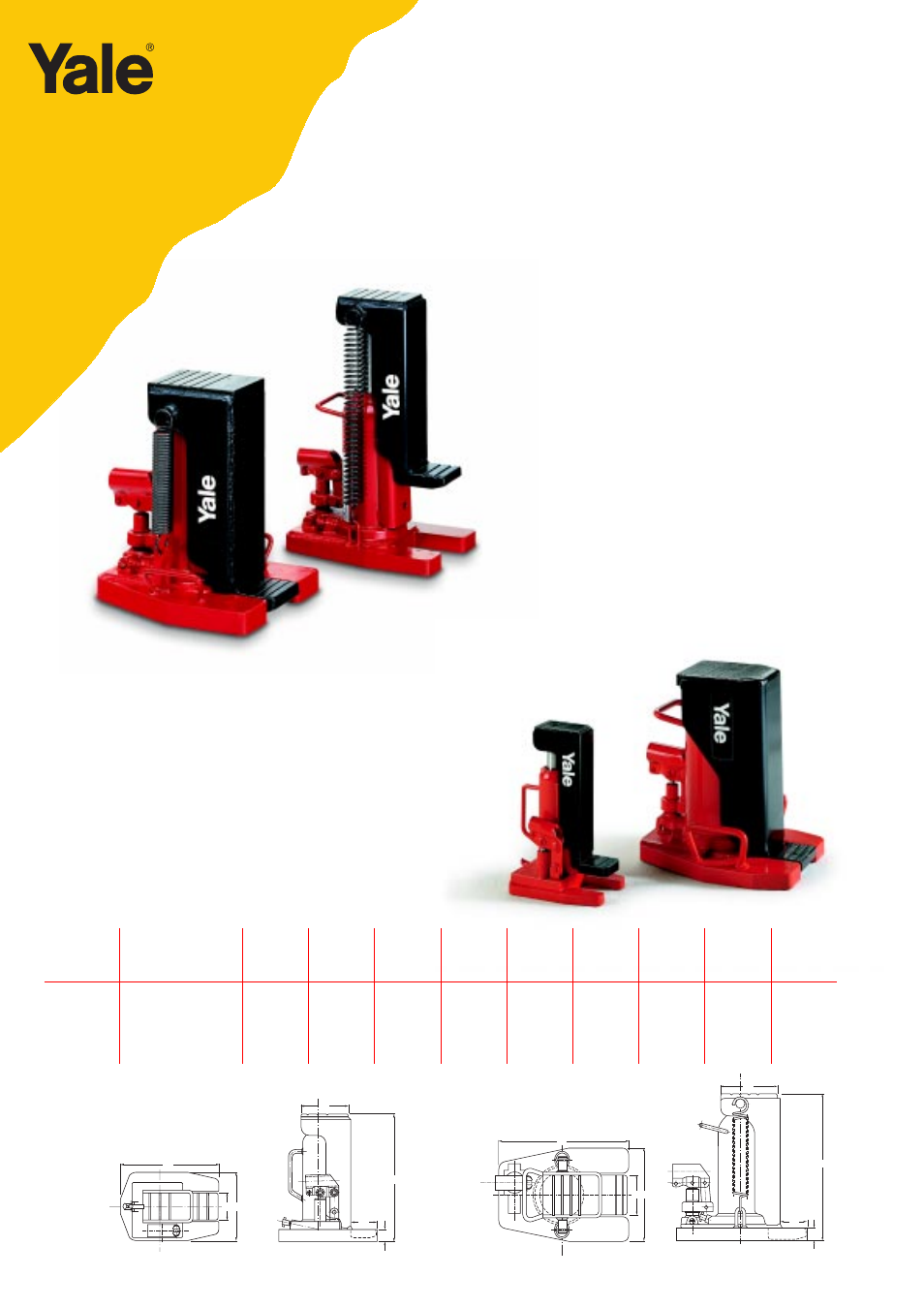

YAM Machine jacks with lifting claw
from 2 to 15 tonnes
Machine jacks with lifting claw are used in applica-
tions where space below the load is restricted, thus
preventing the use of traditional lifting equipment.
Features
• offers safe lifting of machines with an extremely
low clearance
• incl. safety pressure valve to prevent overload
• large base offers increased stability under load
• pump lever can rotate through 270
°
(excluding YAM - 2)
• same load can be lifted on either the head or the
claw of jack
• spring return of the lifting claw (only YAM - 5 and
YAM - 10)
• precision adjustable lowering valve
• jacks are supplied “ready to use“ incl. pump
lever and are filled with oil
Applications
Typical applications for machine jacks are lifting,
positioning and transportation of machines, heavy
steel constructions or similar loads, as well as
general repair and assembly applica-tions,
like leveling of high-rise warehouses, heavy duty
scaffolds, large frameworks etc.
YAM - 10
YAM - 5
Model Capacity Stroke A B C D E F G Weight
on claw and head
tonnes mm mm mm mm mm mm mm mm kg
60
YAM - 2 YAM - 5 to YAM - 15
YAM - 15
YAM - 2
