1. General
The RSC232 Converter is for conversion of single-ended RS-232 signals to differential
RS-422/RS-485 signals, and vice versa. Applications include controlling devices over
relatively large distances, and communication with several devices via 1 link (point to
multipoint).

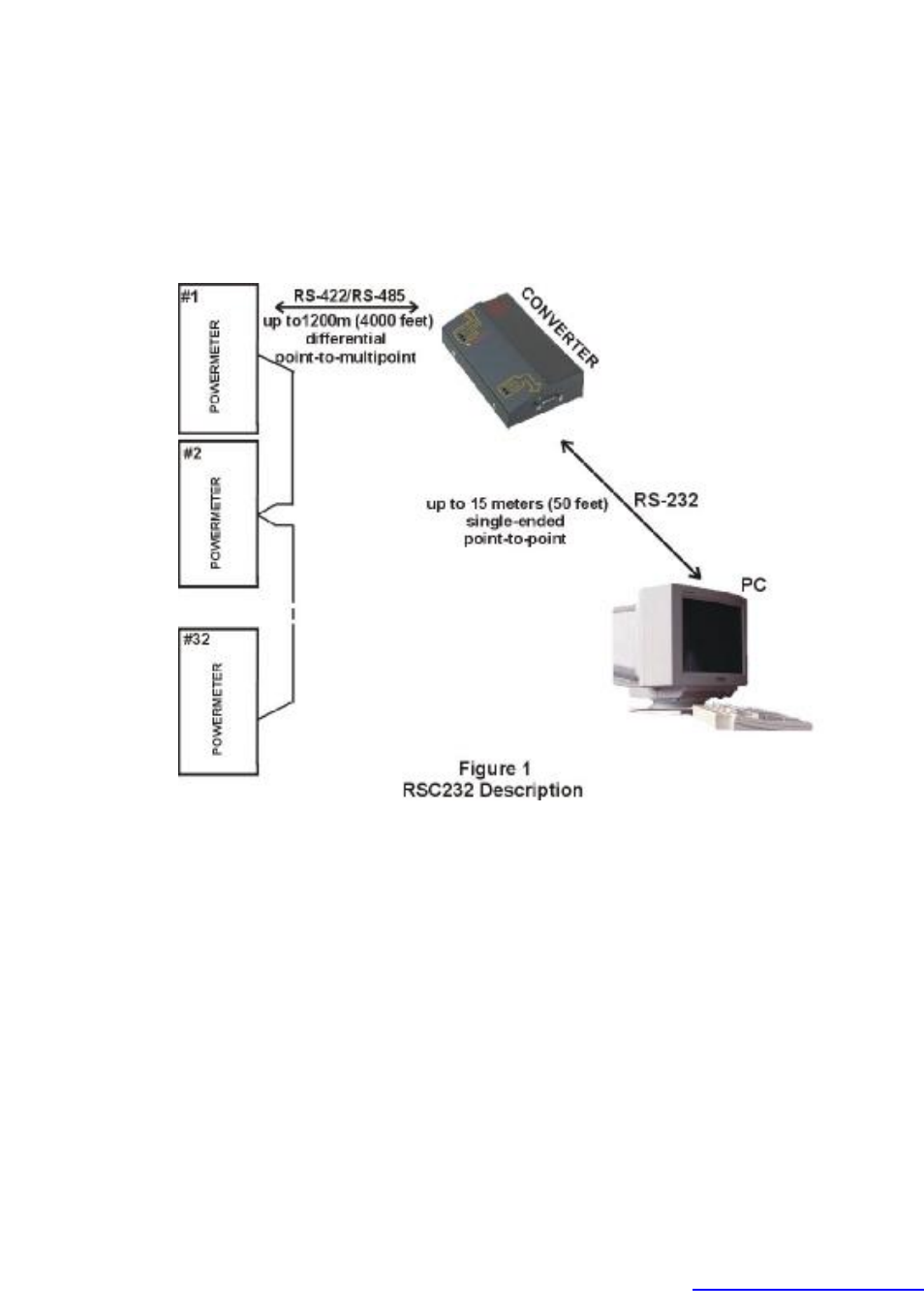

See Figure 1 below.
Features
•
automatic data detection (no need for external RTS)
•
2000 V RMS isolation
•
user-selectable modes and baud rates
•
powered from Power Supply AC/DC (80-265) V RMS or low DC (10-72) V
•
LED indicators for communication status
