S&S Cycle Single Bore Induction System User Manual
Page 9
9
19- Align the bore and holes. Remove the backplate, tighten the manifold mounting bolts to 14-18 ft-lbs. For banjo breather systems, install the
shims. For both breather styles, using blue threadlock on the three fillister head screws, tighten them in the backing plate to 35-45 in-lbs. For
banjo breather systems, install the two 242 Loctite coated special 5/16-24 x 3/8” screws through the backplate and torque to 8-12 ft-lbs. For 41/8"
bore engine breather systems, place flat washers on the 5/16-18 x 11/4” screws, coat with 242 Loctite® and install through the backplate, shims and
spacers into the heads and torque to 10-12 ft-lbs.
20- Apply 242 Loctite to the air cleaner mounting screws and install the air cleaner, air cleaner cover and tighten the screws to 35-45 in-lbs.

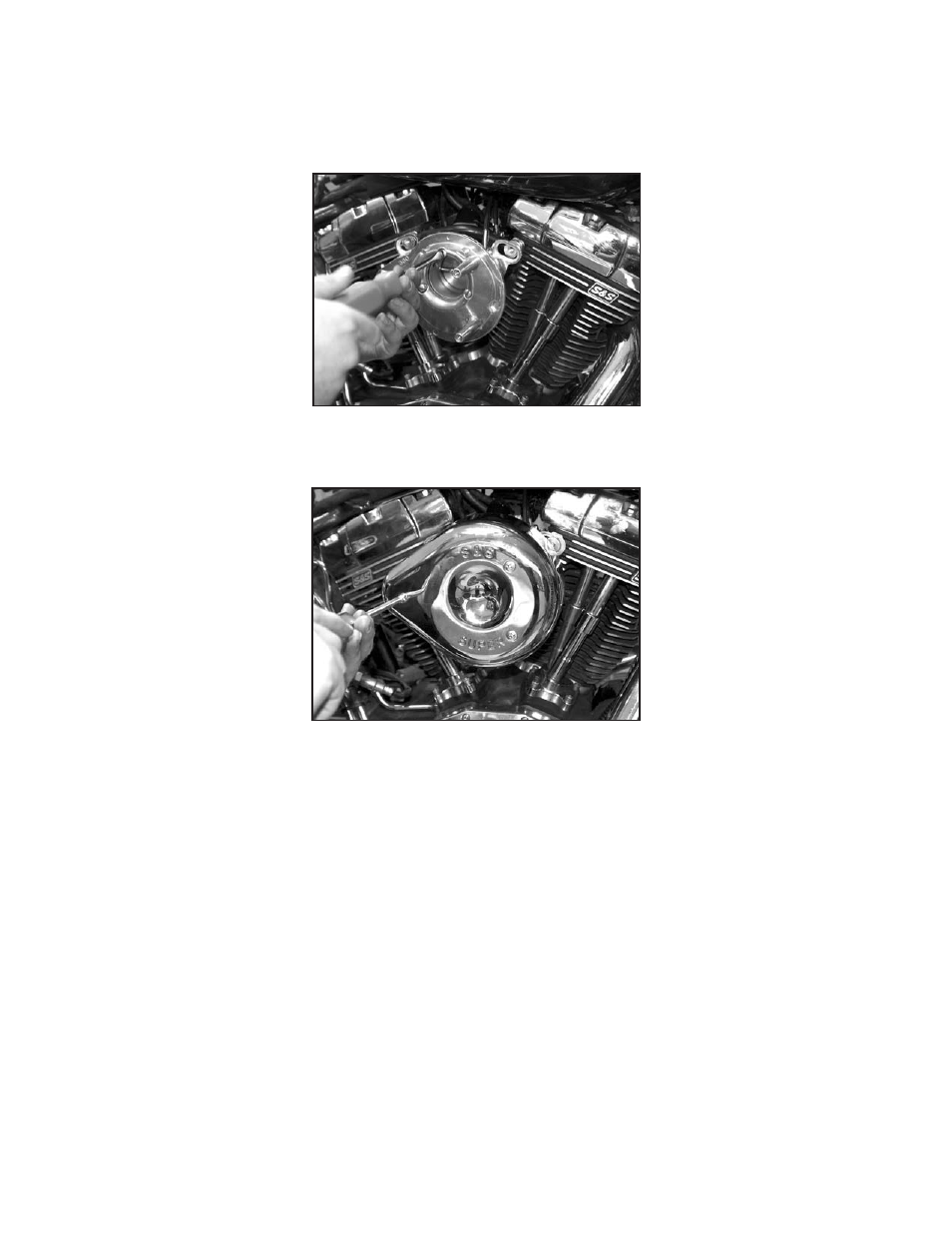

Picture 18
Picture 19
21- Reinstall any components removed for the installation. Install the new tune-file and start motorcycle.
