S&S Cycle Teardrop Air Cleaner Kit (PN 106-5795) for 2010-Up Honda Fury 1300 Motorcycles User Manual
Page 2
2
TOOL REqUIREMENTS
5mm Allen Wrench
•
10mm Socket or Wrench
•
1/8” and 3/16" Allen Wrench
•
1/2” Socket or Wrench
•
#2 Phillips Screwdriver
•
#3 Phillips Screwdriver
•
Pliers
•
INSTALLATION
1- Remove the stock chrome cover by removing the four 5mm Allen bolts.

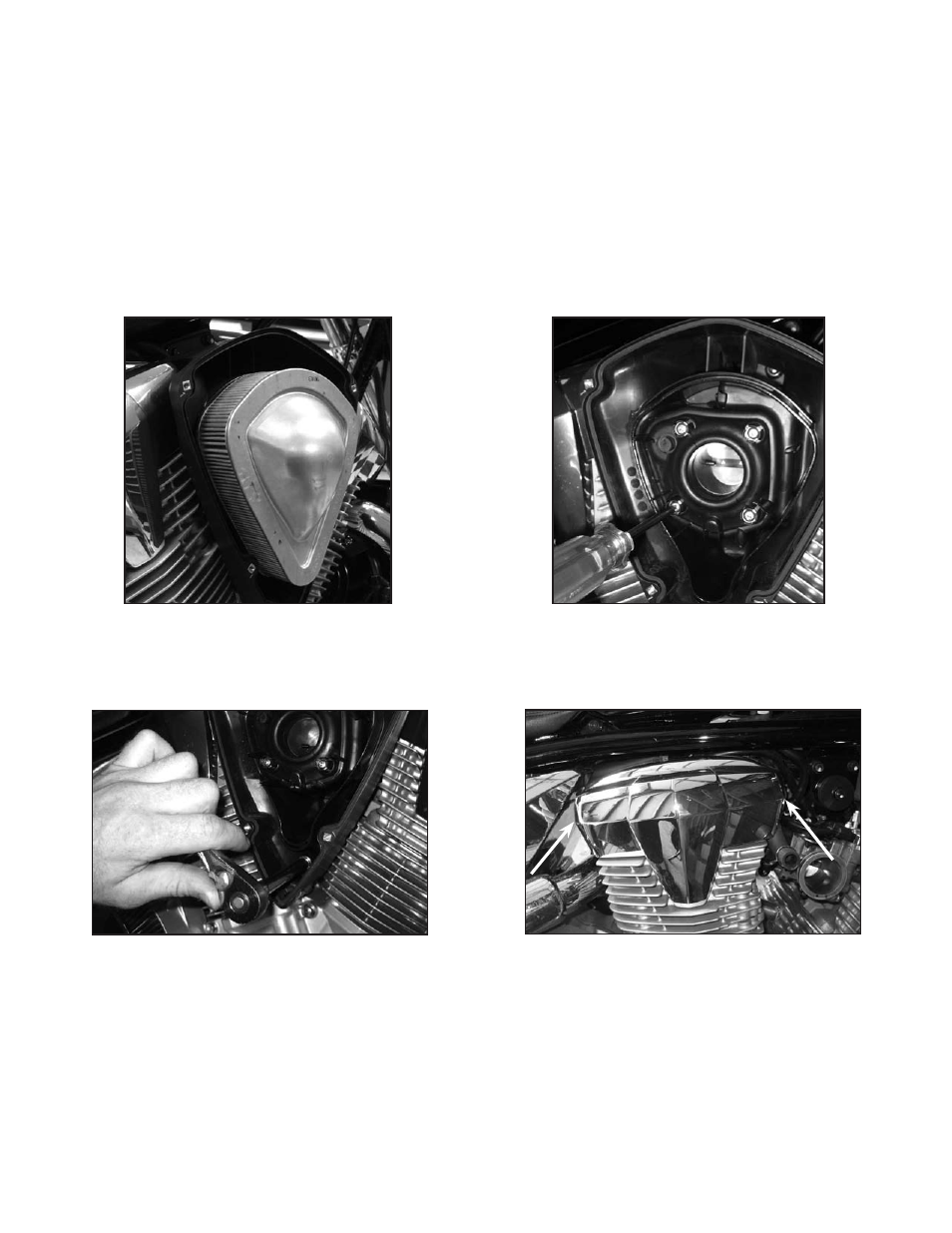

2- Remove the air cleaner and loosen the four #2 Phillips screws. See Pictures 1 and 2.
3- Remove the 6mm bolt from the lower air box and remove the air box. Save this bolt as it will be used later on in the installation. See Picture 3.
4- Remove the rear cylinder head chrome cover by grasping the outer edges and pulling out. See Picture 4.
Picture 1
Picture 2
Picture 3
Picture 4
