UNIT DISPLAY PANELS
NOTE: The display panel on the indoor unit will look like one of the following. Some of the functions will appear on the display
panel, remote control or both.
On the Unit:
Infrared signal receptor
OPERATION TIMER
PRE-DEF
AUTO
ECON
A08486
9K
TIMER OPERATION
PRE-DEF
Infrared signal receptor
A07544
12K
TIMER PRE.-DEF* AUTO OPERATION
A08483
18K -- 24K
*PRE--DEF light will illuminate when the unit is running in FAN ONLY mode
on Cooling Only units.
Note: Cooling only units have same LED lights but without PRE--DEF print.
OPERATION:
This indicator flashes once per second after power is on and
illuminates when the unit is in operation.
TIMER:
This indicator illuminates when TIMER is set ON or OFF.
PRE.--DEF indicator (heat pump units only):
Pre--Def indicator illuminates when the coil is warming up to
prevent cold blow or when unit goes into defrost mode.
AUTO indicator:
When air conditioner is set to AUTO mode, the indicator
illuminates.
FAN ONLY indicator:
When air conditioner is set to FAN ONLY mode, this indicator
illuminates.
NOTE: All the pictures in this manual are for demonstration
purposes only. The actual shape of your air conditioner may
be slightly different, but the operation instructions are the
same.

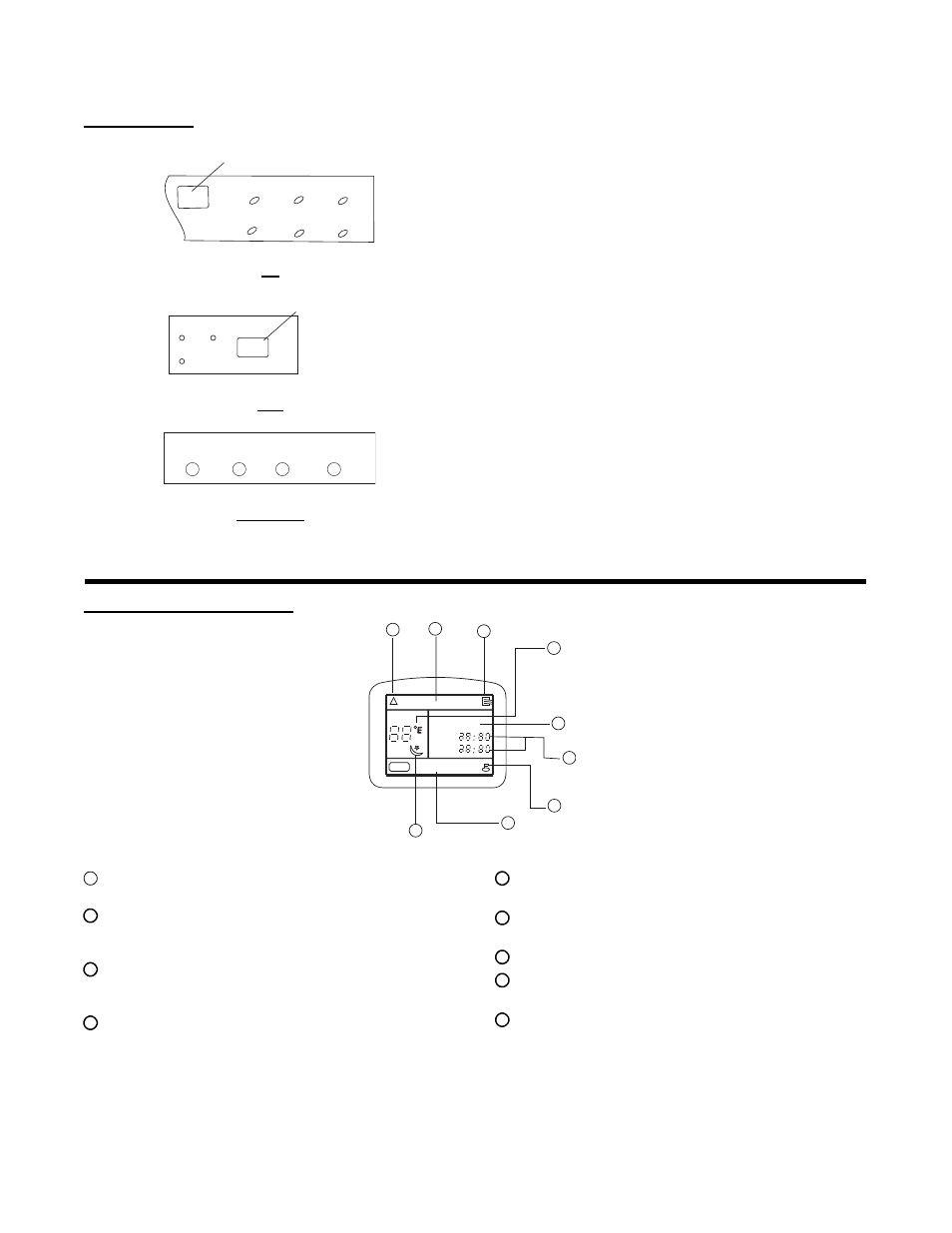

Remote Control Display
AUTO COOL DRY HEAT FAN
S E T T E MP.
CL OC K
TIMER ON
TIMER OFF
SP EE D AUTO LOW MED H IGH
1 2
4
5
6
3
8
7
9
A08043
1 TRANSMISSION INDICATOR: Illuminates when remote
control transmits signals to the indoor unit.
2 MODE DISPLAY: Indicates the current operation mode
“AUTO”, “COOL”, “DRY”, “HEAT” (heat pumps only), or
“FAN”.
3 ON/OFF INDICATOR: This symbol appears when the unit
is turned on by the remote control, and disappear when the
unit is turned off.
4 TEMPERATURE DISPLAY: Temperature setting from
62_F (17_C) to 88_F (30_C) will be displayed. If FAN mode
is selected, there will be no temperature displayed.
5 CLOCK DISPLAY: Indicates the current time (0 to 24
hours).
6 TIMER DISPLAY: Indicates the set times for the timer
operation (0 to 24 hours).
7 LOCK DISPLAY: Displays when settings are locked.
8 FAN SPEED DISPLAY: Indicates the set fan speed. AUTO
is displayed when unit is running in AUTO or DRY mode.
9 SLEEP DISPLAY: Indicates unit is running in SLEEP mode.
NOTE: Symbols shown in this manual are for the purpose of demonstration. During actual operation, only the relevant symbols are
displayed.
