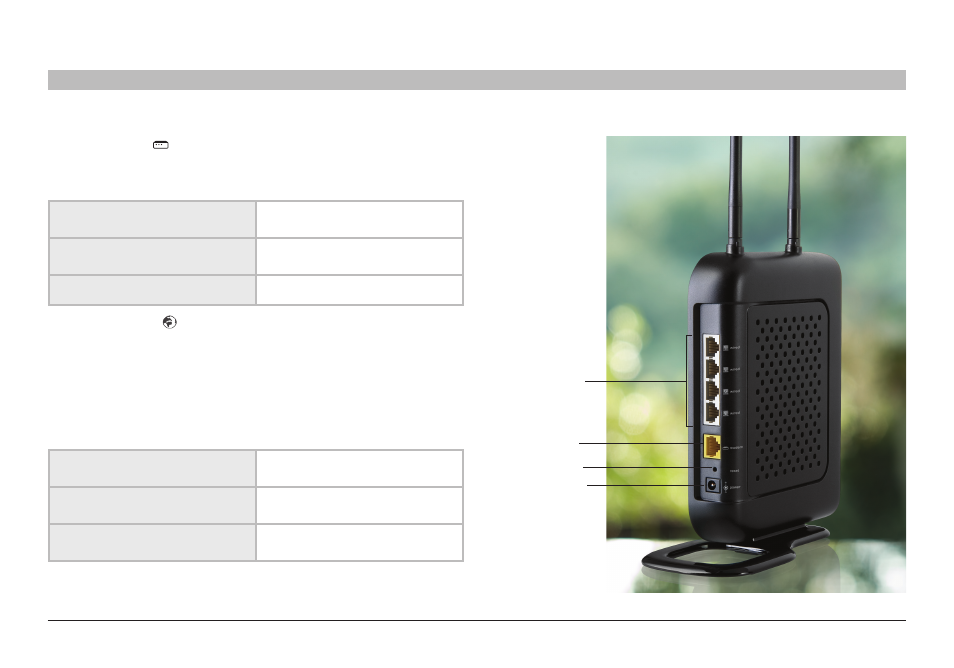

KNoWINg yoUR RoUTeR
f� Modem status
This icon lights in blue to indicate that your modem is connected
properly to the Router. It turns amber when problem is detected.
OFF
Router is NOT connected to
modem
Solid Blue
Router is connected to modem
and functioning properly
Blinking Amber Problem with modem
g� Internet status
This unique icon shows you when the Router is connected to the
Internet. When the light is off, the Router is NOT connected to the
Internet. When the light is blinking amber, the Router is attempting
to connect to the Internet. When the light is solid blue, the Router is
connected to the Internet. When using the “Disconnect after x minutes”
feature, this icon becomes extremely useful in monitoring the status of
your Router’s connection.
OFF
Router is NOT connected to
the Internet
Blinking Amber
Router is attempting to connect
to the Internet
Solid Blue
Router is connected to the
Internet
