RKI Instruments 65-2394RK-CH4-4 User Manual
Page 9
65-2394RK-CH4-4 Combustible Gas Transmitter • 5

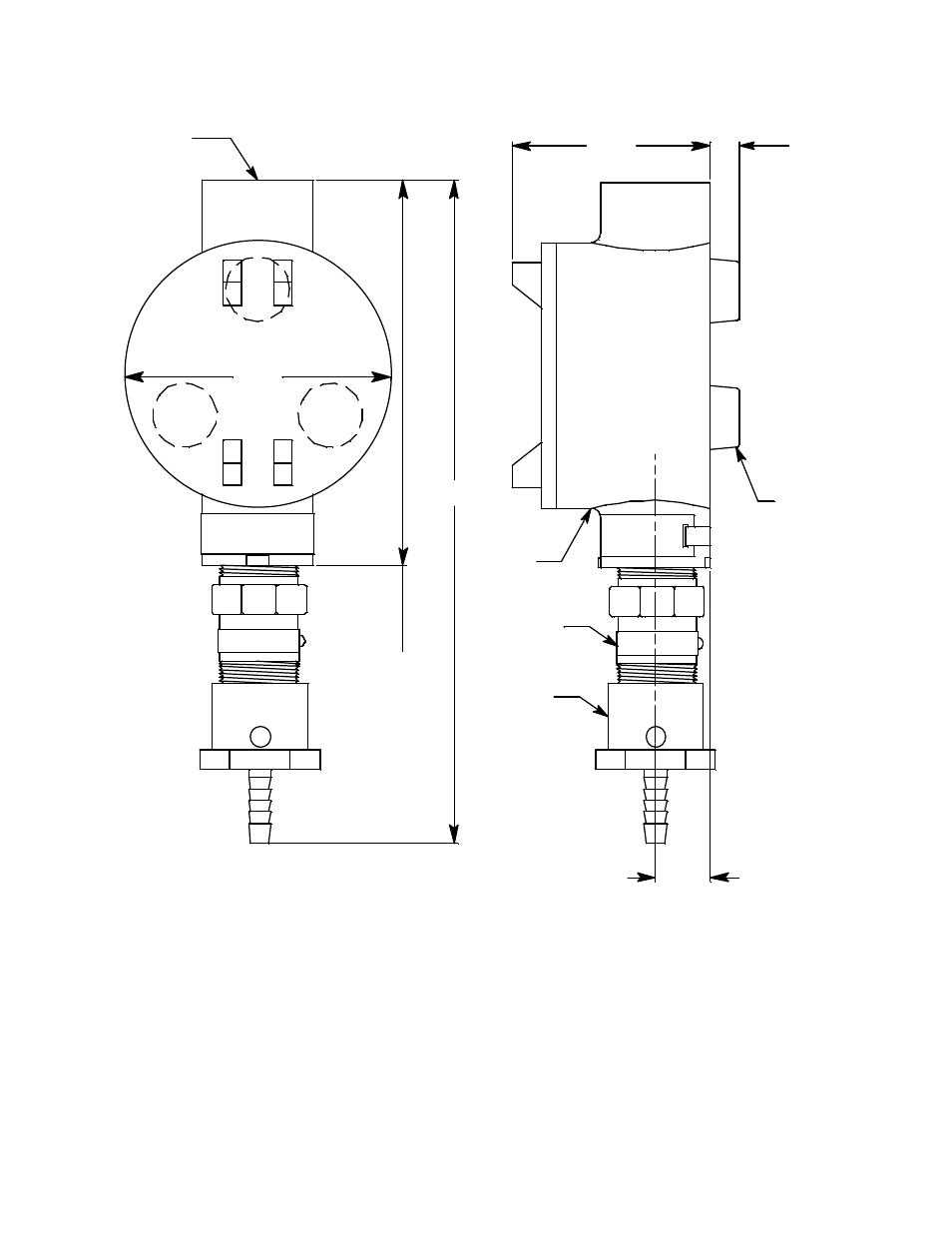

Figure 2: Mounting the Combustible Gas Transmitter
2.
At the monitoring site you select, hang or mount the detector junction box with the
detector facing down (see Figure 2).
3.
Install 3/16 inch I.D. flexible polyurethane tubing to the fitting at the bottom of the
calibration cup/splash guard and route it to an accessible area that is close to the
amplifier junction box. See the “Parts List” on page 18 for available tubing.
.38
2.70
J-Box
Rubber
Spacer,
3X
.75
3/4 NPT
Female
3.65
Calibration
Cup/Splash
Guard
I R LEL
Detector
9.00 M AX
5.25
