Page 14
10 • 35-3010RK-06-02 Sample-Draw Detector
9.
Connect the drain wire to an available chassis ground at the controller. RKI controllers
typically have a ground stud that can be used to ground the cable’s drain wire.

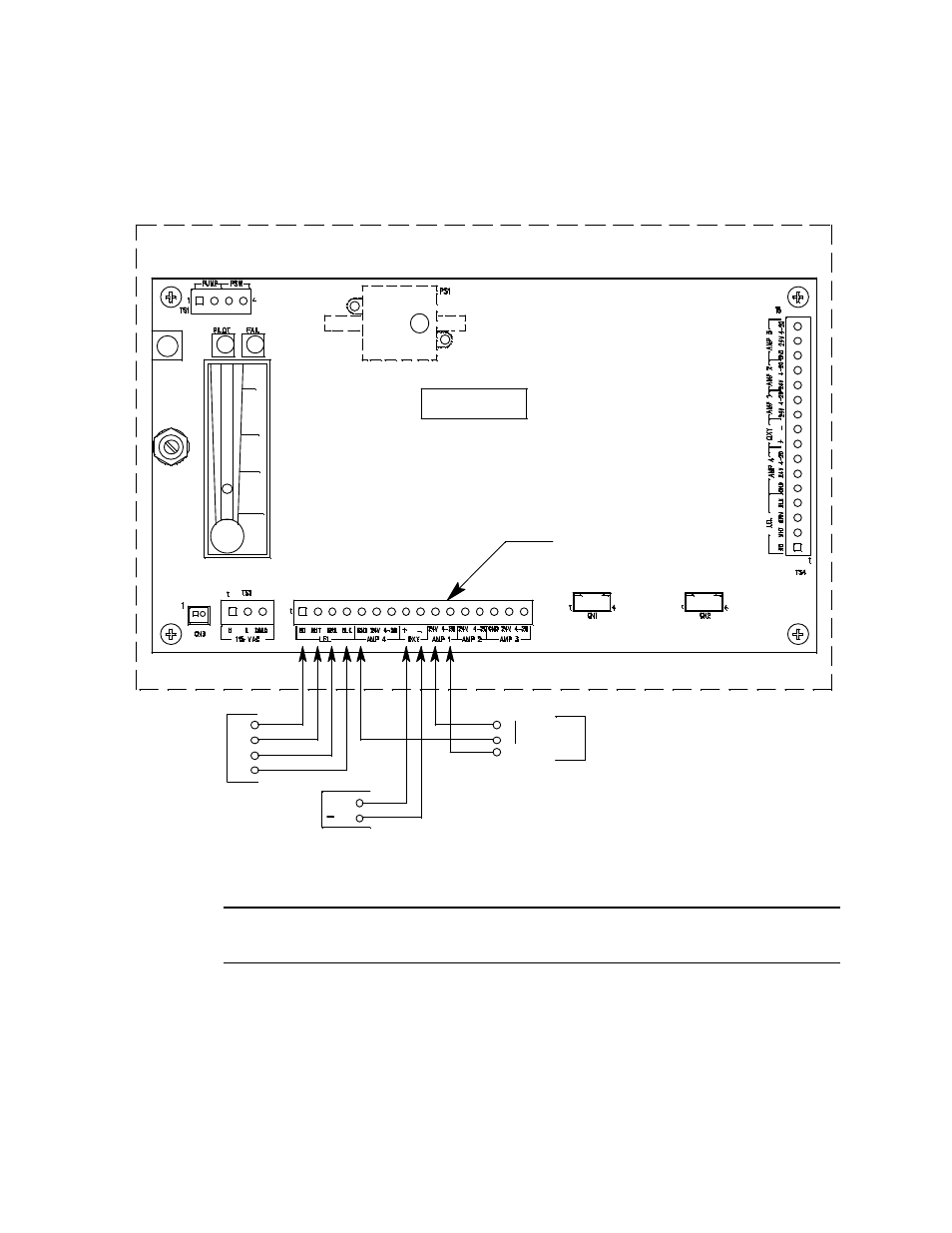

Figure 5: External (Field) Wiring, Sample-Draw Detector
NOTE:
The terminals on RKI controllers used for the CO
2
direct connect configuration
are the same ones used for an LEL detector and are labeled “LEL”.
Interconnect T erm inal Strip
CO
Controller Transmitter
Terminals
24 VDC
Controller Oxygen
Terminals
Controller CO2
Terminals
(see note)
(G)
+ (W )
R
B
G
W
S (4/20 mA)
+
-
Main Circuit Board
Sample Draw Housing
