This section describes the components of the Model GX-2001. These
components include the Model GX-2001’s case, sensors, LCD, control
buttons, printed circuit boards, alarm lights, buzzer/vibrator, battery pack,
belt clip, and battery charger.
Case
The Model GX-2001’s sturdy, high-impact plastic and metal case is radio
frequency (RF) resistant, and is suitable for use in many environmental
conditions, indoors and out. The unit is dust proof and weather resistant.
On the front of the case is a digital LCD, which shows gas concentrations,
battery level, time, and other readings including STEL and peak gas levels.
Below the LCD are three glow in the dark control buttons. The first button
on the left is labeled MODE/POWER. The other buttons are labeled DISP
and AIR, respectively.
Sensor Cover Retainer
Sensor Retainer
MOD E D ISP AI R
HC
02
RKI
GX-2001
LCD
H2S
CO
Belt
Clip
Battery Charging
Contacts
IR Port
Control Buttons
POWER
Sensor Diffusion
Port, 4X
Alarm Lights

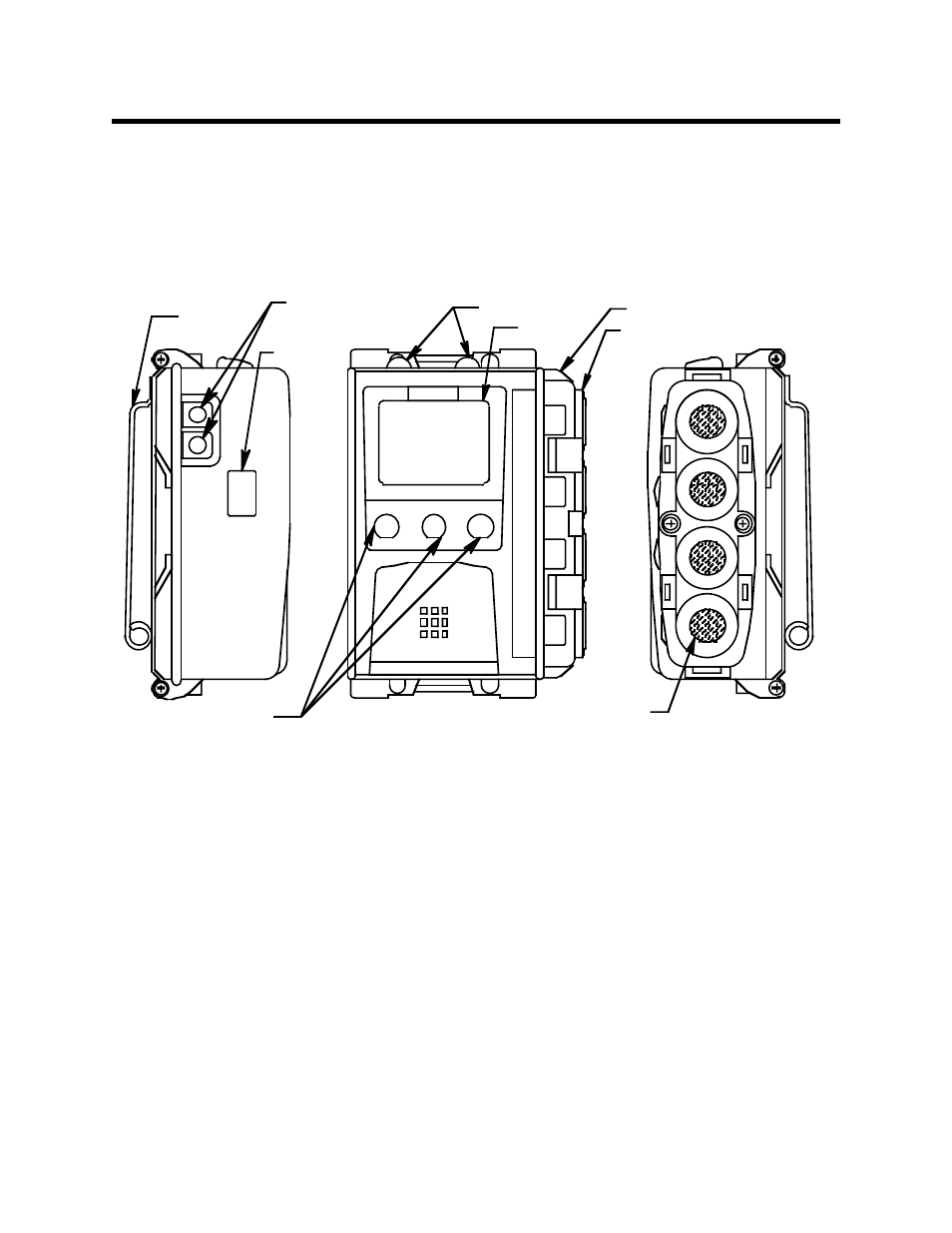

Figure 1: Components of the Model GX-2001
