REAR AXLES AND WHEELS
Form 147398 25 Revision J

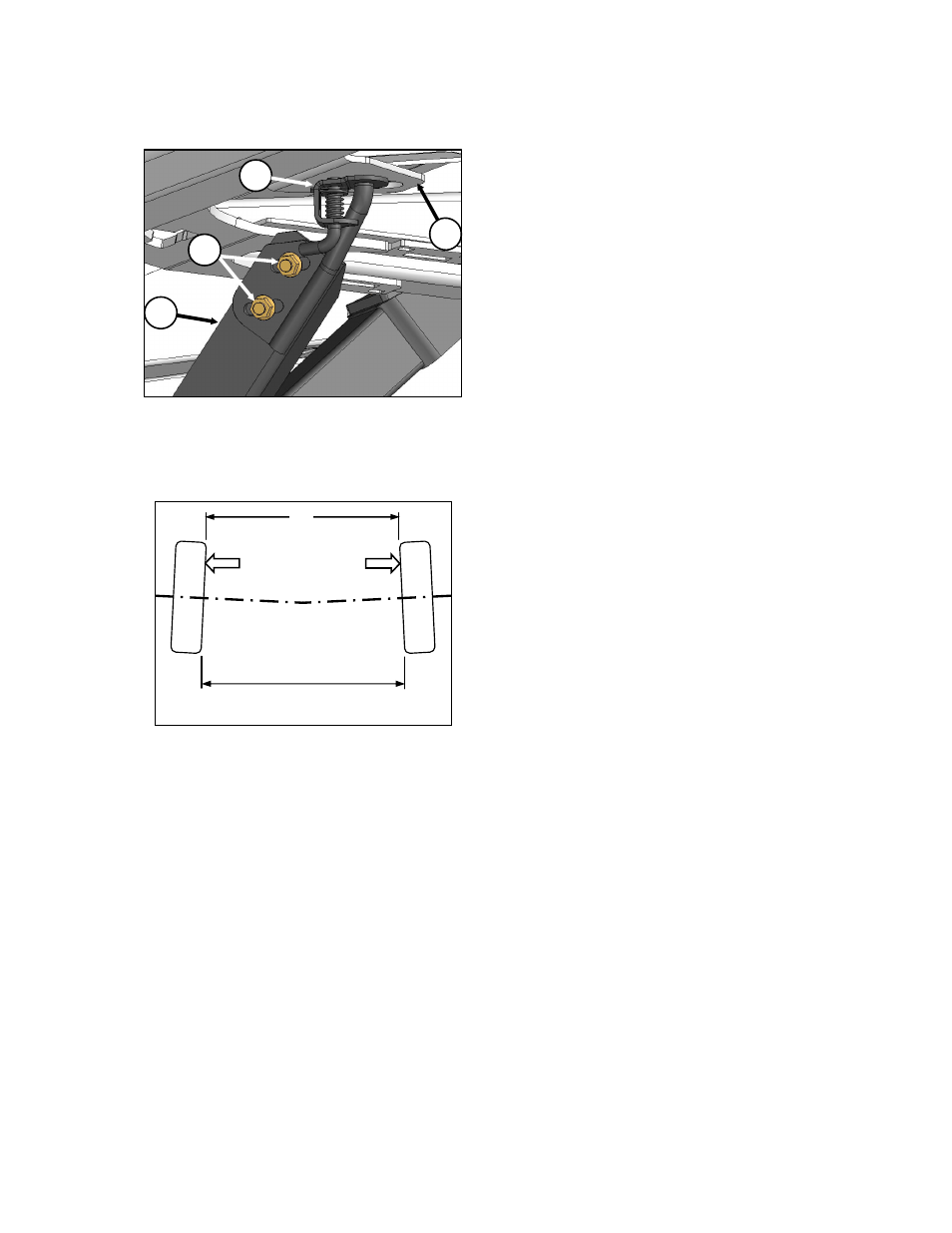

STEP 10. ADJUST AXLE BRACE
a. Loosen bolts (A) on latch brace (B).
b. Attach latch mechanism (C) to cutterbar.
c. Adjust latch mechanism parallel to attachment
plate (D) and tighten hardware.
d. Check that wheels have appropriate toe-in. See
illustration. Loosen bolts (A) and adjust as
required. Tighten bolts.
e. Latch mechanism (C) should easily attach and
detach to plate (D) when correctly adjusted.
B
A
C
D
X + .12-.6 in (3-15 mm)
(measured with tires on ground)
X
TAKE UP SLACK
BETWEEN WHEELS
