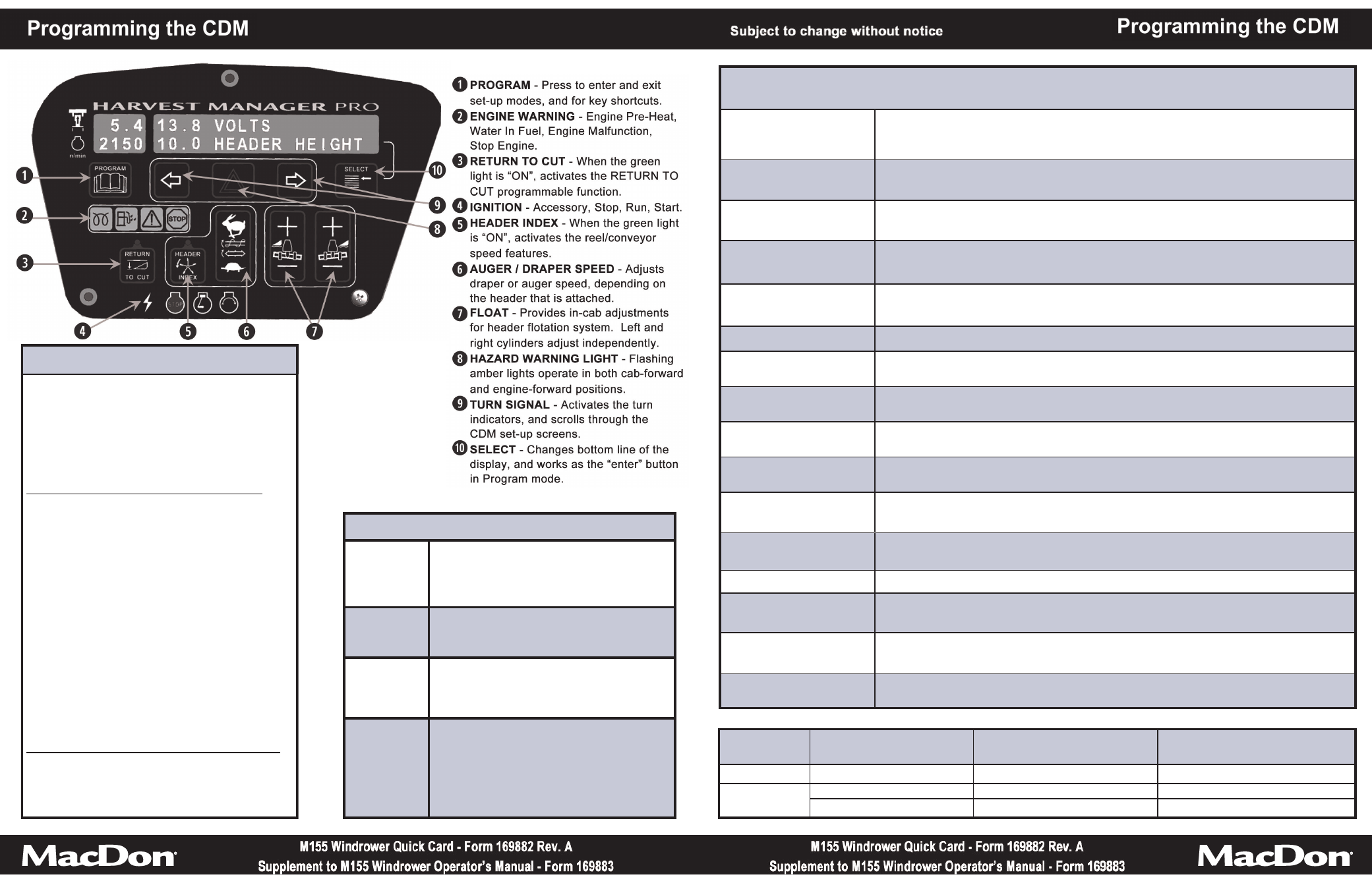

CDM PROGRAMMING MODE: TRACTOR SETUP
(See M155 Operator’s Manual for complete instructions and detailed information)
SET KNIFE SPEED
SPM
Adjusts knife speed on draper and auger headers.
Every header size and type of knife drive will have a different range for the knife speed.
Refer your header Quick Card for optimal settings.
KNIFE / DISC OVERLOAD
SPD SPM/RPM
KNIFE OVERLOAD SPEED (Auger / Draper) to be set at 75% of desired knife speed.
DISC OVERLOAD SPEED (Rotary) should be set to 1300 rpm.
OVERLOAD PRESSURE
PSI/BAR
Calibration of overload sensor (reel / draper / knife / disc system).
See Overload Recommendations Chart below.
HEADER INDEX MODE
Reel+Drapers OR Reel Only
Auger and Draper headers only.
References and operates „Reel Only‟ or „Reel and Drapers‟ in relation to ground speed.
RETURN TO CUT MODE
Height+Tilt OR Height Only
Set functions to be controlled by RETURN TO CUT (RTC) mode.
AUTO RAISE
Sets header-up height in RETURN TO CUT (RTC) mode. Range is 4.0 (min) to 10.0 (max).
DWA INSTALLED
YES/NO?
Activates electrical controls for Double Windrow Attachment when installed.
SWAP DWA CONTROLS
NO/YES?
If “YES” selected, REEL FORE-AFT and DWA RAISE / LOWER switches will swap functions.
DWA AUTO UP/DOWN
YES/NO?
Enables the express UP and DOWN features in RETURN TO CUT (RTC) mode.
HEADER CUT WIDTH
##.# FT/M
Set cut width according to operating width. Calibration of acre counter.
Header ID displayed on CDM at top right.
HAY CONDITIONER
YES/NO?
Draper Header only. Activates hydraulics for conditioner and feed deck drive systems.
AUGER HDR REEL SPD
RPM or MPH/KMH
Selection will appear only with an auger header attached.
Allows REEL SPEED to display in RPM or MPH / KPH.
SET TIRE SIZE
Select installed tire size, for ground speed and acre counter calibration.
SET ENGINE ISC RPM
NO/YES?
ENGINE INTERMEDIATE SPEED CONTROL. Engine RPM can be limited to a specified
value while header is engaged. Scroll to desired RPM value. Use HAZARD key to set.
SET CONTROL LOCKS
NO/YES?
Allows header functions to be locked from Operator control.
(for example: Locking reel speed and/or reel fore-aft controls from Operator.)
VIEW CONTROL LOCKS
NO/YES?
Allows Operator to view control lock status, and engine hours when status was established.
(for example: REEL FORE-AFT - 224.5 HRS LOCKED).
TIPS AND SHORTCUTS
Enter
Programming
Mode
Ignition ON.
Press and hold PROGRAM and SELECT at
the same time, until the CDM display enters
Programming mode.
Exit
Programming
Mode
Press PROGRAM.
Change
Language to
English
Ignition OFF.
Press and hold HEADER INDEX and
PROGRAM and SELECT.
Clear
Sub-Acres
Cab-Forward position.
Ignition ON.
Press SELECT until SUB-ACRES is viewed
on the bottom line of the display.
Press and hold PROGRAM until SUB-ACRES
changes to "0.0".
HEADER
MODEL
APPLICATION / SYSTEM
SUGGESTED OVERLOAD
WARNING SETTING psi (kPa)
WINDROWER PRESSURE
RELIEF SETTING psi (kPa)
R Series
Disc Pressure
4000 (27579)
4200 (28958)
Reel / Draper Pressure
3000 (20684)
3200 (22063)
A Series
D Series
Knife / Conditioner Pressure
4000 (27579)
4200 (28958)
Enhanced reel/conveyor speed controls may be
desirable in variable crop and terrain conditions.
Allows the reel and conveyor to be driven by
reference to ground speed, so that header systems
will speed up and slow down as ground speed
changes.
Operation of Header Index for REEL SPEED:
(A and D Series)
1. With all bystanders clear, start windrower, and
engage the header.
2. While stationary, with the GSL in PARK, use the
REEL SPEED control switch to set a „Minimum
Reel Speed‟.
3. When operating at grounds speeds faster than
the Minimum Reel Speed + Header Index value,
REEL SPEED display will change to
REEL INDEX. Using the GSL REEL SPEED
switch, Header Index can be adjusted.
4. Reel speed will be equal to the greater of:
‘Ground Speed + Index Value’ OR
‘Minimum Reel Speed’.
Operation of Header Index for DRAPER SPEED:
(D Series Only)
Follow instructions above, using the CDM AUGER/
DRAPER speed control, rather than the GSL REEL
SPEED switch.
HEADER INDEX MODE
