About Legion Meter Menus
Five different menus may be displayed on Legion Meter’s OLED display. These menus include Voltage, Current,
Power, Milliwatt Hour, and Charge Accelerator mode selection.
Voltage, Current, and Power
The Voltage, Current, and Power modes allow you to use Legion Meter as a multimeter for any USB port.
Storage Capacity
The Milliwatt Hour mode is useful for analyzing the storage capacity of batteries. To reset the mWh counter,
press and hold the user interface button while in the Milliwatt Hour mode until the counter resets to zero.
Charge Accelerator Mode

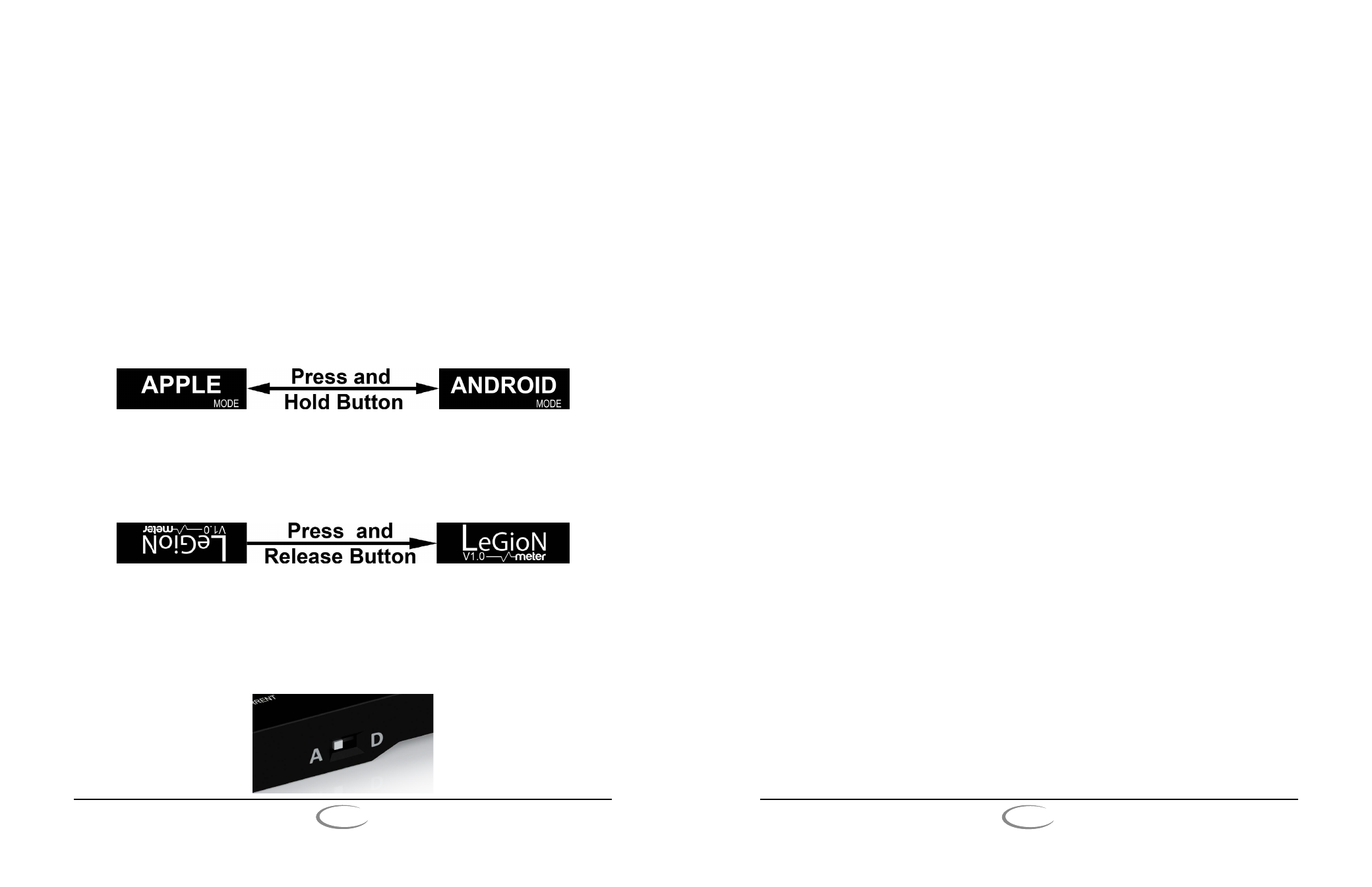

The Charge Accelerator mode has two modes of operation: Apple mode and Android mode. This user selectable
mode dynamically converts any USB port to optimize the charge speed by signaling your mobile device to safely
draw the maximum amount of charge possible. To switch modes, press and hold the user interface button while
in the charge accelerator mode until the screen changes, as shown below.
NOTE: Switch must be in charge accelerator (“A”) position for Charge Accelerator mode to be effective.
Display Oreintation
In some cases, Legion Meter’s display may appear upside down to the user. If you would like to change the
orientation of the display, press the user interface button while on the “Legion Meter” screen that appears when
Legion Meter is initially plugged into a USB port, as shown below.
Data Pass Through Switch
When the integrated data pass through slide switch (shown below) is in Charge Accelerated mode (“A” position),
the USB port’s data lines (D+ and D-) are physically disconnected . This prevents any data from being transferred
or synced, providing ultimate safety for your data while accelerating your charge speed at the same time. Howev-
er, if you would like to enable data pass through on your Legion Meter, simply move the slide switch to Data Pass
Through mode (“D” position).
4
Product Care and Maintenence
Storage
Safety
Your Legion Meter is a product of superior design and should be treated with care. The guidelines below will
allow you to enjoy this product for years to come.
Legion Meter should be stored at room temperature in cool or shaded areas, ideally between 10°C (50°F) to 25°C
(77°F).
PLX Devices, Inc. DOES NOT recommend disassembling this product on your own accord. Disassembly of
the product will result in void of warranty. If you believe your unit is damaged or needs to be replaced, contact
technical support at www.plxdevices.com for inspection and replacement information. Only qualified personnel
should service this product. Faulty service may be dangerous and may invalidate any warranty applicable to the
device.
Exposure to Liquid or Moisture
Do not expose this product to liquid or moisture. Liquids can get into and affect the internal components of the
product, and moisture can lead to corrosion. This may result in product malfunction, fire, and/or electric shock.
Even if Legion Meter appears dry and operating normally after exposure, corrosion can still occur and pose a
safety hazard.
Exposure to Heat
Do not operate or store this product in or near a heat source, or under direct sunlight for extended periods of
time. Excessive heat can damage the plastic enclosures. If your Legion Meter is exposed to liquid or moisture, do
not attempt to dry your Legion Meter with a heat source, such as a microwave oven or hair dryer.
Disposal
For those in the United States, please visit the following website for more information on proper electronics dis-
posal laws and guidelines:
http://www.electronicsrecycling.org/public/
Be aware that different states might have different laws regarding proper disposal of electronics.
