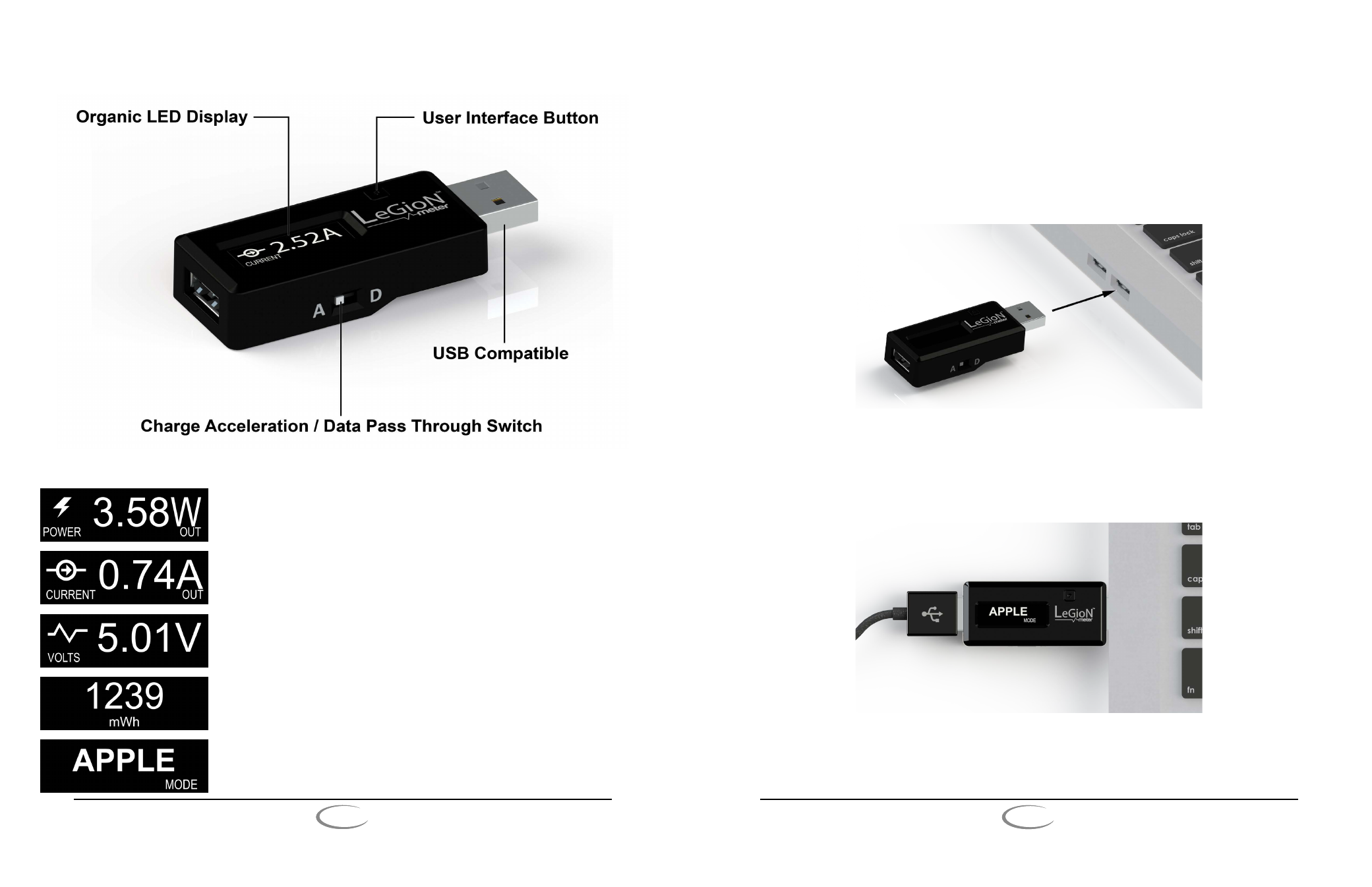

Overview
Intelligent OLED Display
Shows the power in Watts your USB port is currently delivering to your
device.
Shows the current in Amps your USB port is currently delivering to your
device.
Shows the voltage of your USB port.
Resettable milliwatt-hours counter used to diagnose battery storage capac-
ity.
Charge accelerator mode allows you to optimize the charge speed of any
USB port.
3
Operating Legion Meter
Charging Your Device with Legion Meter
1. Insert the USB Male A end of Legion Meter into any USB power source and make sure the data pass
through slide switch is in the “A” position to enable accelerated charging.
2. Press the interface button until the Mode screen is accessed and select your charge accelerator mode.
NOTE: To switch between “Apple” mode and “Android” mode, press and hold the interface button.
3. Plug in any USB charging cable to the USB Female A end of Legion Meter.
NOTE: Connecting the cable improperly may cause serious damage to the device. Any damage caused by
misuse is not covered by the warranty.
4. Insert the other end of your cable into the charging port of the device you want to charge.
Toggling Menus
To toggle through the menus, press and release the user interface button located to the right of the OLED display.
