Features
■
Automatic full-extend and -retract motor power cut-off
■
Full-extend and -retract flags
■
Deployed length indicator
■
Minimal magnetic materials
■
Removable RF test enclosure with connector
■
CFE pre-amp attachment

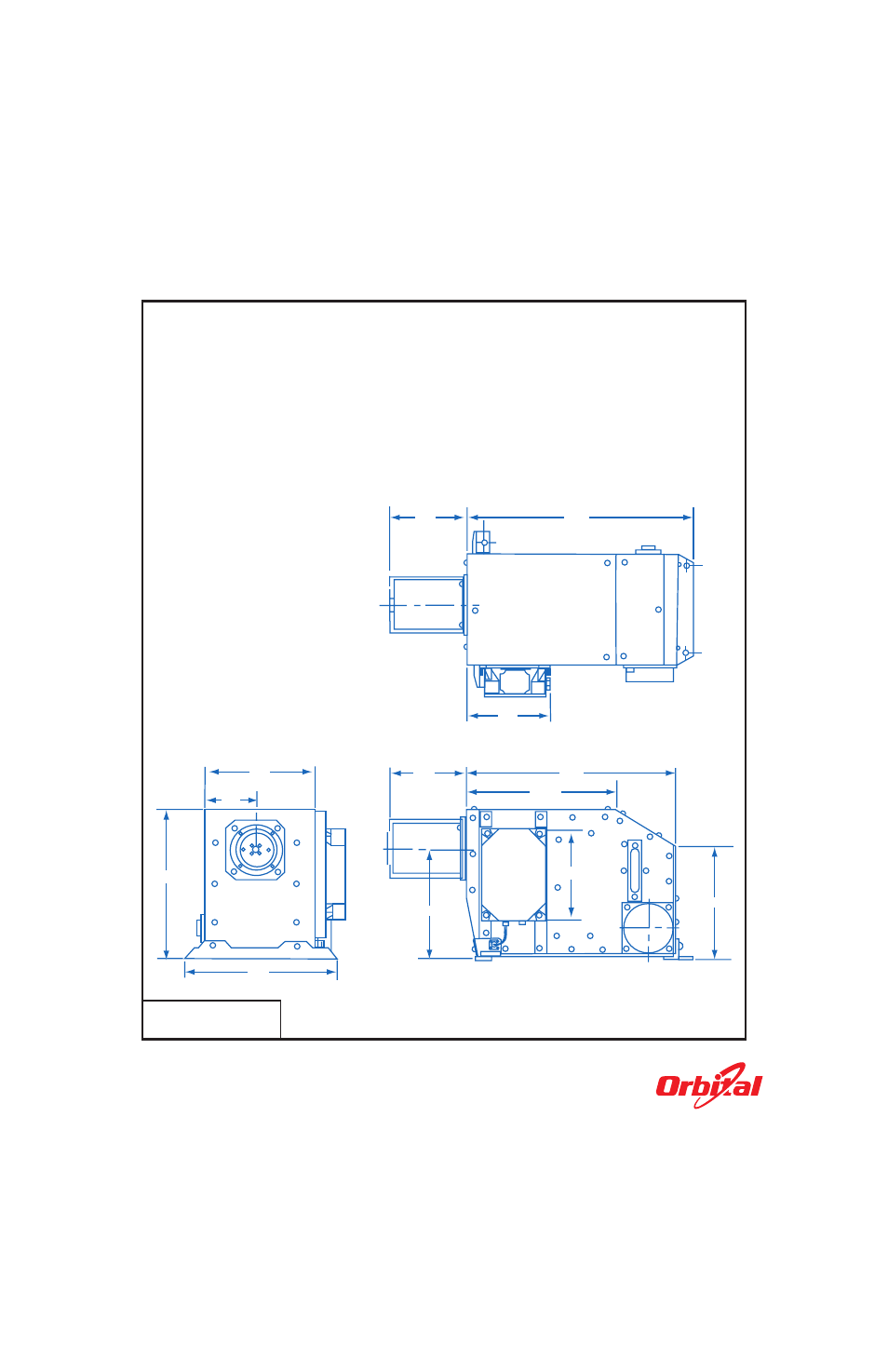

Wire Antenna Deployment Assembly
Model 9842
3.86
11.10
4.05
5.25
4.410
5.44
10.31
7.33
3.86
7.50
7.21
5.50
2.50
All dimensions are in inches
unless otherwise noted
