Features – Orbital Hingelock TEE Deployer Model 5E9 User Manual
Page 2
Orbital Technical Services Division
5010 Herzel Place
Beltsville, MD 20705
Phone: (301) 902-1152 FAX: (301) 931-0396
www.orbital.com
7500 Greenway Ctr. Dr.,
Ste. 700 Greenbelt, MD 20770
Phone: (301) 220-5600 FAX: (301) 474-2600

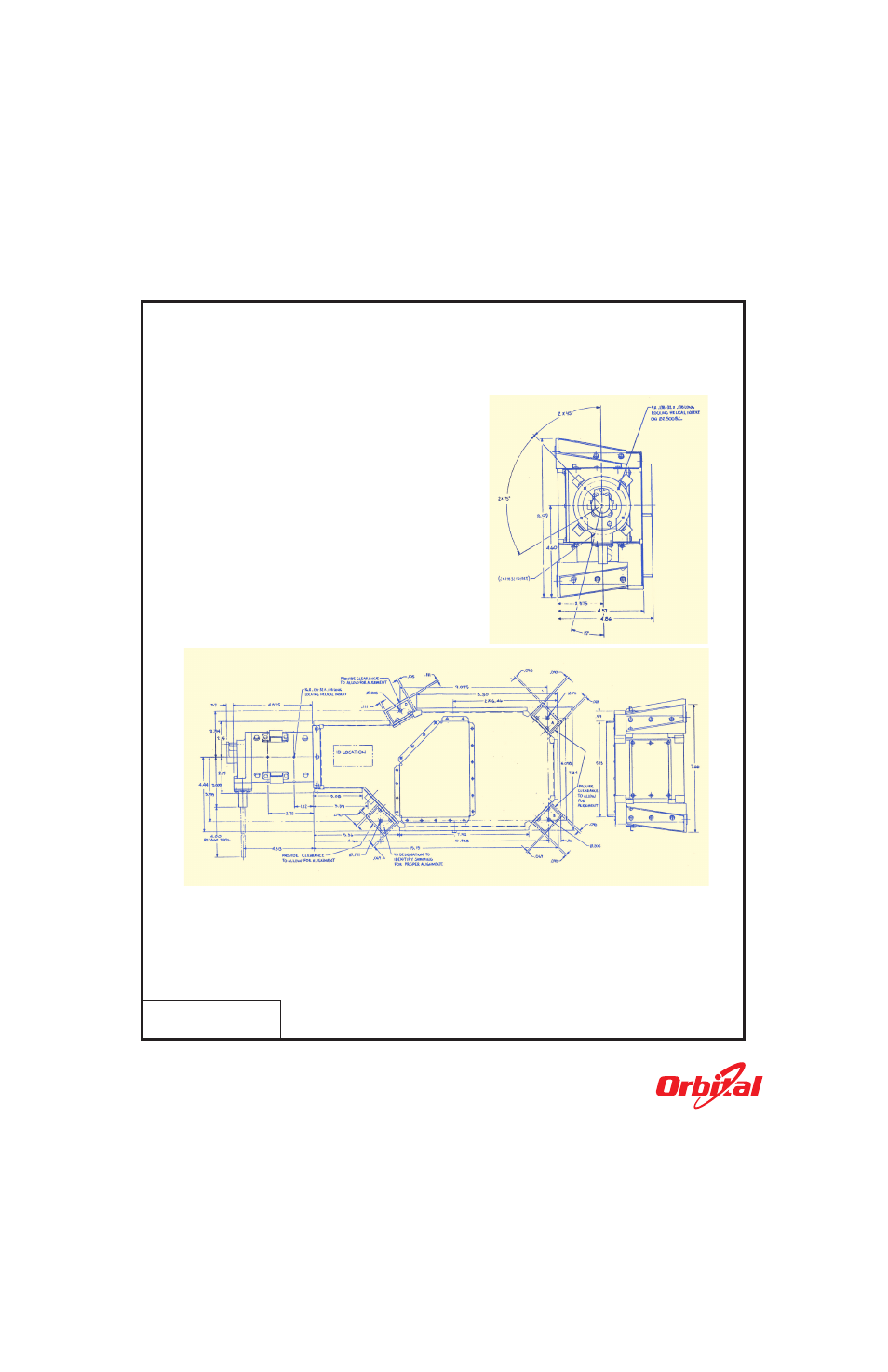

All dimensions are in inches
unless otherwise noted
Features
■
Automatic full-extended and -retract motor power cut-off
■
Full-extend and -retract flags
■
Minimal magnetic materials
■
Side mounting configuration is shown
■
Deployed TEE alignment to within 0.1 degree
Hingelock TEE Deployer
Model 5E9
