Features – Orbital Hingelock TEE Deployer Model 358 User Manual
Page 2
Orbital Technical Services Division
5010 Herzel Place
Beltsville, MD 20705
Phone: (301) 902-1152 FAX: (301) 931-0396
www.orbital.com
7500 Greenway Ctr. Dr.,
Ste. 700 Greenbelt, MD 20770
Phone: (301) 220-5600 FAX: (301) 474-2600
Features
■
Automatic full-extend and -retract
motor power cut-off
■
Full-extend and -retract flags
■
Deployed length indicator
■
Minimal magnetic materials
■
Optional TEE cut-off device
■

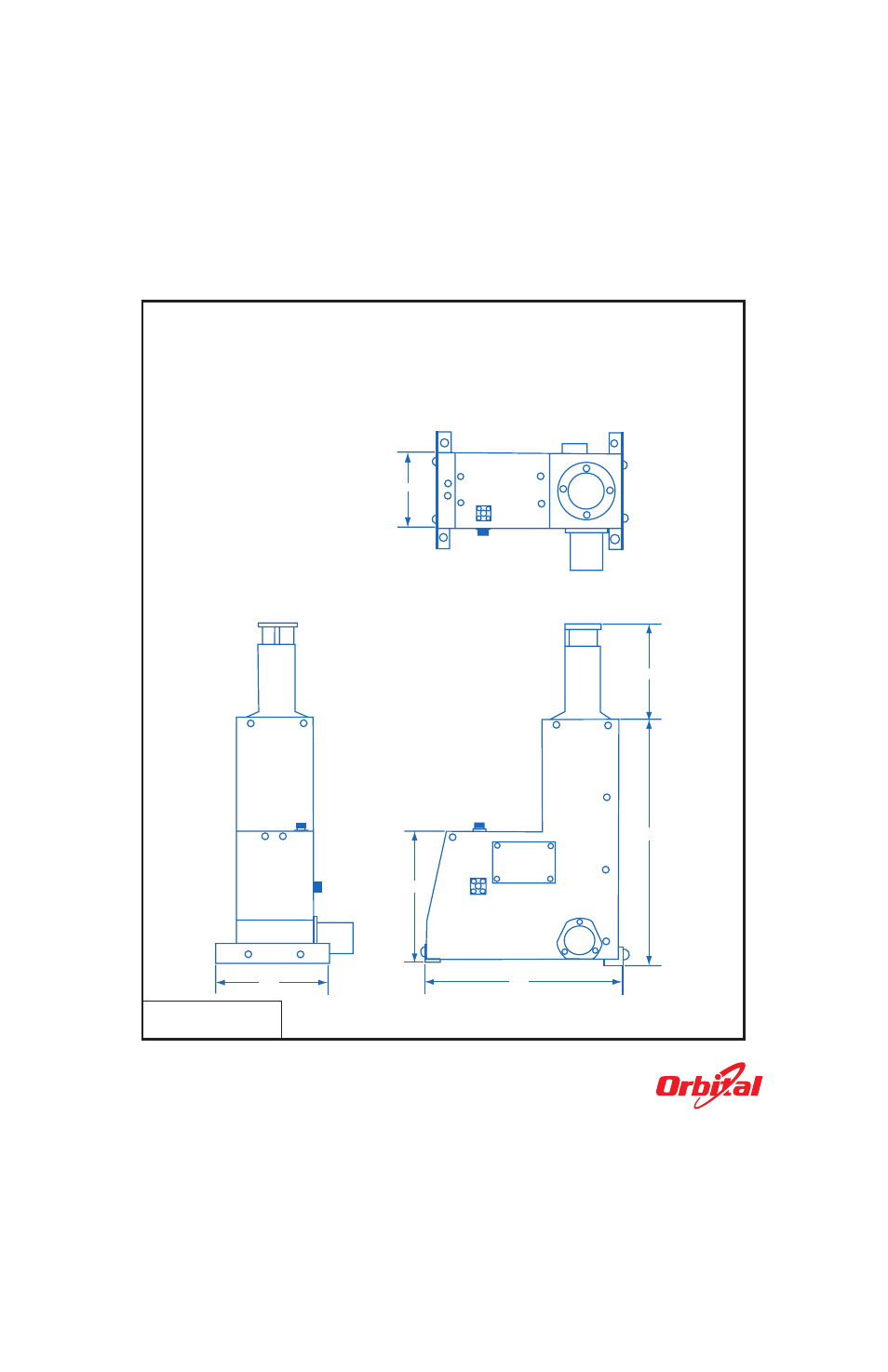

Rear-mounting configuration is shown
Hingelock TEE Deployer
Model 358
4.00
5.76
7.00
9.75
13.00
4.85
All dimensions are in inches
unless otherwise noted
