LEOStar
™
-3 Bus
Spacecraft Features
Spacecraft Mass: 1,169 kg (typical)
Propellant Load: 353 kg (typical)
Launch Vehicle
Compatibility:
Minotaur IV, Antares, Delta II, Delta IV, Falcon 9, Atlas V
Design Life: 7-10 years
Orbit Options: LEO, interplanetary
Total Radiation
Dose:
25 krad
Delivery of
Spacecraft Bus
Months after
Authorization
to Proceed (ATP):
21-36 months
Total Schedule,
Integrated Satellite
Months from ATP
to Launch:
36-48 months
Attitude Control Subsystem
Stabilization: 3-axis
Pointing Control:
120 arcsec, 1 σ
Pointing Knowledge: <5 arcsec
Timing Accuracy: 40 µs
Orbit Knowledge: 33 m, 1 σ
Max Maneuver Rate: 0.125 ° /sec
Propulsion: Blowdown monopropellant hydrazine
Communications
Payload Data
Downlink:
2 Mbps S-band (standard), up to 740 Mbps X-band
(optional), 320 Mbps Ka-band
Command Uplink: S-band
Space-to-Space
Mission Data:
Optional Laser (LCT)
Payload Accomodation
Instrument Mass:
up to 4,000 kg
Instrument Orbit
Average Power:
775 W
Onboard Instrument
Data Storage:
160 Gb
• Onboard solid state mission data
storage available to 3100 Gb
• Mission wide band data downlink on
X or Ku-band; rates to 740 Mbps
• Commercial uplink command
encryption available
• Precision attitude knowledge, control,
and jitter performance
• Highly agile Earth and space pointing;
slew rates to 3 ° /sec
• Extremely low EM emissions to
accommodate sensitive instruments
• Various thermal control options,
including instrument isolation
• Propulsion sizing and propellant
capacity options, including none
• Configuration options support other
orbits and special missions
• On-orbit operations using Orbital's
Mission Operations Centers
FACTS AT A GLANCE

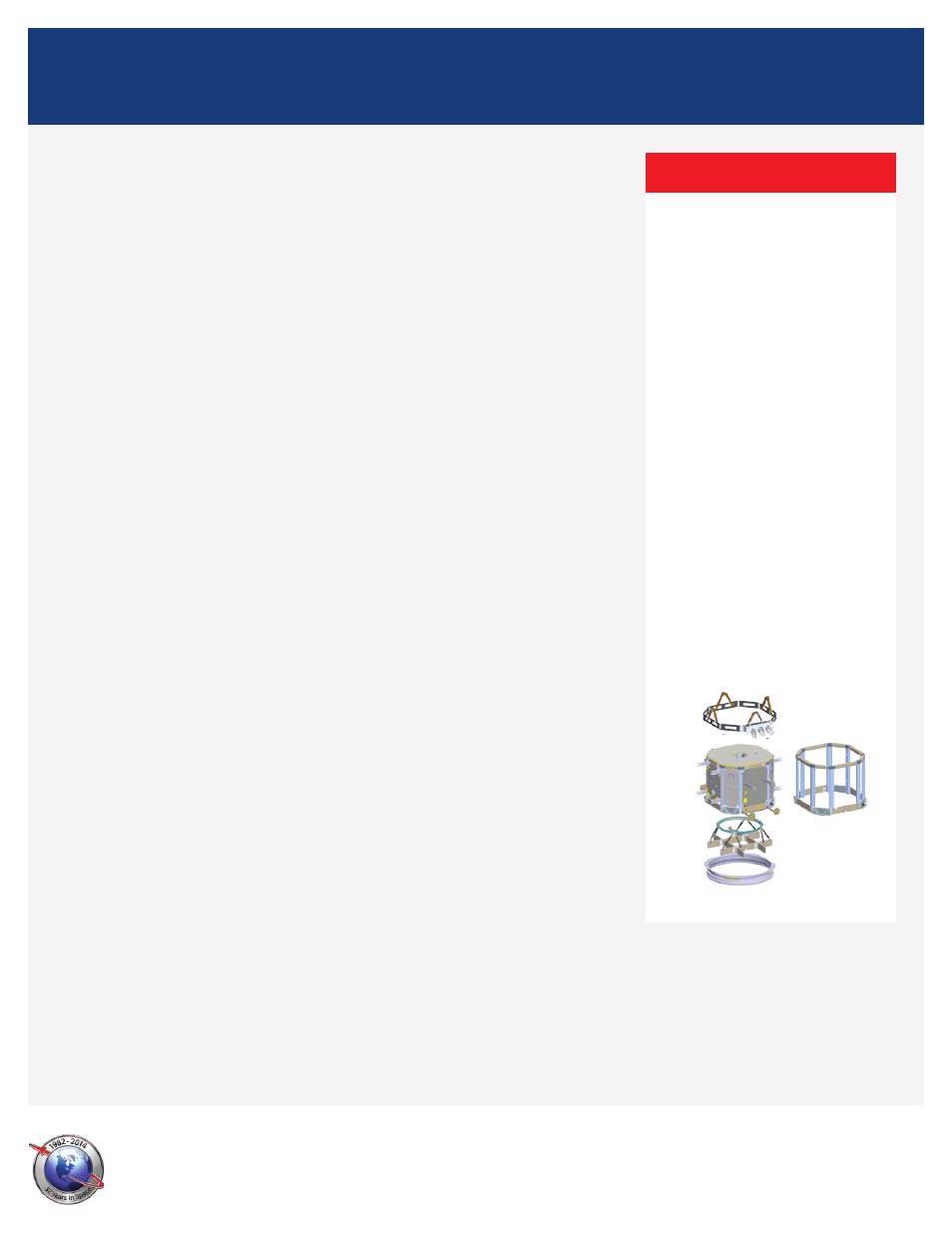

LEOStar-3 Structure
Payload Flexure
Interface and GN&C
Optical Bench, Nominal
Instrument Volume:
1.8 x 1.8 x 1.4 m
Primary
and
Secondary
Structure
Frame Assembly
Propulsion Subsystem
Structure
Launch Vehicle
Adapter
