GEOStar

Hosted Payloads

Specifications

Core Features

Payload Mass Capability: < 150 kg (negotiable based on size of

primary payload)

Avail. Payload Vol.:

Up to 165 x 63 x 101 cm (negotiable)

Orbit: Geosynchronous
Launch Vehicle:

Ariane, Soyuz, Land Launch, Proton, and

similar
Typical Mission Life:

1-4 years

Program Schedule:

24 months from ATP to launch

Structure

Construction of
Payload Platform:

Composite/aluminum facesheets over

aluminum honeycomb core

Thermal Control:

Passive; payload may elect its own active

control
Power Subsystem Available
Payload Power:

500 W-1,000 W BOL (negotiable)

Bus Voltage:

+36 VDC (nominal)

Attitude Control Subsystem

Stability Mode:

3-axis; zero momentum

Pointing Control:

0.01

°

granularity in maintaining pointing

Pointing Knowledge:

<0.03

°

During nominal operations

(standard Earth sensor/Sun sensor suite)

Rate/Stability:

Provided upon request; dependent upon

time increment

Command and Data Handling Subsystem

Payload Interface:

Independent via Orbital's HPI Modem

interface or as Remote Terminal on 1553

bus (dependent upon data rate)

Radiation Tolerance:

100 Krad for Spacecraft (15 years at
GEO) HPI Modem at 20 Krad (1 to 4
years at GEO)

RF Uplink:

Up to 2 Mbps (based on ground station
parameters)

Data Downlink:

Up to 75 Mbps (based on ground station

parameters)

Hosted Payload Accommodation

Depending on the design of the host spacecraft, a wide variety of
hosted payload configurations can be supported. The payload is
mounted on the nadir-facing deck providing excellent field of view
for Earth-viewing instruments and for thermal radiators. Non-
Earth-staring payloads can be accommodated on the nadir deck
as well by canting the boresight of the instrument at an angle.
Deep-space viewing instruments may also be mounted on the
zenith end of the spacecraft using a modified antenna support
bracket.

The payload panel structure consists of aluminum face-sheets
over an aluminum honeycomb core with embedded heat pipes
and conductors, providing stability and thermal control. Increased
platform stability for specific missions can be achieved by using
a mission-specific platform with quasi-kinematic mounts. A
combination of an inertial reference unit, earth sensor assembly,
and sun sensors are used to offer accurate attitude knowledge
needed to meet 0.1 degree pointing accuracy or better. Downlink
data rates of up to 75 Mbps can be provided (based on ground
station parameters). No solid state recorder is needed because,
during nominal operation, the spacecraft continually transmits
data to a known location on Earth with a pre-specified minimum
effective isotropic radiated potential.

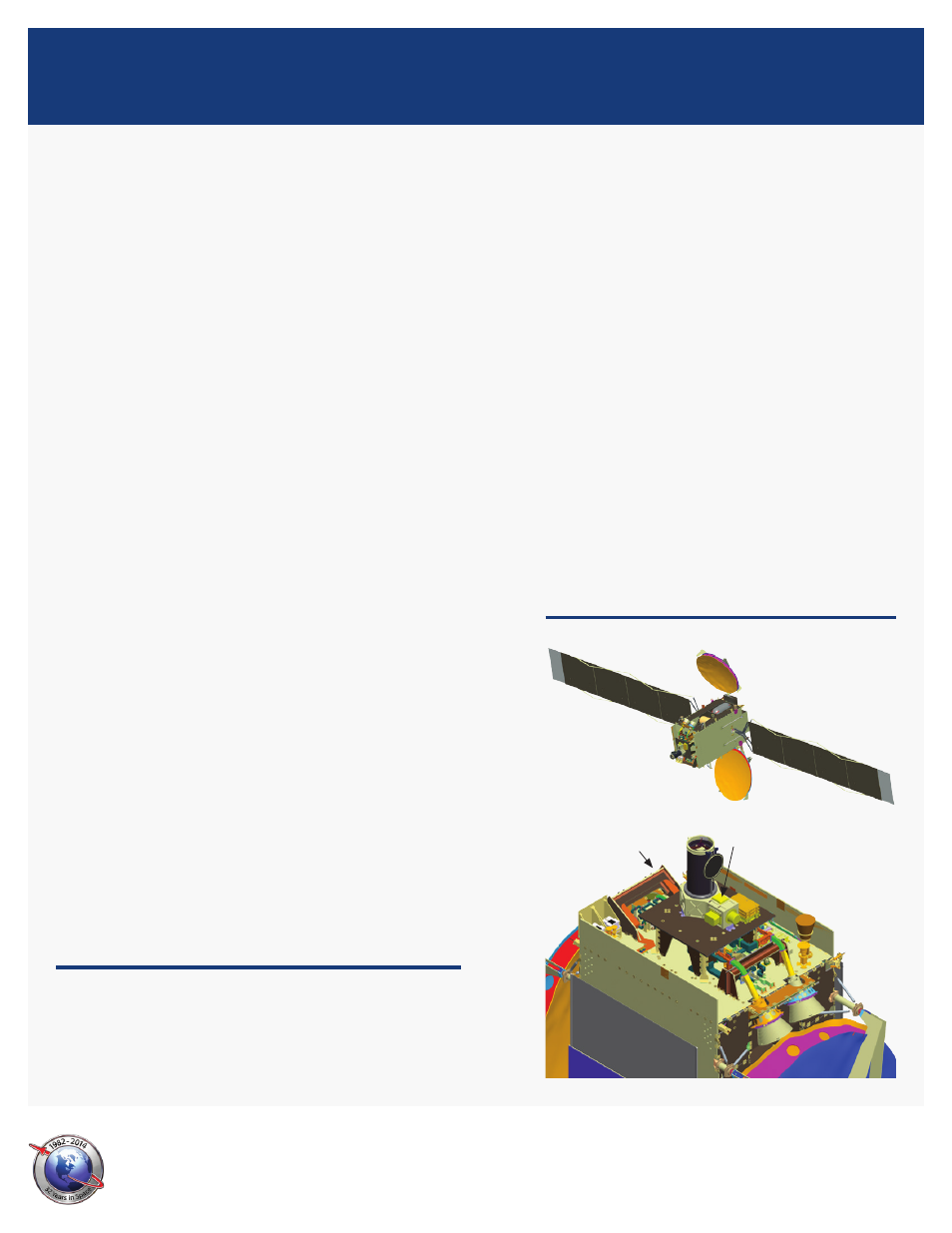

Hosted Earth Imager
Payload (Example)

A close-up view of the notional

instrument and associated

Hosted Payload

Electronics

An Earth-staring remote
sensing hosted payload
on the nadir deck of a
GEOStar-2 bus
