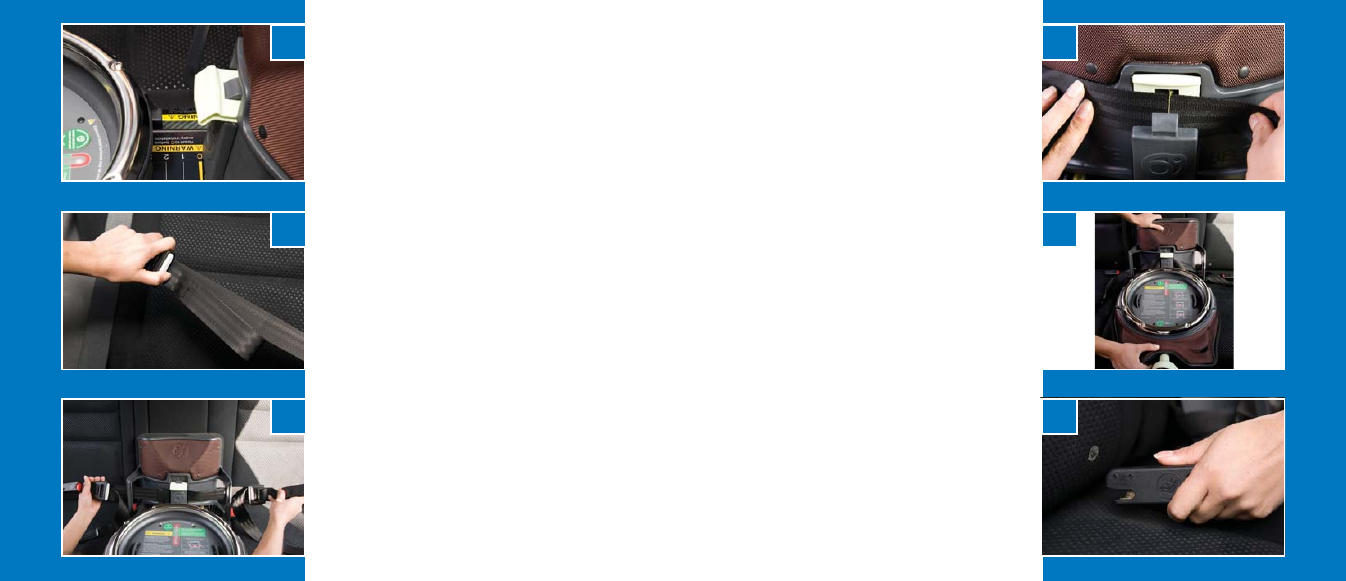

1. The Orbit Base should be installed
without your Orbit carseat docked. If
attached, fi rst remove the Orbit carseat.
2. Check that the Base StrongArm is reset
to zero (Photo A). If not, then turn the
StrongArm Knob counterclockwise until
the zero is visible.
3. Free the LATCH Connectors from their
storage locations by pressing the red
buttons and pulling them upwards at
the same time. For ease of installation,
extend the LATCH Belt to its maximum
length by pressing the grey tab on the
adjuster and pulling on the belt (Photo
B).
4. Position the LATCH Belt through the
Belt Guides as shown (Photo C).
5. The LATCH Belt must be secured in
place by the Lock-off Clamp. If it is
not:
- Center the colored stitch line of
the LATCH Belt in the middle of
the Lock-Off Clamp (Photo D)
- Close the Lock-Off Clamp and
secure it fi rmly upon the LATCH
Belt by fl ipping the top closure
down into place.
6. Place the Base in the vehicle seat
(Photo E), making sure the areas under
and behind the Base are clear of
obstructions.
7. If the vehicle seat back is adjustable,
lock the vehicle seat back into the
upright position.
8. Attach both LATCH Connectors to their
corresponding lower LATCH anchors.
With the LATCH Connector oriented as
shown (Photo F), push it straight onto
the metal bar until you hear and feel a
CLICK.
When using the LATCH system, the
Orbit Base uses only the lower anchors.
Installing the Base:
With LATCH System
Installing Y
our Orbit Base
Installing Y
our Orbit Base
A
B
C
D
E
F
