components

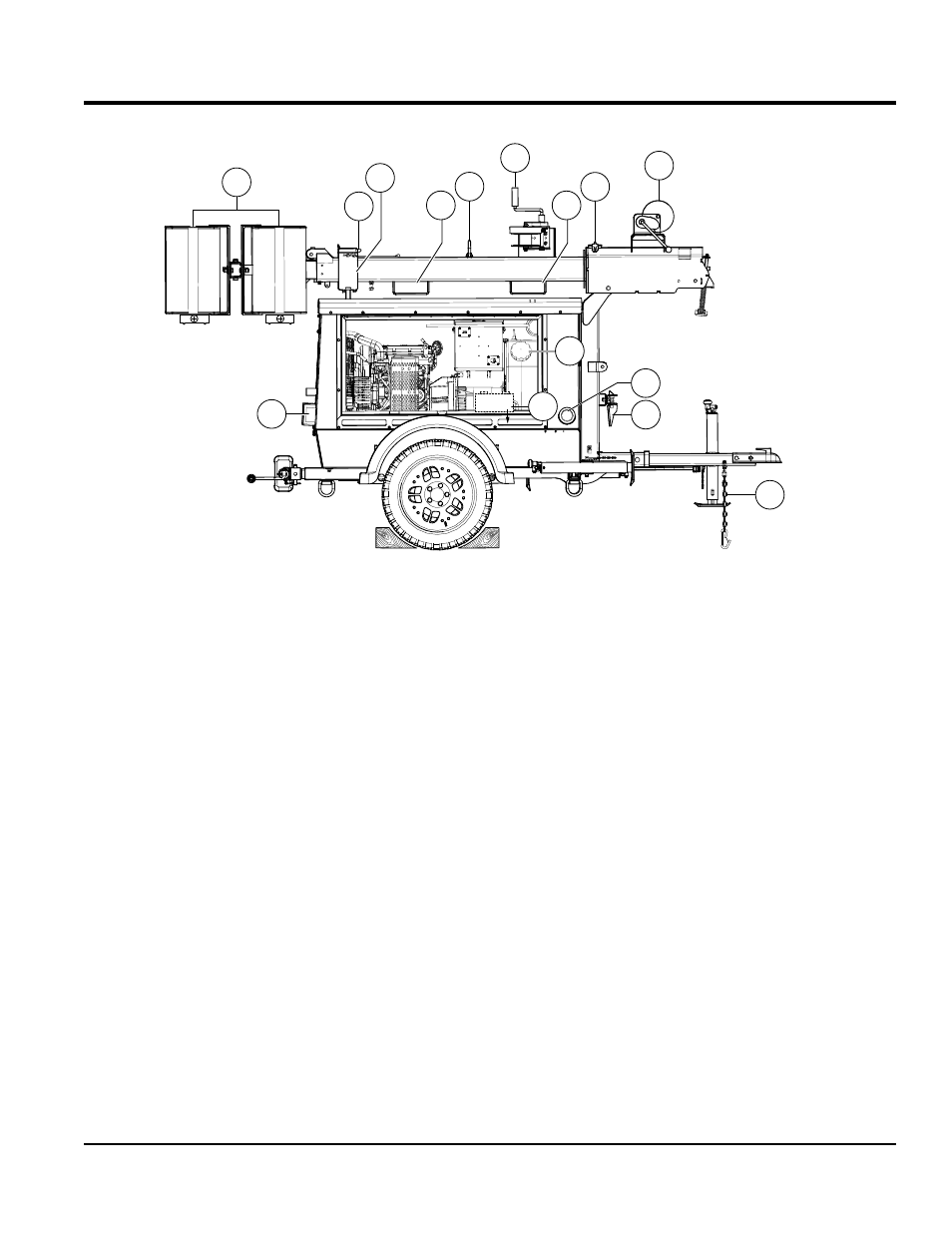

Figure 4. Major Components 2 (Control Panel Side)
20
3
17
15 15
16
13
14
12
19
18
22
21 3
23
12. Lights— Four 1000-watt metal-halide bulbs with a
110,000 lumens capacity each. Light coverage is
typically between 5 to 7 acres.
13. Cradle Lock/Release pin — Locks mast in cradle
support and releases mast when removed.
14. mast Cradle support — When towing of the light tower
is required, place the tower mast into the cradle support.
Make sure cradle lock/release pin has been inserted
and mast is locked.
15. Forklift Pockets — The light tower can be lifted by
inserting the forks of a forklift as far possible into the
pockets.
16. D-Ring Lifting Point — Attach a suitable lifting device
to this lifting point capable of lifting 2000 lbs. (257
kg). The D-ring lifting point has been positioned for a
fully balanced/configured light tower. Removal of any
components will unbalance the light tower.
17. mast extension Winch — Use this winch to extend the
mast to the desired height. Maximum height is 31.5 feet
(9.60 meters).
18. mast Rotation Locking Knob — Unscrew this knob
to release mast for rotation. Tighten this knob to lock
mast after it is set to the desired position. Engine Status
Module — Displays engine status via LEDs, water
temperature, air filter, fuel, alternator, oil pressure, glow
plugs. Insert ignition key, turn clockwise to start engine.
19. vertical mast Winch — Use this winch to raise the mast
to the vertical position.
20. Fuel Tank/Cap — Remove cap to add Low Sulfur No. 2
diesel fuel. Fuel tank capacity is 34 gallons (103.6 liters).
21. mast Lock/Release Lever — When the mast is in the full
vertical position, this lever must be in the locked position
(down).To place the mast in the stow position, push the
lever upward to release the mast.
22. safety Chain — Always attach safety chains to the
towing vehicle. neveR tow the light tower with the safety
chain unattached. Make sure safety chains are crossed
when towing.
23. Battery — The 12-volt DC battery (CA:550/
CCA:430) is shipped wet and is ready for use.
Battery is shown here for clarity.
