PAGE 26 — LT12D50B LIGHT TOWER • PARTS MANUAL — REV. #0 (03/13/09)

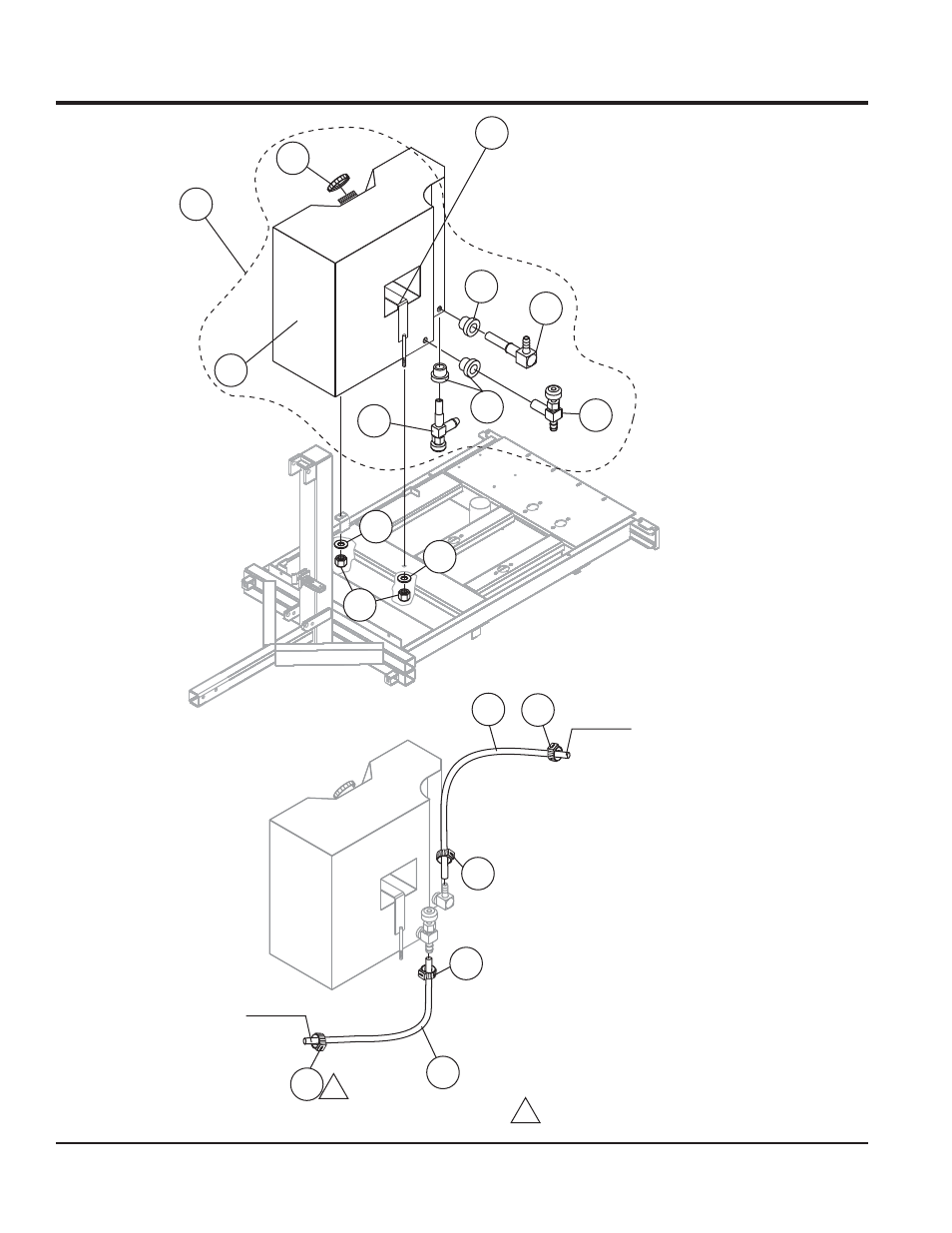

FUEL TANK ASSY.
2
3
4
5
6
5
7
8
11
11
12
11
13 11
1
NOTES:
A
CLAMP, ITEM 11 IS INCLUDED
WITH FUEL TANK ASSY. ITEM 1.
A
RETURN FROM
ENGINE
TO
ENGINE
9
10
9
