DCA-150SSJU — PARTS AND OPERATION MANUAL — REV. #3 (09/07/01) — PAGE 53

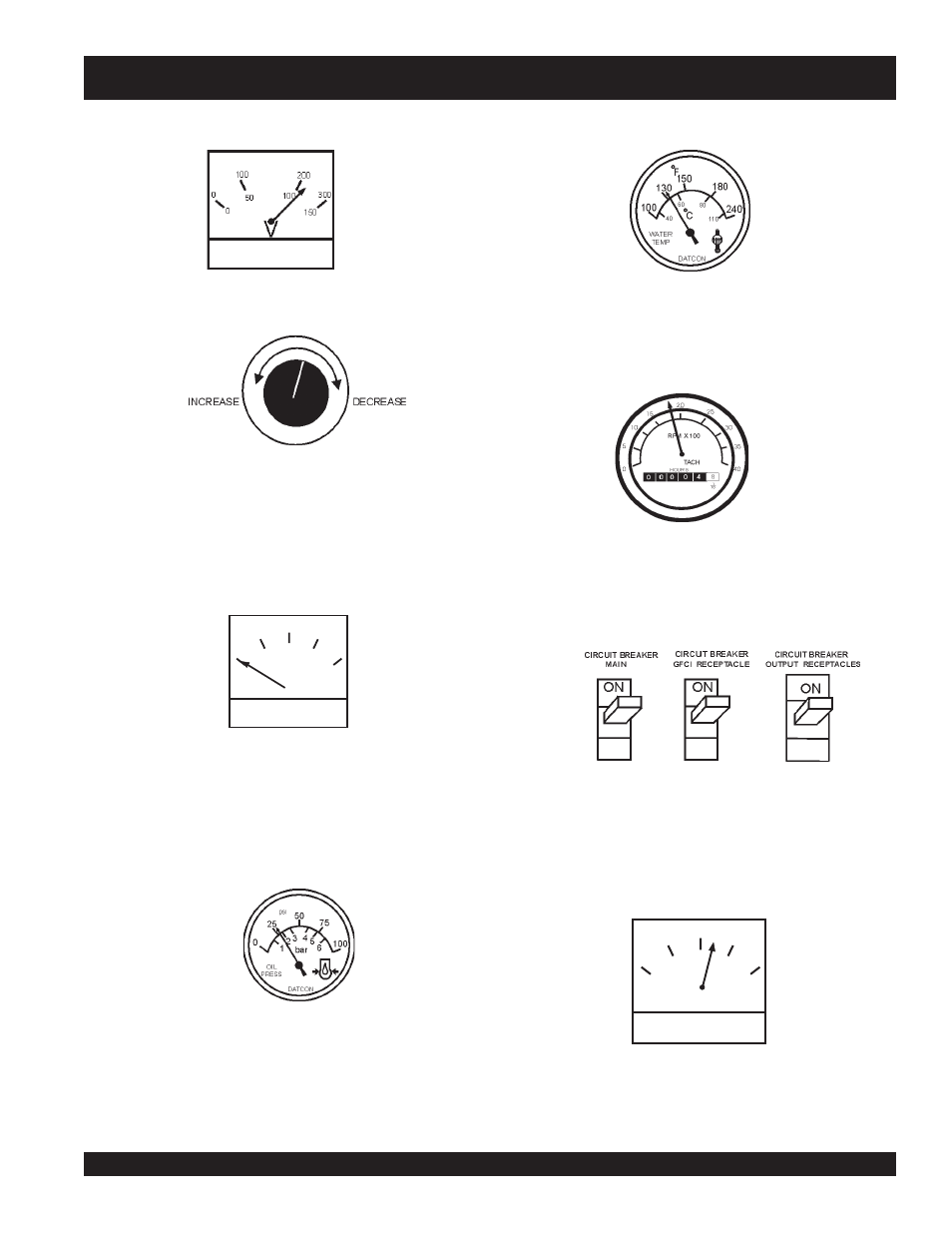

Figure 68. Voltage Meter (Volts)
Figure 69. Voltage Adjust Control Knob
A
0
40
60
75
20
Figure 70. Ammeter (No Load)
13. The ammeter (Figure 70) will indicate zero amps with no
load applied. When a load is applied, this meter will
indicate the amount of current that the load is drawing
from the generator’s alternator.
14. The engine oil pressure gauge (Figure 71) will indicate
the oil pressure of the engine. Under normal operating
conditions the oil pressure is approximately 41 to 71
psi.
15. The coolant temperature gauge (Figure 72) will indicate
the coolant temperature. Under normal operating
conditions the coolant temperature is approximately
215
o F..
Figure 72. Coolant Temperature Gauge
Figure 71. Oil Pressure Gauge
18. Observe the generator's ammeter (Figure 75) and verify
it reads the anticipated amount of current with respect
to the load. The ammeter will only display a current
reading if the load is in use.
19. The generator will run until manually stopped or an
abnormal condition occurs.
Figure 74. Main and GFCI Circuit Breakers
Figure 75. Ammeter (Load)
A
0
40
60
75
20
17. Turn the MAIN, GFCI and LOAD circuit breakers to
their ON position (Figure 74).
Figure 73. Engine Tachometer
16. The tachometer (Figure 73) will indicate the speed of
the engine when the generator is operating. Under normal
operating conditions this speed is approximately 1800
RPM’s.
DCA-150SSJU — START-UP PROCEDURE (MANUAL-CONTROLLER)
