DCa25Usi2 60 hz generator • operation anD parts manUal — rev. #1 (02/28/14) — page 13

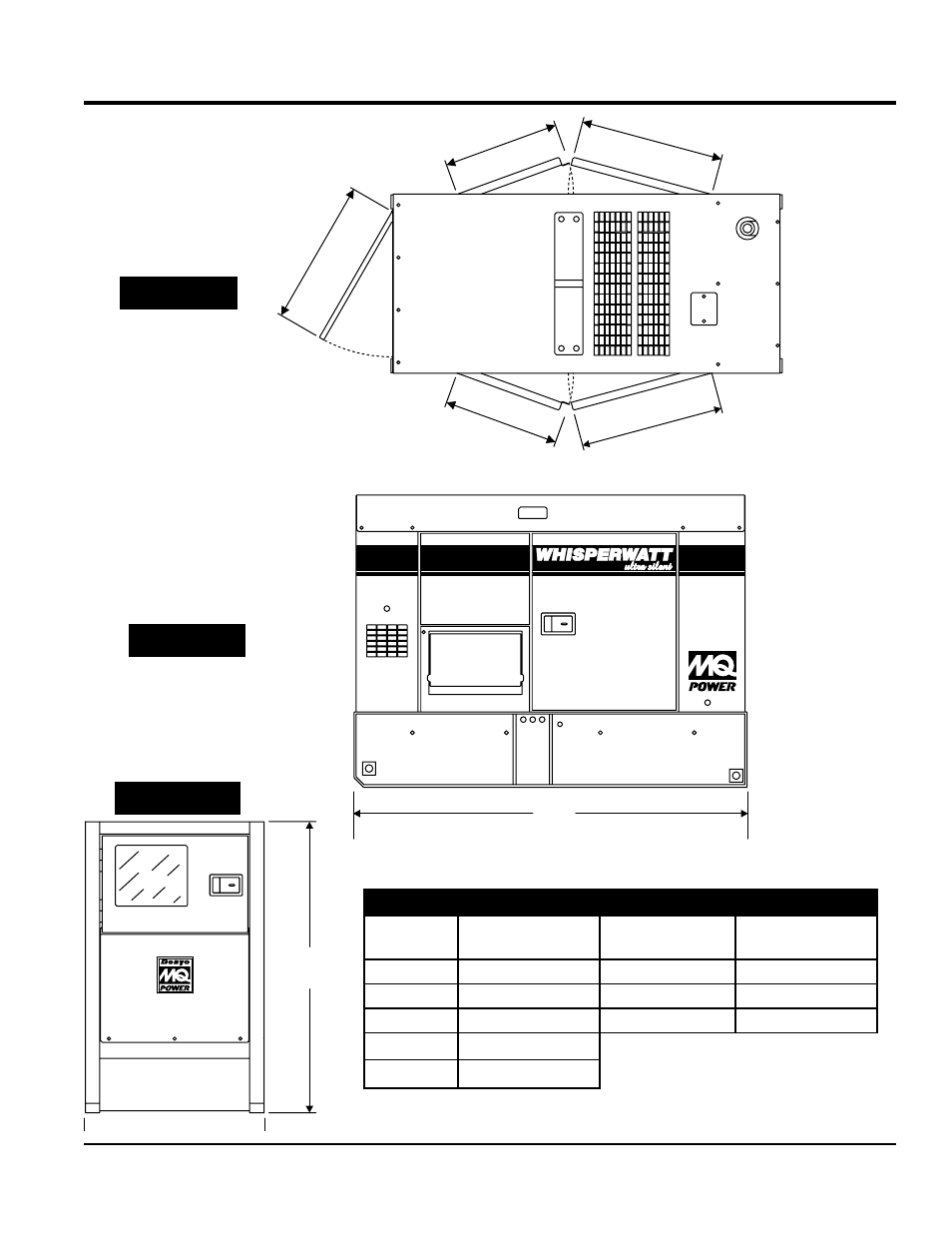

DIMEnSIOnS
D
B C
A
E
F
25
H
G
TOP VIEW
SIDE VIEW
FRONT VIEW
Figure 1. Dimensions
table 3. Dimensions
Reference
letter
Dimension in. (mm) reference letter Dimension in. (mm)
A 22.64 in. (575 mm.) F 70.47 in. (1,790 mm.)
B 20.87 in. (530 mm.) G 49.61 in. (1,260 mm.)
C 27.36 in. (695 mm.) H 31.1 in. (790 mm.)
D 24.8 in. (630 mm.)
E 25.59 in. (650 mm.)
