SHS62A CUT-OFF SAW — OPERATION & PARTS MANUAL — REV. #0 (06/02/06) — PAGE 23

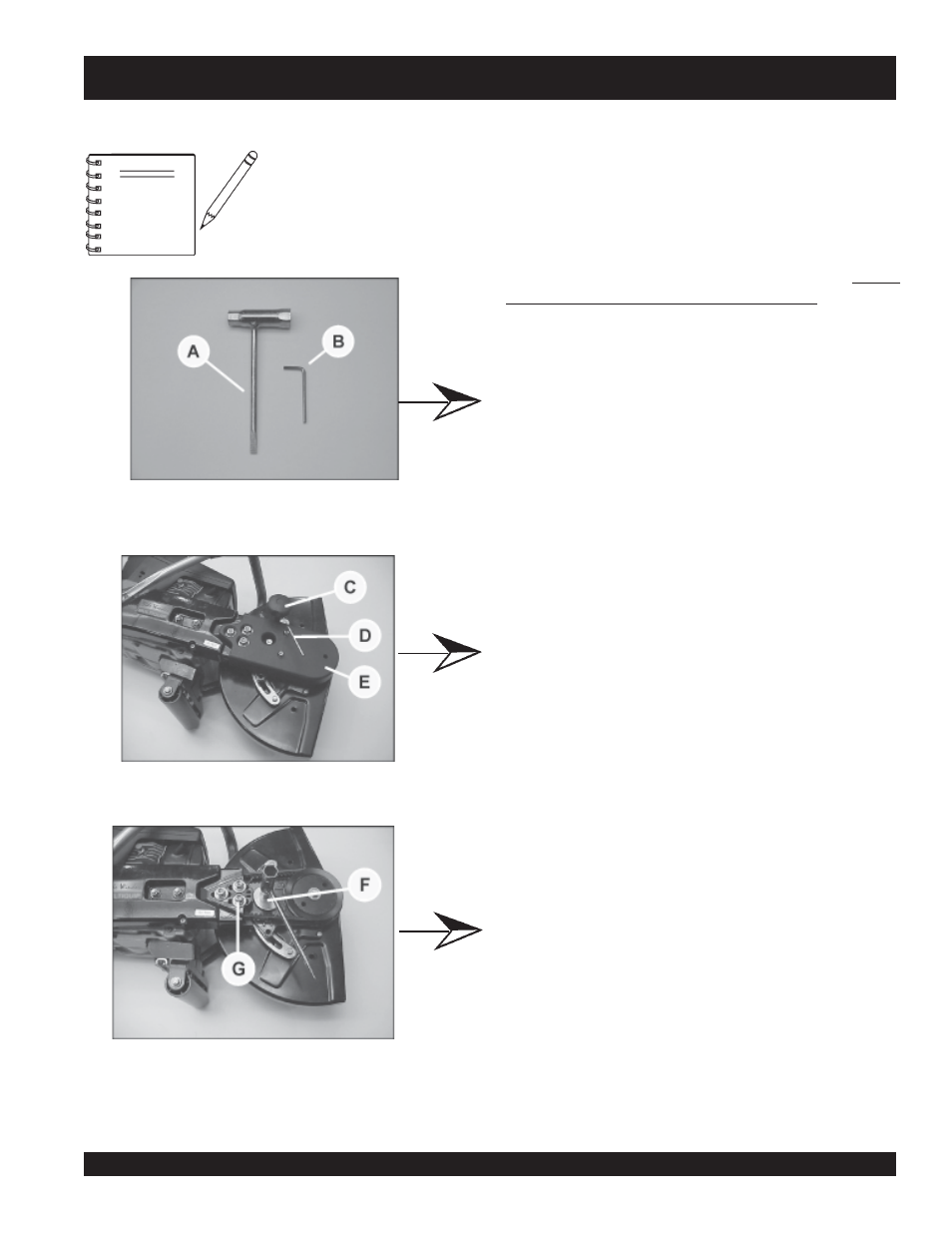

Reversing the Cutting Arm Procedure

NOTE

This assembly procedure permits the operator to reorient the

cutting blade

closer to a wall, column

and/or object.

The Stow

Side Winder

Cut-Off Saw comes with a Tool Kit

(Figure 16) that assist you with day to day operations. You will
need these tools for the maintenance of your saw.

Item

G

is a versatile screwdriver/wrench that accommodates

common bolt/screw and nut head sizes of your saw.

Item

H

is the wrench necessary to accommodate various allen

screws.

Figure 20. Tool Kit

This position displays the

cutting blade on the inside

(center)

cutting position. To reverse the blade position continue with the
following steps:

Remove the following items from the

Cutting Arm Assembly

to expose the V-belt:

■ Guard Adjustment Knob

I

■ Two Cap Screws

J

■ Cover Guard

K

Figure 21. Inside Center Cutting Position

Loosen the

belt tensioning cam

L

and remove the three

nuts

M

. This will take tension off the V-belt, and permit you to

reverse the

cutting arm

.

Figure 22. Belt Tensioning Cam
