PAGE 22 — SHS62A CUT-OFF SAW — OPERATION & PARTS MANUAL — REV. #0 (06/02/06)

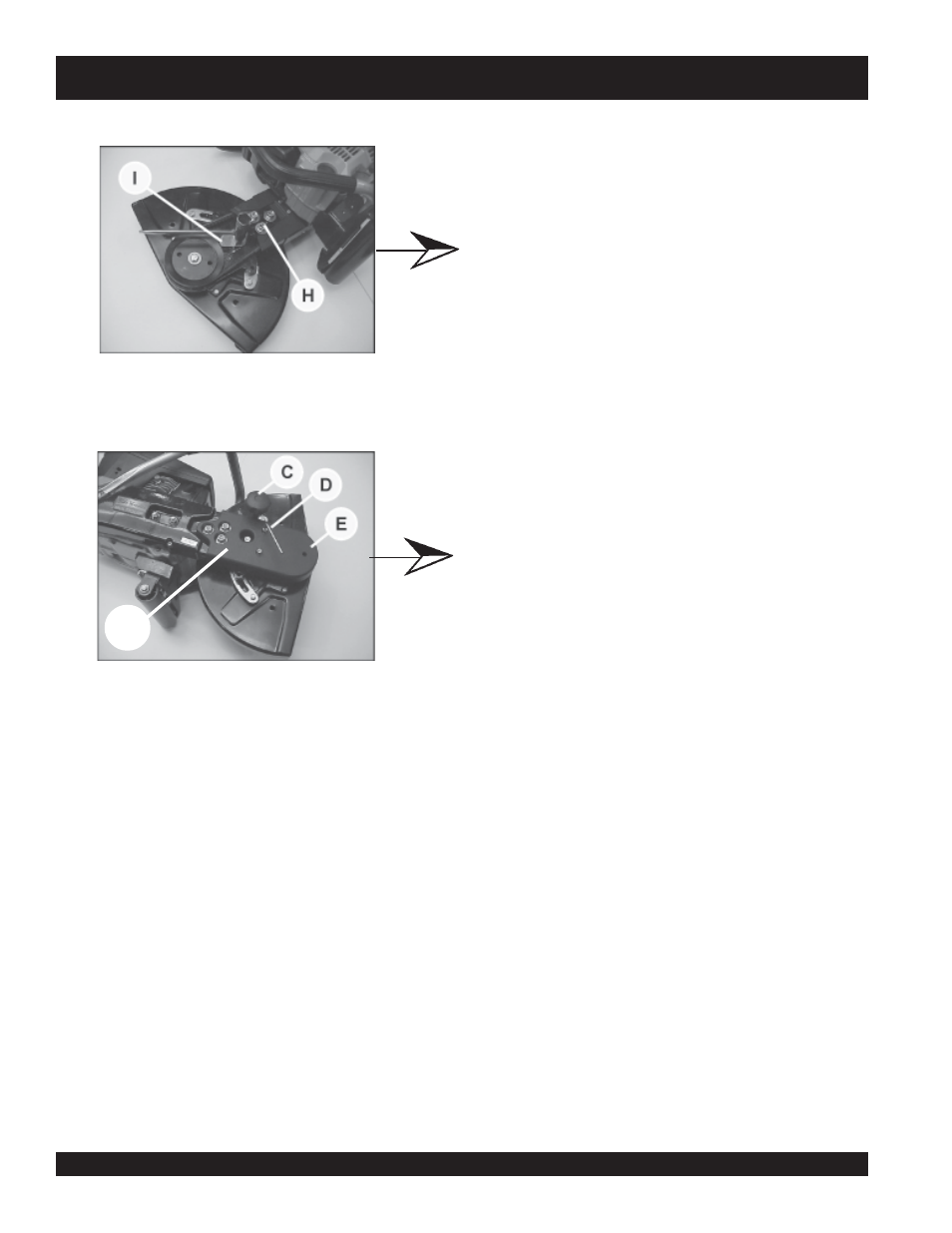

Figure 19. Re-Installing Cover Guard
Re-install the guard
K
and V-belt
T
covers . Fully tighten
the two cap screws J and reinstall the adjustment knob
I
.
Re-tension the V-belt by turning the belt tensioning cam
O
.
The V-belt should remain in tension.
Fully tighten the three nuts
N
that lock the V-belt into the proper
tensioning position.
Figure 18. Reversing the Cutting Arm
N
SHS62A CUT-OFF SAW — MAINTENANCE
V-Belt Changing Procedure (continued)
