SHS62A CUT-OFF SAW — OPERATION & PARTS MANUAL — REV. #0 (06/02/06) — PAGE 21
SHS62A CUT-OFF SAW — MAINTENANCE

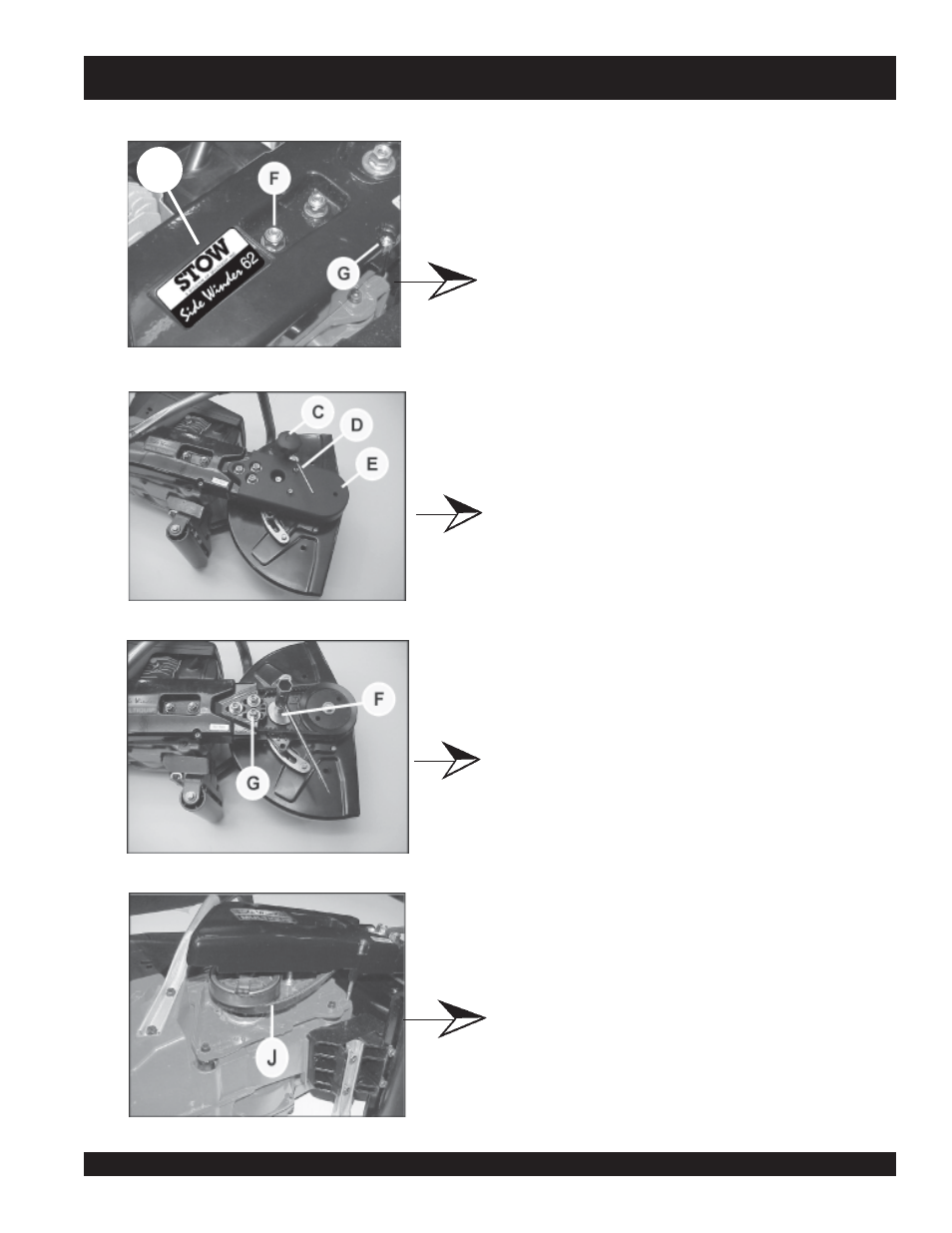

Figure 17. Drive V-Belt
Figure 14. Belt Guard Cover Removal
Remove the 2 hex nuts
L
and hex screw and washer
M
to
gain access to the V-belt on the clutch side. Remove V-belt
cover
T
.
Figure 16. V-Belt Tensioning
Using the provided wrench, loosen the three nuts
M
to reduce
the tension on the V-belt, then turn the V-belt Tensioning Cam
L
until the V-belt is completely slacked.
V-Belt Changing Procedure
Remove the V-belt
P
from the clutch and spindle pulleys .
Install the new V-belt around both pulleys. It is essential that the
drive V-belt is properly positioned around both the clutch and
spindle pulleys.
Remove the 2 hex nuts J and hex screw and guard adjustment
knob
I
to gain access to the V-belt on the spindle side. Remove
the Cover Guard
K
.
Figure 15. Re-Installing Cover Guard
N
