assembly and installation
aSSemBLy aND INSTaLLaTION
Before the trowel can be put into operation there are some
components that must be installed before the trowel can
be used. This section provides general instructions on how
to install those components. Instruction sheet P/N 20485
provides further details for the handle assembly.
handle Tube installation
1. Attach the main handle (tube) to the gearbox as shown
in (Figure 4). The mounting hardware should be
contained in the shipping container.

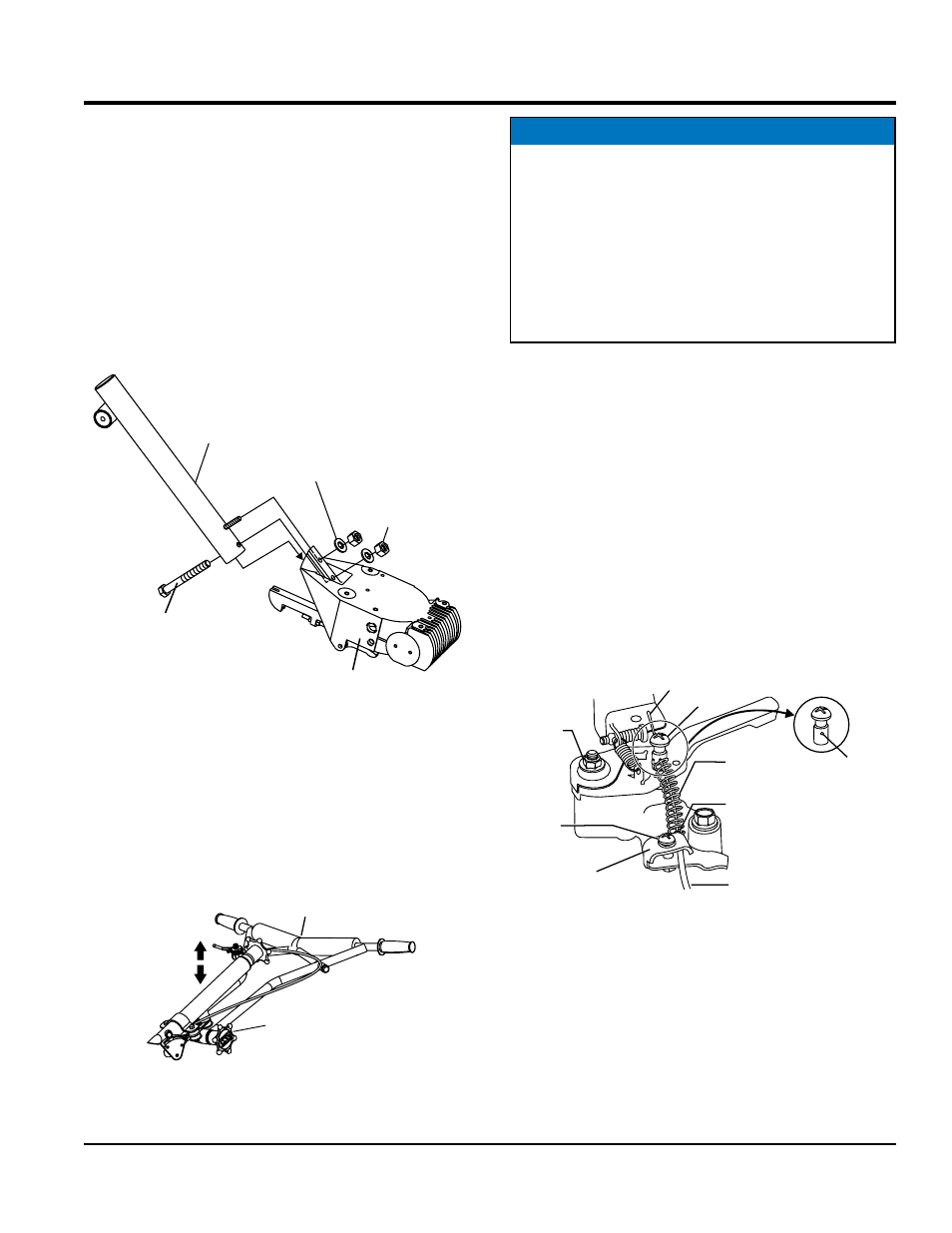

Figure 4. Handle Tube Installation
vibratory T-Handle Bar placement
1. The vibratory T-handle bar is already attached to the
main handle tube.
2. To adjust the height of the T-bar, loosen the star wheel
(Figure 5) and position T-handle bar in the desired
position.
Figure 5. T-Handle Bar Adjustment
3. Tighten star wheel firmly.
GEARBOX
3/8 FLAT
WASHER
3/8-16 X 3.25
HHC SCREW
MAIN HANDLE
(TUBE)
3/8-16
NYLOC NUT
T-HANDLE BAR
HEIGHT
ADJUSTMENT
STAR WHEEL
Throttle Cable Installation (engine)
1. Uncoil the throttle cable and housing.
2. Feed the throttle cable through the cable housing.
3. Connect the
trowel throttle cable to the engine
throttle linkage (Figure 6). There should be a piece of
wire installed on the trowel to show where to route the
throttle cable.
4. Route cable end through the idle control spring and
swivel stop. When connecting the cable housing,
make sure that no more than 1/4" (6.4 mm) of the cable
housing protrudes past the housing clamp on the
engine.
Figure 6. Throttle Cable Installation (Engine)
5. Tighten cable clamp screw and swivel stop screw.
6. After the trowel throttle cable has been connected to
the engine throttle linkage, adjust and tighten operator
position of the T-bar handle to lock the throttle cable at
the proper length.
NOTICE
If additional handle height adjustment is desired, a
handle wedge kit can be purchased for your trowel by
ordering P/N 2576 from your Multiquip dealer.
These wedges are placed between the handle and the
gearbox to adjust the operating height of the handle.
This kit comes complete with wedges, new bolts and
installation instructions. This will move your operating
handle position up or down approximately 3” (76 mm).
CABLE
END SWIVEL
STOP
ADJUSTER
NUT
SWIVEL
STOP HOLE
CLAMP
SCREW
CABLE
HOUSING
CLAMP
IDLE
RETURN
SPRING
CABLE
HOUSING
END
TROWEL
THROTTLE
CABLE
