page 12 — jS36 SeRIeS WaLK-BeHIND TROWeL • OpeRaTION aND paRTS maNUaL — Rev. #4 (11/01/13)

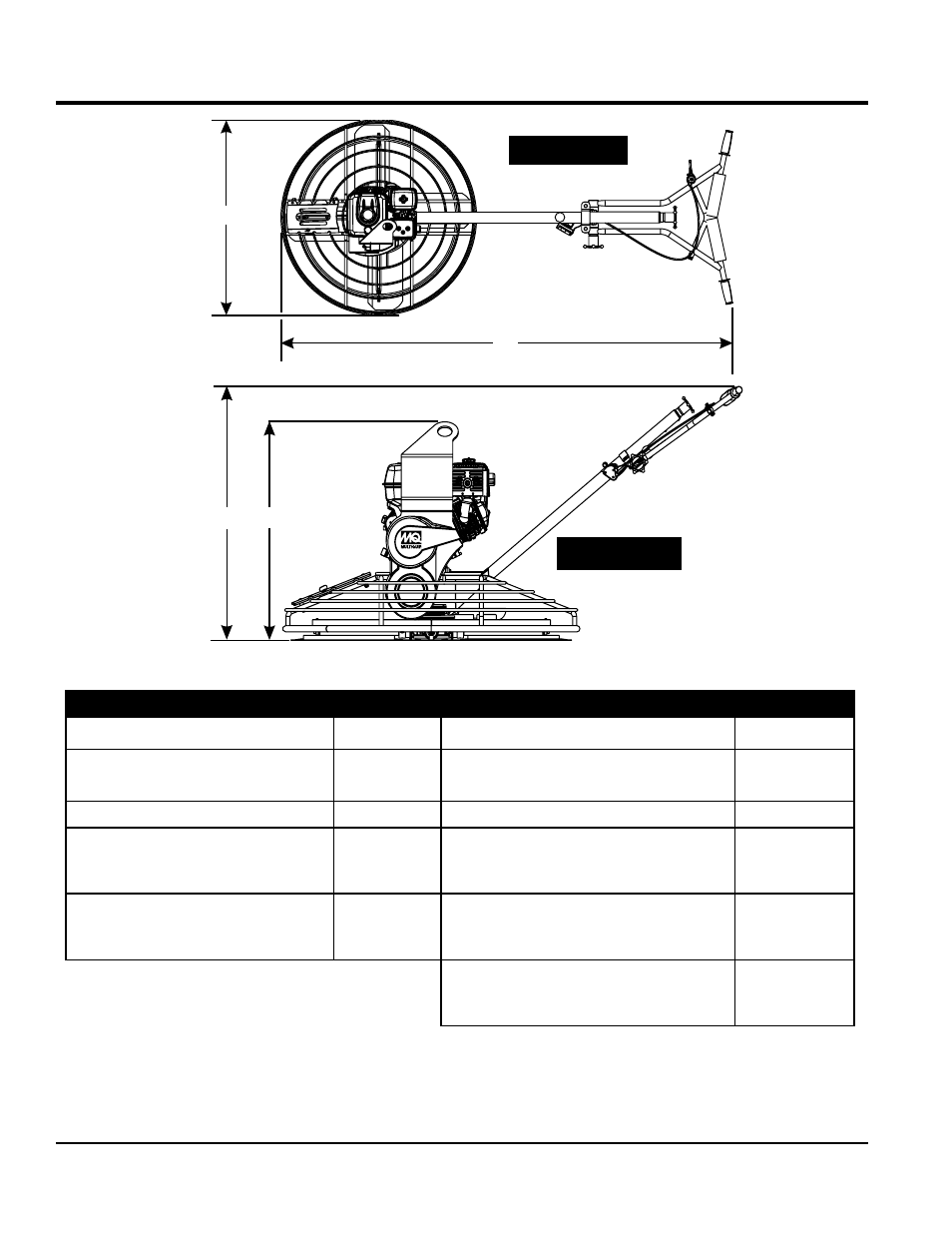

troWel specifications/dimensions
Table 1. Trowel Specifications
A–Height (Lifting Bale) –mm (in.) 686 (27) Path Width – mm (in.) 914 (36)
B–Height (Handle) – mm (in.) Standard 950 (37.4) Rotor – RPM (Dry Concrete) JS36H55
Rotor – RPM (Dry Concrete) JS36H90
60-115
90-155 Quick Pitch™ 1,067 (42)
C–Width (Ring Diameter) – mm (in.) 950 (37.3) Gear Box Oil Capacity – ml (oz.) 828 (28)
D–Width – mm (in.) 1,880 (74)
Shipping Weight – kg (lbs.) JS36H55
Standard
Quick Pitch™
102 (225)
107(235)
Number of Blades 4
Shipping Weight – kg (lbs.) JS36H90
Standard
Quick Pitch™
107 (235)
111 (245)
Shipping Weight – kg (lbs.) JS36LE
Standard
Quick Pitch™
87 (191)
92 (202)
C
D
TOP VIEW
A A A B
SIDE VIEW
Figure 1. Dimensions
