PAGE 42 — HTN 31V
HTN/HTO-31V • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #6 (07/09/07) — PAGE 42
20947
NAMEPLATE AND DECALS ASSY.

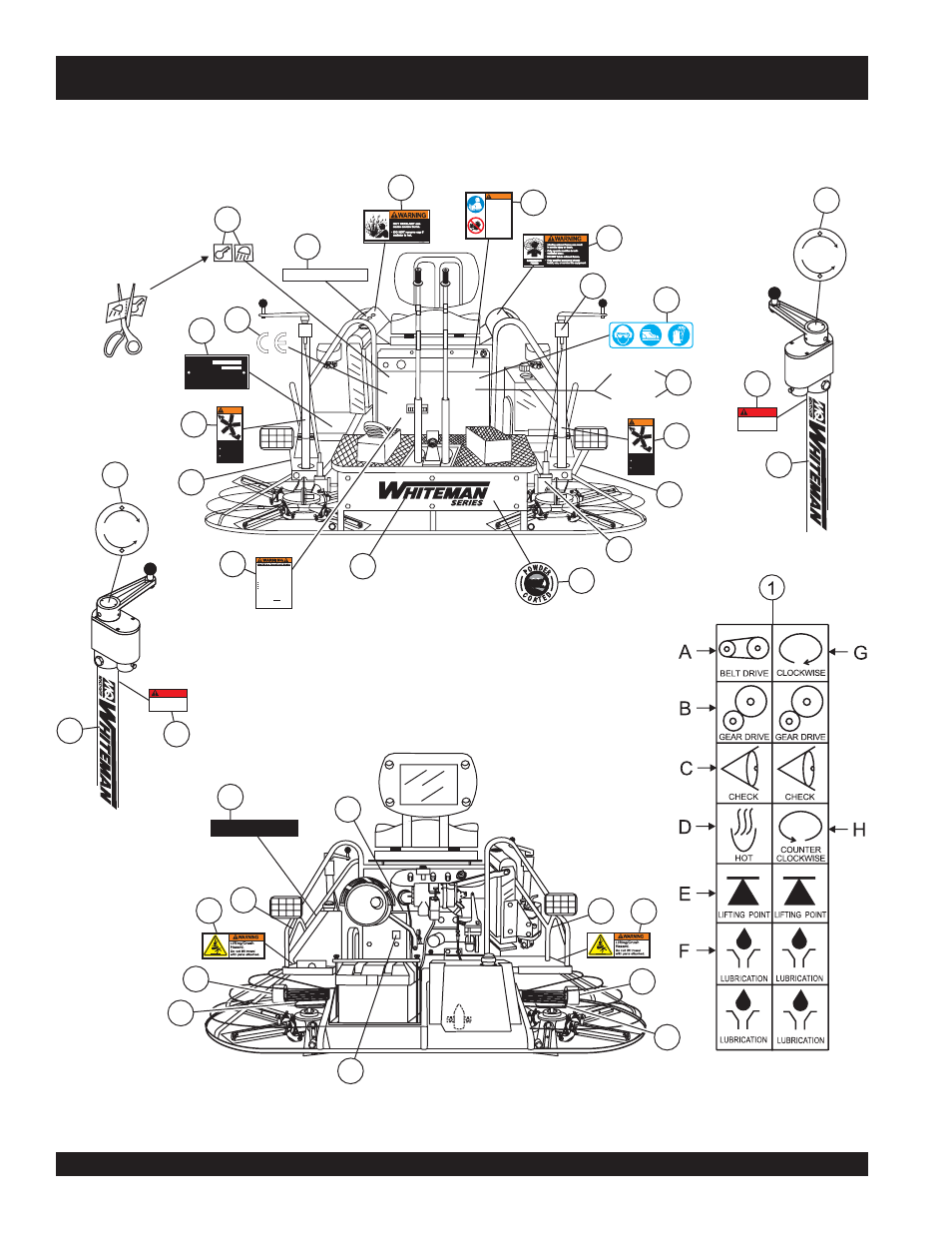

HTN/HTO-31V — NAMEPLATE AND DECALS ASSY.
HTN
HTO
10
3
2
8
To avoid injury,
you MUST read
and understand
operator’s manual
before using this
machine.
Ask for training
as needed.
This machine to
be operated by
qualified
personnel only.
P/N 35137
WARNING 12
MODEL
SERIAL NO.
11
13
4
WARNING
ROTATING BLADE HAZARD Keep hands
and feet clear
of guard rings.
Stop engine
before servicing.
P/N 35168 P/N 35168
WARNING
ROTATING BLADE HAZARD Keep hands
and feet clear
of guard rings.
Stop engine
before servicing.
P/N 35168 P/N 35168
5
5
7
DO NOT DISASSEMBLE SPRING INSIDE IS UNDER COMPRESSION
DANGER
14
UP
DOWN
BLADE
PITCH RH
17
1C
1C
1F
18
RETARDANT ONLY
6 6
1A
1E
1E
1H
1B
1B
1G
ENGINE FUEL ONLY
19
1D
1F
9
15
OIL WATER CHARGE
Engine exhaust and some of its constituents, and some dust created
of California to cause cancer, birth
defects and other reproductive harm.
by power sanding, sawing, grinding,
drilling and other construction activities
contains chemicals known to the State
Some examples of these chemicals are: Lead from lead-based paints.
Crystalline silica from bricks.
Cement and other masonry products.
Arsenic and chromium from chemically
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to
these chemicals:
work in a ALWAYS well ventilated area, and work with
approved safety equipment, such as
dust masks that are specially designed
to filter out microscopic particles.
20
DO NOT DISASSEMBLE
SPRING INSIDE IS UNDER COMPRESSION
DANGER
UP
DOWN
BLADE
PITCH LH
16
9
14
