PAGE 18 — HTN 31V
HTN/HTO-31V • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #6 (07/09/07) — PAGE 18
Figures 2 and 3 show the location of the controls, indicators and
general maintenance parts. Each control may perform more than
one function. The functions of each control or indicator is
described below and on the next page.
1. Seat – Place for operator to sit. Engine will not start unless
operator is seated. Seat is adjustable, fore and aft for
operator comfort.
2. Steering Control Lever (right side) -Allows the unit to
move in either a forward, reverse left or right direction.
3. Retardant Spray Control Button – When pressed allows
retardant spray to flow through the spray nozzle located
at the front of the machine.
4. Twin Pitch Control – Adjusts the blade pitch for right side
of the trowel. Turn the crank as marked on its top surface to
increase or decrease blade pitch.
5. Twin Pitch Control – Adjusts the blade pitch for left side
of the trowel. Turn the crank as marked on its top surface to
increase or decrease blade pitch.
6. Steering Control Lever (left side) -Allows the unit to move
in either a forward, reverse left or right direction.
7. Light Switch – When activated, turns on four halogen
lights. Lights offer better visibility when working indoors.
8. Ignition Switch – With key inserted turn clockwise to
start engine.
9. Oil Indicator Light - Lights red when oil pressure is low.
10. Water Indicator Light - Lights red when water
temperature is high.
11. Charge Indicator - Lights red when electrical system is
not charging properly.
12. Hour Meter - Indicates number of hours machine has
been in use or hours engine was run.
13. Choke Control Lever. - In cold weather pull this lever
forward about half way to start engine. After engine warms
push knob all the way in.
14. Fuel Gauge/Filler Cap - Indicates the amount of fuel in
the fuel tank. Remove this cap to add fuel.
15. Fuel Tank - Holds 5 gallons of unleaded gasoline.
16. Spare Belt Carrier - Contains 2 spare belts. Belts are
used on the drive pulley.
17. Left Foot Riser – Operator foot rest pedal.
18. Spray Nozzle – Spray nozzle for retardant.
19. Right Foot Pedal – Controls blade speed. Slow blade
speed is accomplished by slightly depressing the foot pedal.
Maximum blade speed is accomplished by fully depressing
the foot pedal.
20. EZ- Mover Boss – Front -side insertion point for EZ Mover.
Used when the transporting of the trowel is required.
HTN/HTO-31V — CONTROLS AND INDICATORS

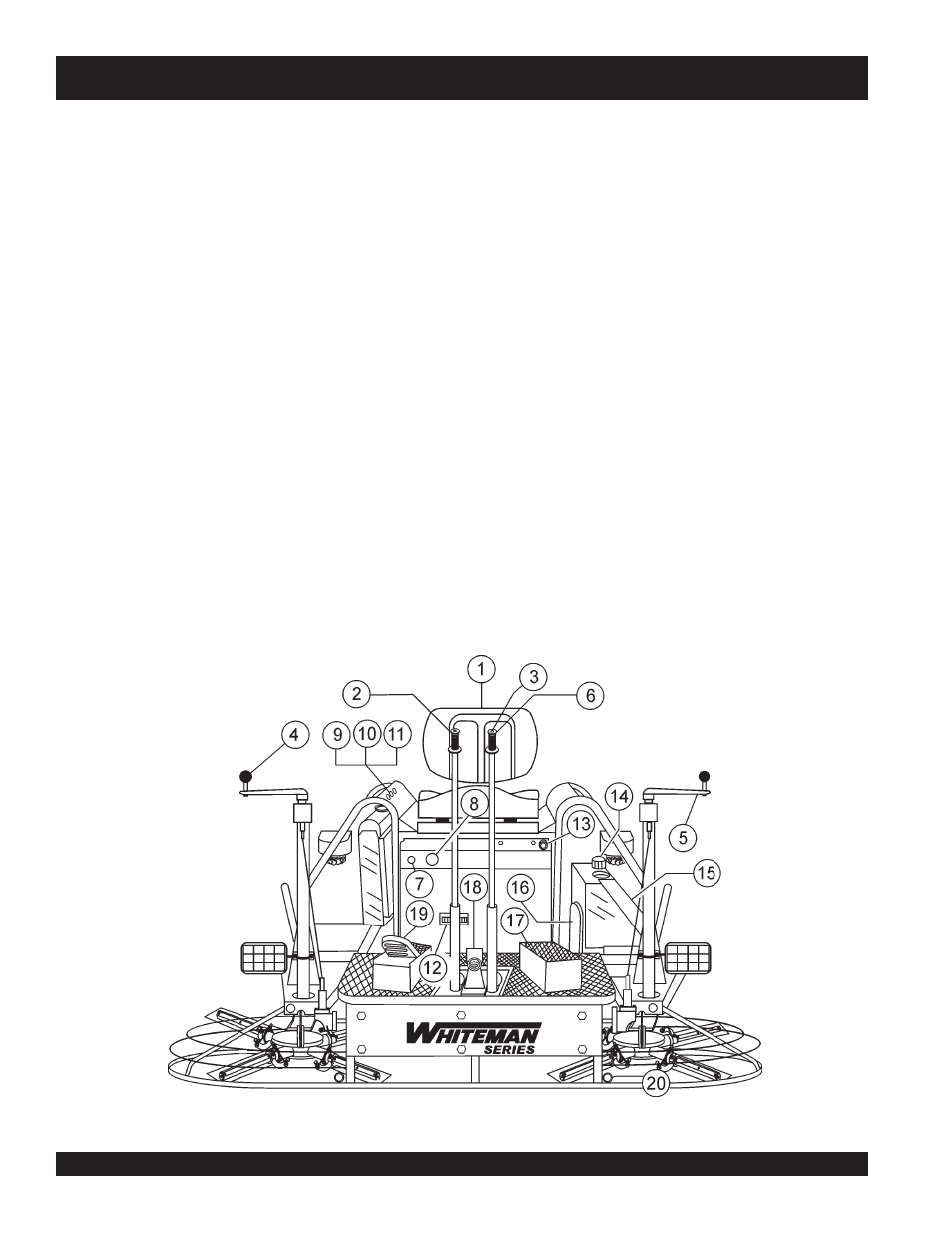

Figure 2. HTN/HTO Controls and Indicators (Front)
