C-30HDN PUMP — OPERATION AND PARTS MANUAL — REV. #11 (03/29/12) — PAGE 59
APPENDIX — C-30HDN RECOMMENDED SHOTCRETE ACCESSORIES
RECOMMENDED SHOTCRETE ACCESSORIES
Use a 1-3/8" rubber nozzle tip for a wide spray pattern. Use a 1-1/4" rubber nozzle tip for a narrow spray
pattern. DO NOT INSTALL THE NOZZLE AT THE END OF THE HOSE UNTIL THE FIRST MATERIAL
HAS PASSED THROUGH THE ENTIRE HOSE LENGTH.
Disassemble and clean the nozzle assembly thoroughly after each job. Grease all threads before re-
assembly. DO NOT close the air valve when pumping is stopped as a continued air flow keeps the air
passages clean.

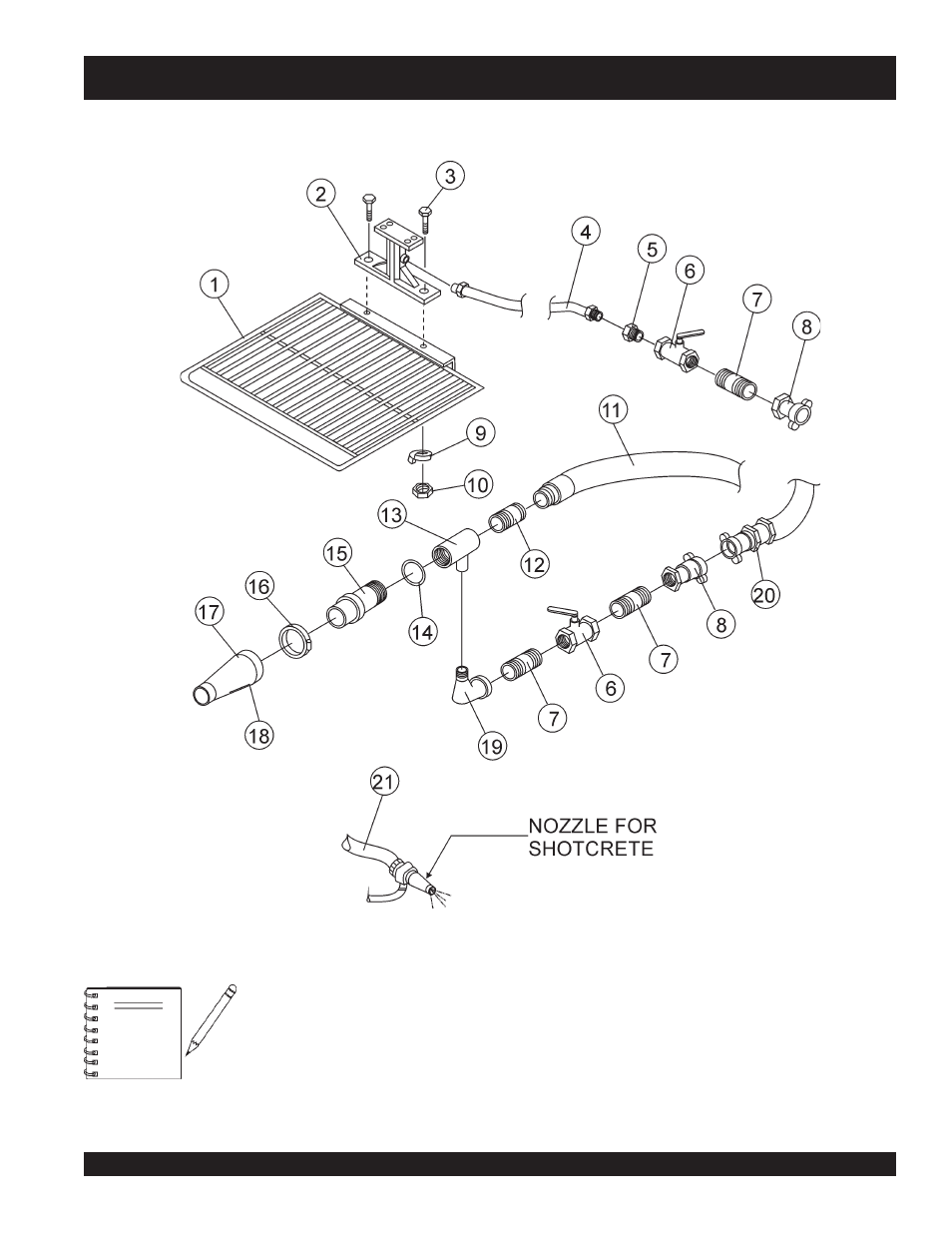

Figure 40. Shotcrete System Accessories
NOTE
