page 28 — st3020b1/bCUL sUb. pUmp • operation and parts manUaL — rev. #2 (10/28/10)
cb6 wiring diagraM
RED
EXTERNAL 1-PHASE
(230 VAC, 60 Hz.)
POWER SOURCE
CIRCUIT
BREAKER
BLACK
L1
GROUND
L2
GREEN
GND
INPUT
POWER
CORD
GREEN
0N
(MANUAL)
2-POLE
OPERATION
SWITCH
5L3
6T3
4T2
2T1
1L1
3L2
START
FLOAT
SWITCH
(HIGH)
WHITE
BLACK
STOP
FLOAT
SWITCH
(LOW)
BLACK
WHITE
COIL
AUTO
CONTACTOR
ALL WIRES ARE BLACK 14 AWG.
UNLESS OTHERWISE NOTED.
JUMPER
WIRE
A2
A1
4
4
R
23 (G)
11 (R)
12 (R)
24 (G)
1 2 3 4
1 2 3 4
TB1
A
B
4
R S U V V Y Y
R S U V V Y Y
TB1
B
A
GRAY
BLACK
S
2
S
R
U
V
WARNING
CONTROL BOX INSTALLATION IS TO BE
PERFORMED BY A LICENSED ELECTRICIAN
OR QUALIFIED PERSONNEL.
THE POSSIBILITY OF ELECTRICAL SHOCK
OR ELECTROCUTION EXISTS, WHICH COULD
CAUSE SEVERE BODILY HARM EVEN DEATH!.
BLACK
RED
230 VAC, 60 Hz.
ELECTRIC MOTOR
WIRING DIAGRAM
MAIN
COIL
MAIN
COIL
AUX
COIL
THERMAL
PROTECTOR
90µF@400 VDC
C1
BLK
RED
GREEN
PUMP
POWER
CORD

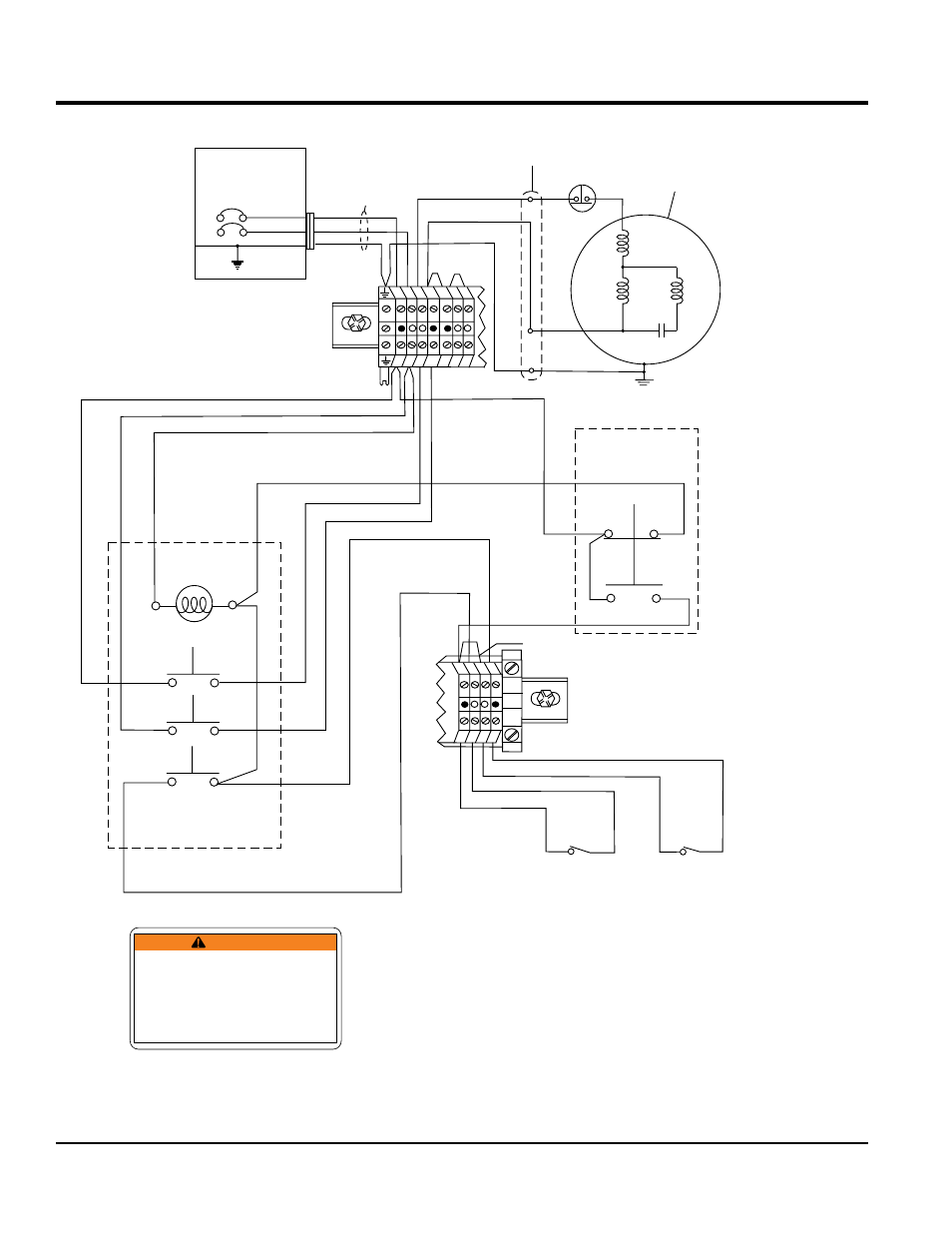

Figure 25. CB6 Wiring Diagram
