MVH-206GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #0 (06/17/08) — PAGE 15
BASIC ENGINE

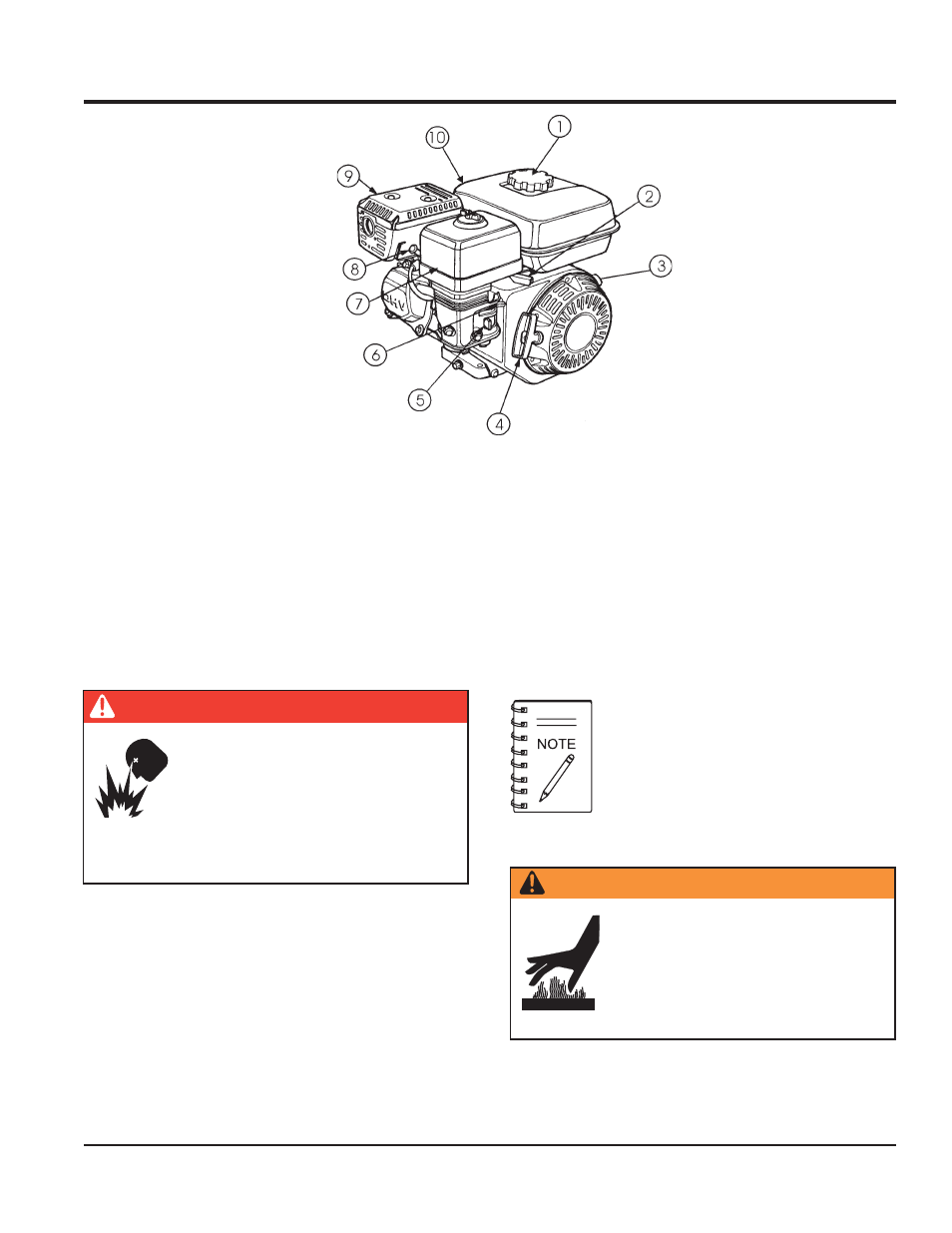

Figure 3. Honda GX240
Engine Components
The engine (Figure 3) must be checked for proper
lubrication and filled with fuel prior to operation. Refer to
the manufacturers engine manual for instructions & details
of operation and servicing. The engine shown above is a
HONDA engine, operation for other types of engines may
vary somewhat.
1. Fuel Filler Cap – Remove this cap to add unleaded
gasoline to the fuel tank. Make sure cap is tightened
securely. DO NOT over fill.
2. Throttle Lever – Used to adjust engine RPM speed
(lever advanced forward- SLOW, lever back toward
operator- FAST).
3. Engine ON/OFF Switch – ON position permits engine
starting, OFF position stops engine operation.
4. Recoil Starter (pull rope) – Manual-starting method.
Pull the starter grip until resistance is felt, then pull
briskly and smoothly.
5. Fuel Valve Lever – OPEN to let fuel flow, CLOSE to
stop the flow of fuel.
DANGER — Fuel Hazard
Adding fuel to the tank should be done
only when the engine is stopped and has
had an opportunity to cool down. In the
event of a fuel spill, DO NOT attempt to
start the engine until the fuel residue has
been completely wiped up and the area surrounding
the engine is dry.
6. Choke Lever – Used in the starting of a cold engine,
or in cold weather conditions. The choke enriches the
fuel mixture.
7. Air Cleaner – Prevents dirt and other debris from
entering the fuel system. Remove wing-nut on top of
air filter cannister to gain access to filter element.
8. Spark Plug – Provides spark to the ignition system.
Set spark plug gap to 0.024 - 0.028 inch (0.6 - 0.7
mm). Clean spark plug once a week.
9. Muffler – Used to reduce noise and emissions.
10. Fuel Tank – Holds unleaded gasoline. For additional
information refer to engine owner's manual.
Operating the engine without an air filter,
with a damaged air filter, or a filter in need
of replacement will allow dirt to enter the
engine, causing rapid engine wear.
WARNING — Hot Components
Engine components can generate
extreme heat. To prevent burns, DO NOT
touch these areas while the engine is
running or immediately after operating.
NEVER operate the engine with the
muffler removed.
