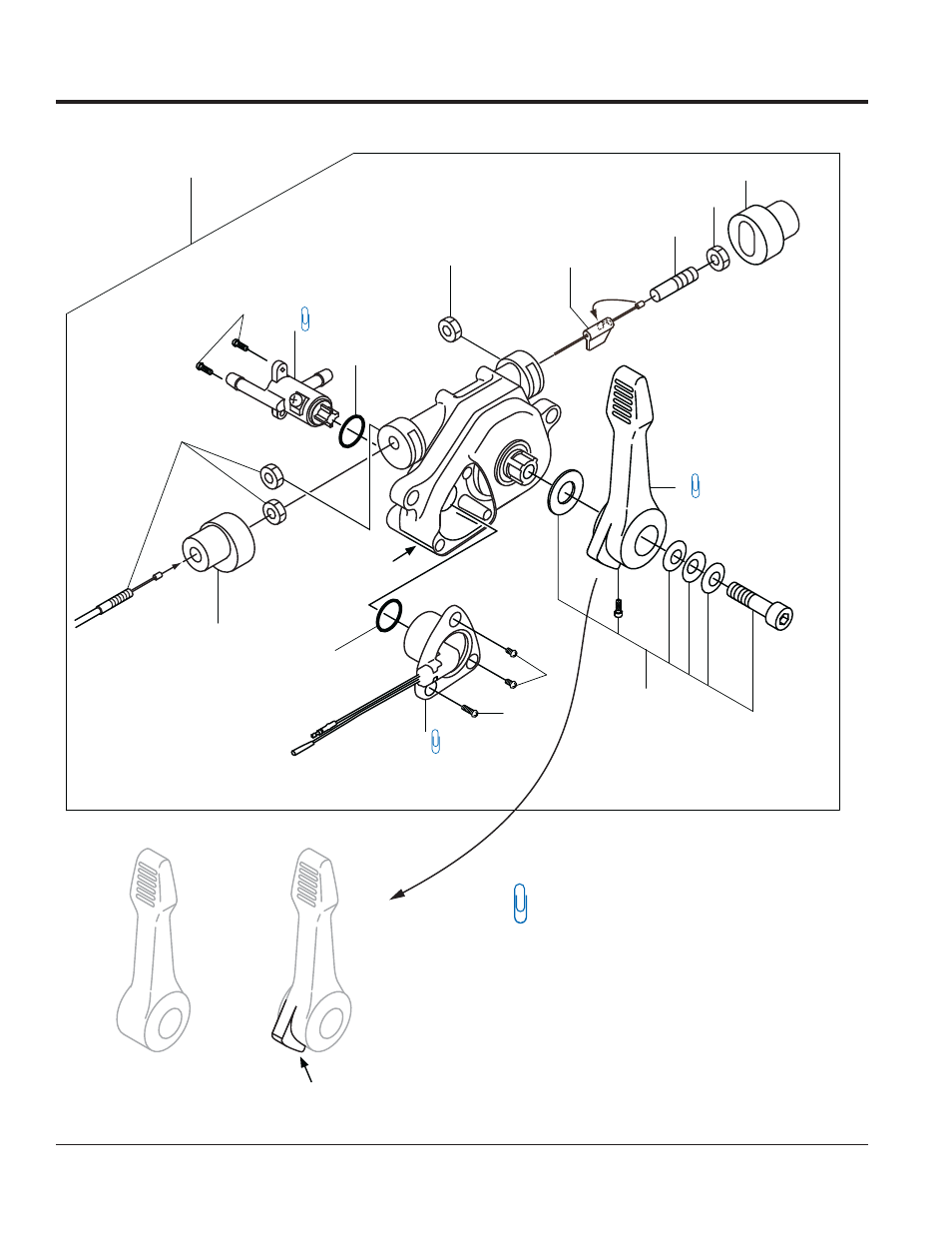

COMBINATION LEVER ASSY.
COMBINATION LEVER ASSY.
11
12
13
14
2
4
6
9
7
7
8
5
A
1
11
10
3
NOTES
OLD STYLE LEVER BODY NO LONGER
AVAILABLE. NEW STYLE ITEMS 1, 2, AND 9
ARE NOT COMPATIBLE WITH OLD STYLE
BODY. IF REPLACEMENT OF ITEMS 1, 2
OR 9 IS REQUIRED, ORDER KIT “A”.
TO DETERMINE IF COMBINATION LEVER
ASSY IS OLD STYLE OR NEW STYLE, SEE
ITEM 2, LEVER. NEW STYLE LEVER HAS
MOLDED TAB AT BOTTOM.
BODY
OLD
STYLE
LEVER
MOLDED
TAB
NEW
STYLE
LEVER
