Specifications
Isolation Service Manifold
Introduction
21
Specifications

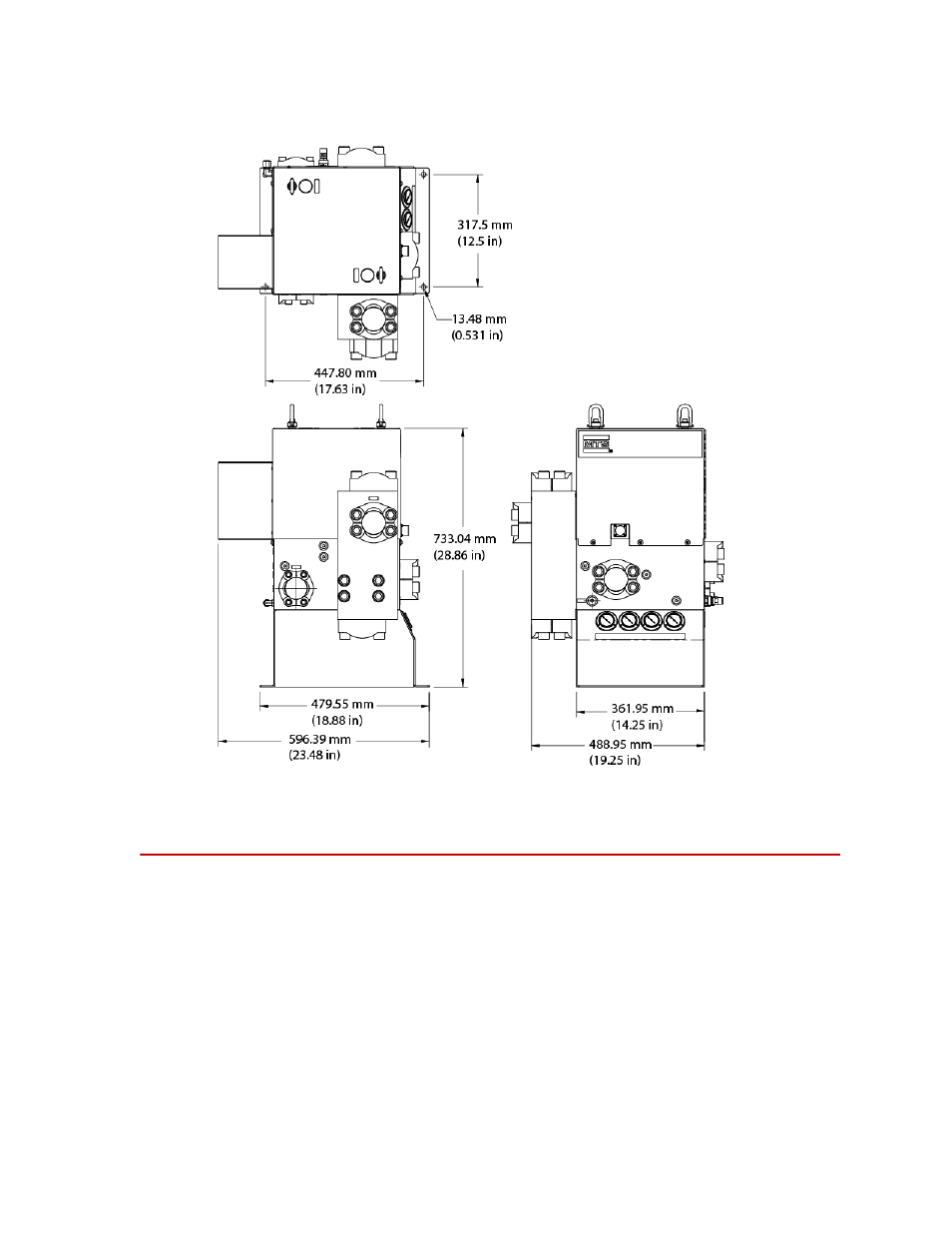

Weights and other specifications can be found on the drawings associated with
the various models. The drawings can be found on the Isolation Service Manifold
Product Information CD; part number 100-237-112.
ISM10-280
Approximate weight is 215.9 kg (476 lb)
ISM10-280 Port Sizes:
Pressure In From HPU: C62 2”
Return To HPU: C62 2”
Drain To HPU: -08 BOSS
Pressure To HSM: C62 2”
Return From HSM: C62 2”
Drain From HSM: -08 BOSS
Maintenance Drain: -06 JIC
