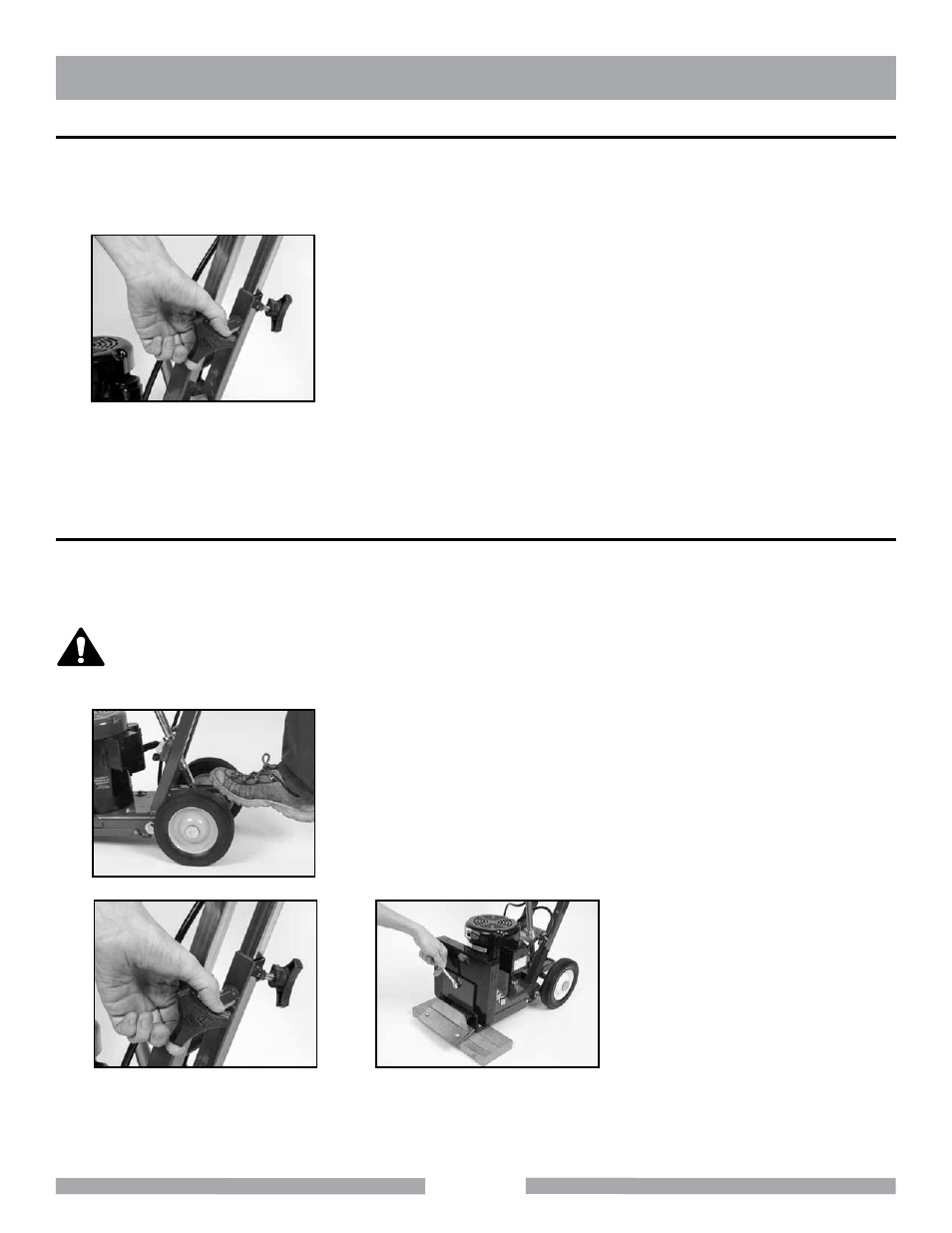

AFTER THE PROPER WHEEL ADJUSTMENT IS ACHIEVED, ADJUST THE HANDLE LENGTH
HANDLE ADJUSTMENT
(A)
The handle should be adjusted to
the "belt-line" of the operator or to
an otherwise comfortable position
Simply loosen the thumbscrews located on the frame and the handle will slide up and down. Locate
the most comfortable height and tighten the thumbscrews to lock the handle in place.
MK-VTS/50 FLOOR SCRAPER GENERAL OPERATION
TRANSPORTATION
Always remove the counterweight and blades before loading or unloading.
Machine breaks down for easy transportation. Handle and/or wheel angle can by lowered to reduce
overall height.
Keep hands and feet out from underneath the machine.
WARNING
(B)
Lower handle by loosening
tri-knob. Push handle down.
(C)
Turn bolt and remove nose
weight if you need to lift the unit.
(A)
A kick plate on the back of the chassis
provides additional help when moving the
machine. Simply step downward on the kick
plate and raise the front. Adjust the angle so
the weight of the head is over the wheels.
