Manual Part Number 157292 Revision 06/01, Effective Date: June 1, 2001 Page 2
MK - Splash Hood for MK-770 Part Number 151924
This instruction sheet contains instructions for the MK-370/470 Splash Hood and the MK-770 Splash Hood. The
Splash Hood is designed to reduce water spray generated during the operation of the tile saw.

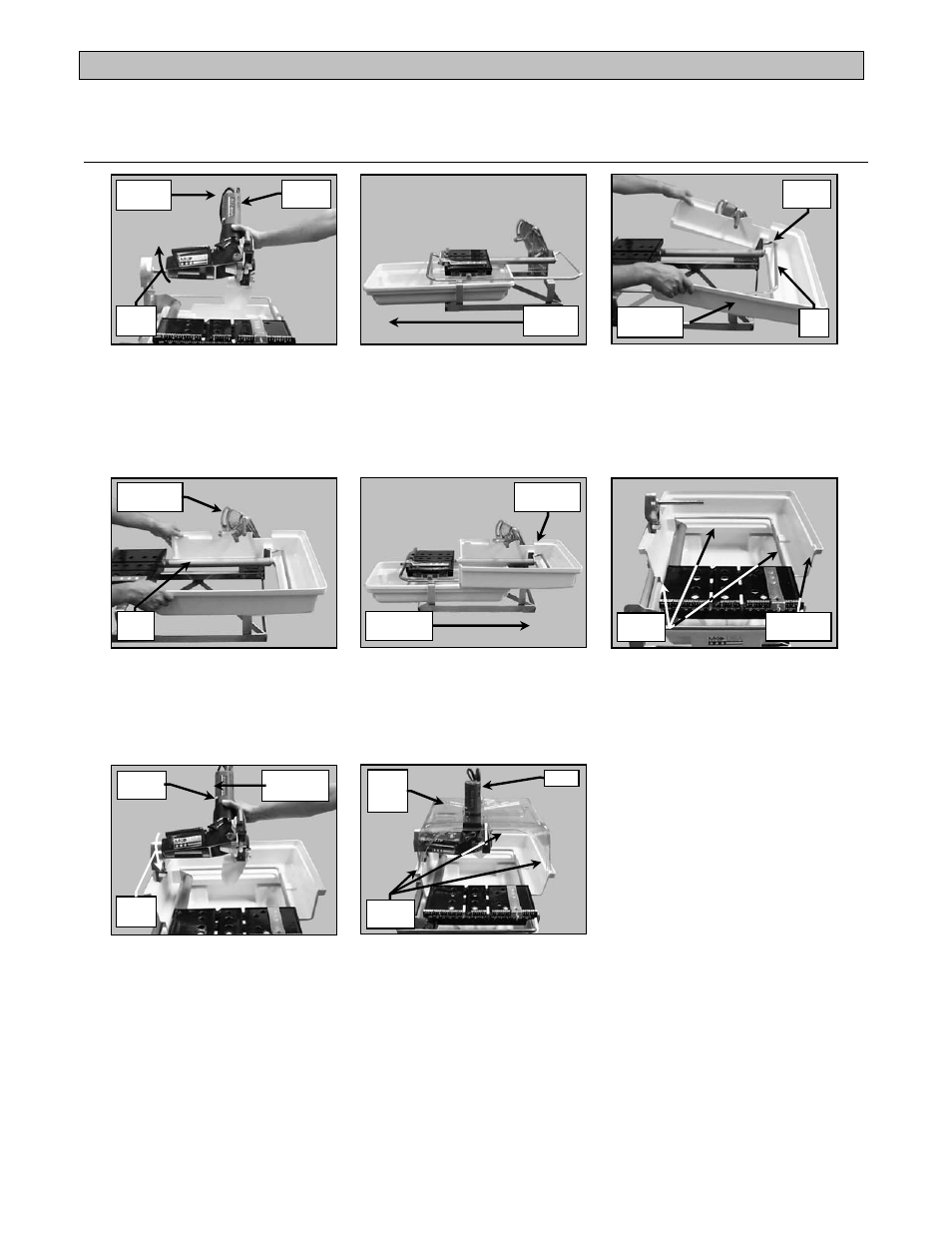

2. MK770 Splash Hood Installation Procedure:
NOTE: If problems arise during installation, contact the MK Diamond Service Center at (800) 421-5830.
MK Diamond, Products, Inc, 1315 Storm Parkway, Torrance, CA 90509-2803, (310) 539-5158
(A)
Remove the Cutting Head
(B)
Remove the Water Pan
(C)
Slide the left side of the Splash
Hood base over the rear bar of
the saw frame
(D)
Slide the left side of the Splash
Hood base under the inside of
the Cutting Head Post and
behind The Guide Bar
(E)
Install the Water Pan into
the saw and under the
Splash Hood base
(F)
Verify the Splash Hood base
is seated inside the Water Pan
(G)
Install the Cutting Head
and seat
(H)
Install the Splash Hood cover
over the Cutting Head motor
and seat it inside the
Splash Hood base
Cutting
Head Post
Guide
Bar
Seating
Point
Cutting
Head
Rotate
Up
Removal
Direction
Removal
Direction Rear
Bar
Splash
Hood Base
Seating
Point
Installation
Direction
Splash
Hood Base
Splash
Hood Base
Seating
Point
Cutting
Head
Rotate
Down
Installation
Direction
Splash
Hood
Cover
Motor
