43

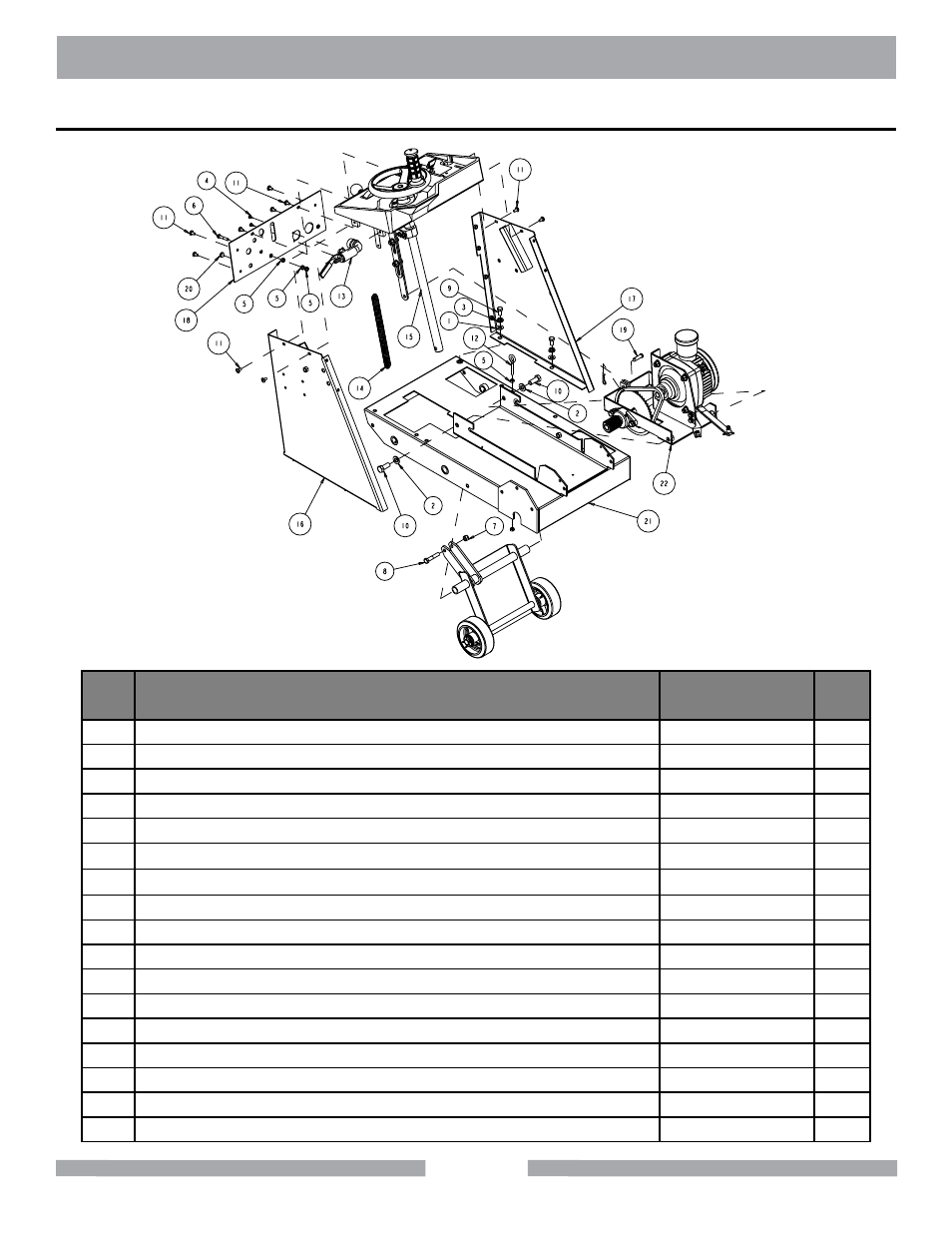

MK-20 SERIES EXPLODED VIEW & PARTS LIST
FIGURE 3 - PARTS LIST: FRAME, LESS ENGINE - P/N 169719
ITEM
NO.
DESCRIPTION
PART OR
IDENTIFYING NO.
QTY.
REQ.
1 WASHER, FLAT, SAE, 3/8 150923 13
2 WASHER, 1/2 SAE FLAT 150924 2
3 WASHER, LOCK, SPLIT, 3/8 150925 4
4 SCREW, PAN HD SELF TP10-24 X 3/8 151262 2
5 NUT, HEX, 1/4 - 20 151893 6
6 SCREW, HEX HEAD 1/4 - 20 X 1 - 1/2” 151914 1
7 NUT, 3/8 - 16 NYLOK HEX 152505 6
8 SCREW, HEX HD, 3/8 - 16 X 2 153485 2
9 SCREW, HEX, 3/8 - 16 X 3/4 153527 4
10 SCREW, 1/2 - 13 X 1 - 1/4 HEX HEAD CAP 153532 2
11 SCREW, 1/4 - 20 X 1/2 TRUSS HEAD 153880 10
12 EYEBLT, 1/4 - 20 X 2 153887 1
13 ASSY, WATER VALVE 153888 1
14 SPRING, EXTENSION 153957 1
15 LINKAGE, DPTH FEED 1600/9000 155049 1
16 PANEL, RIGHT, 20 SERIES 156500 1
17 PANEL, LEFT, 20 SERIES 156501 1
