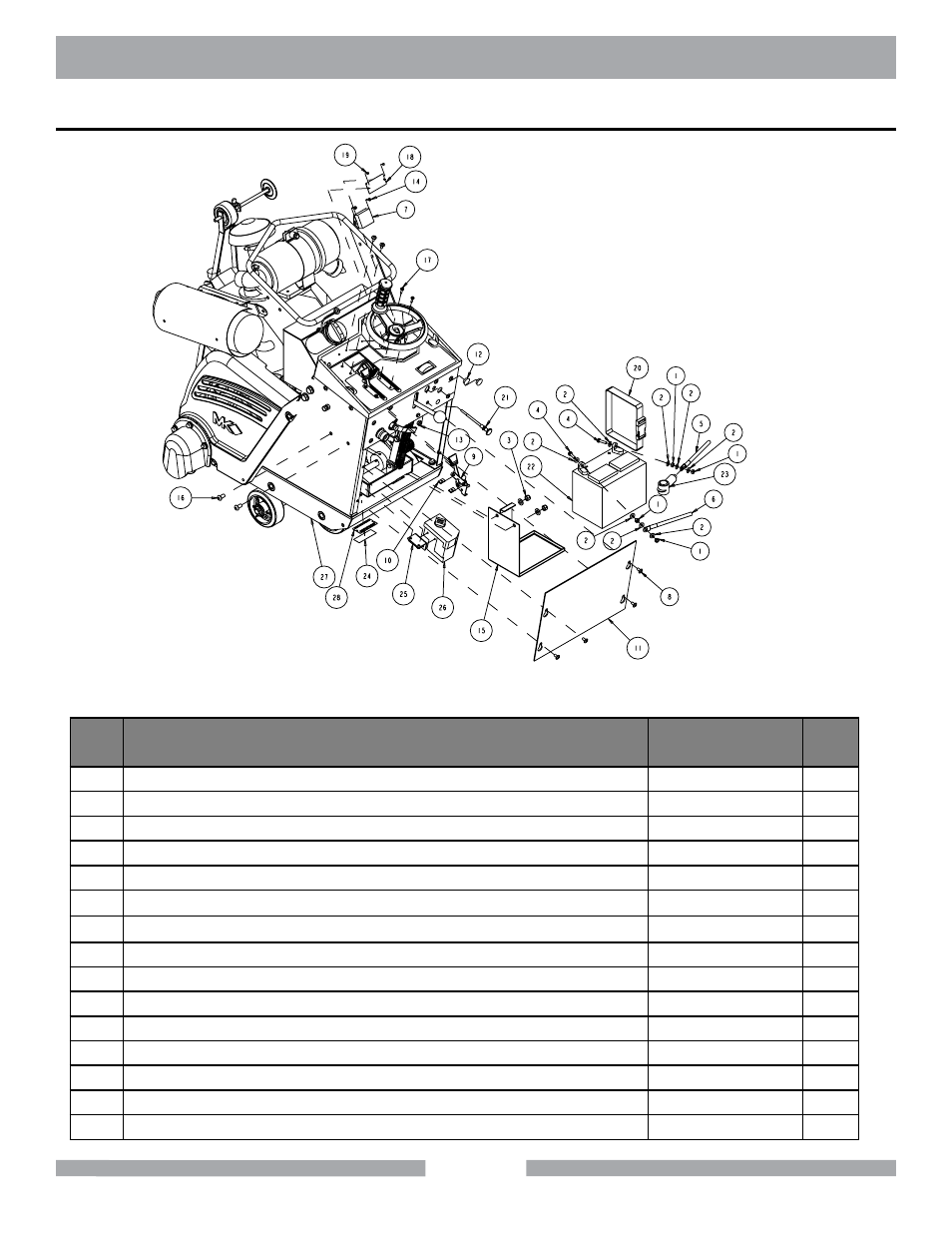

MK-20 SERIES EXPLODED VIEW & PARTS LIST
FIGURE 2 - PARTS LIST: MK-2024HSP CONCRETE SAW - P/N 158777
ITEM
NO.
DESCRIPTION
PART OR
IDENTIFYING NO.
QTY.
REQ.
1 NUT, HEX, 1/4 -20 151893 4
2 WASHER, 1/4 SAE FLAT 151915 12
3 NUT, 3/8 -16 NYLOK HEX 152505 4
4 SCREW, HEX HD CAP, 1/4 - 20 X 1 152676 2
5 CABLE, 4GA X 48 RED BATTERY 153848 1
6 CABLE, 4GA X 24 BLACK BATTERY 153849 1
7 TACHOMETER/HOURMETER 153877 1
8 SCREW, 1/4 -20 X 1/2 TRUSS HEAD 153880 10
9 ASSY, TROTTLE CONTROL 155406 1
10 NUT, 10 -24 CLIP 155407 2
11 PANEL, TOWER LOWER BACK 156505 1
12 PLUG, HOLE PLASTIC 3/4” 156615 2
13 NUT, 3/8 - 24 HEX JAM 156623 1
14 SCREW, PAN HD SELF TAP 8 - 32 X 1/2 156632 2
15 BOX, BATTERY 156634 1
