23
WARNING
FOR DUAL VOLTAGE MODELS ONLY ! The MK-2000 motor has 2 voltage
positions, 115v and 230v. Ensure the Voltage Adjustment Switch of the
MK-2000 motor is set for the voltage of the intended power source BEFORE
installing the MK-2000 Power cord.
(A)
Ensure the ON/OFF Switch is in
the OFF position
(B)
Verify or place the Voltage Ad-
justment Switch in the correct
voltage position.
(C)
Locate the correct power source for
the setting of the MK-2000 Voltage
Adjustment Switch.
(D)
Align, install and twist clockwise to
lock the polarized plug of the MK-2000
into the correct power source.

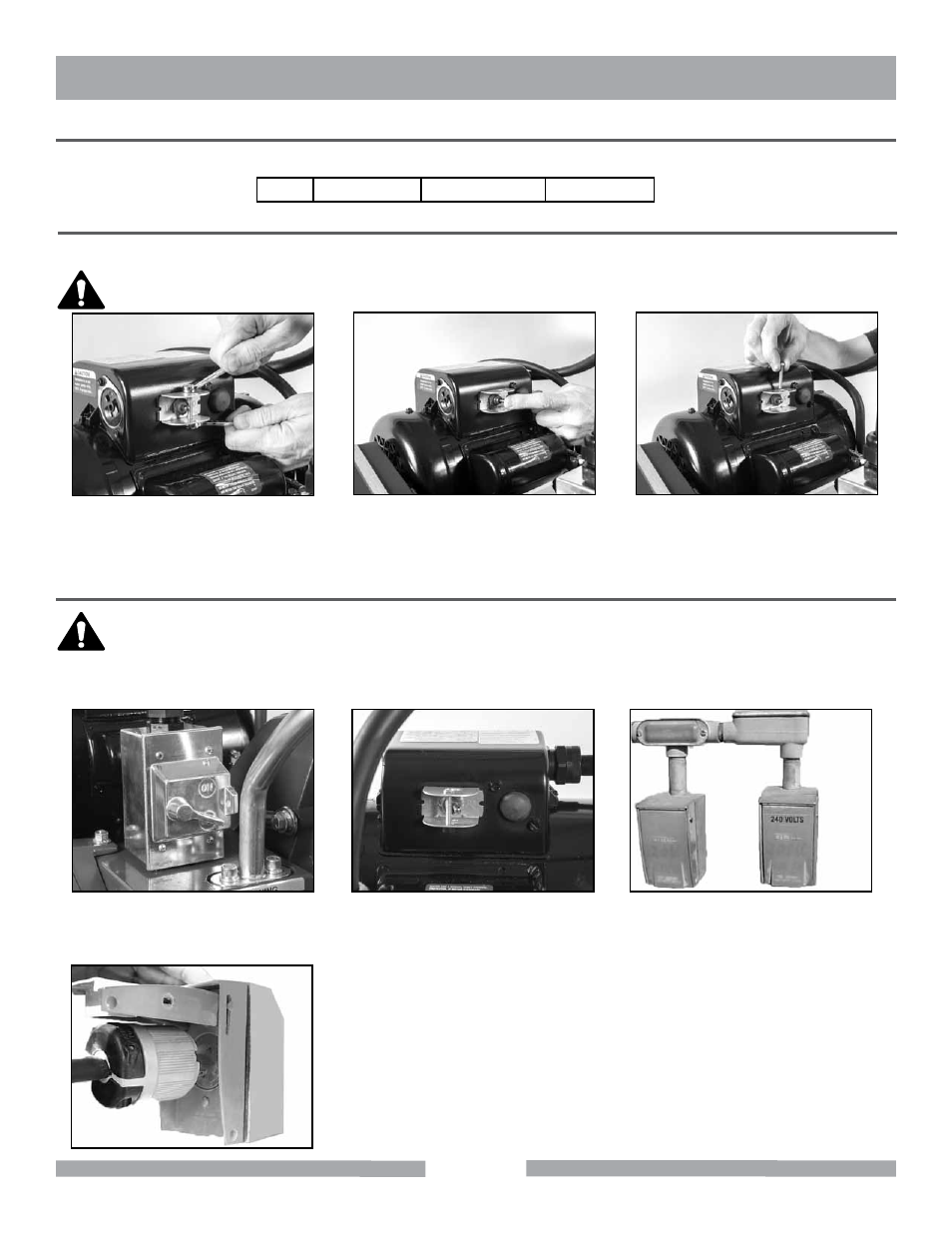

MK-2000 ELECTRIC SAW OPERATION
PORTABLE GENERATOR
If using a portable generator to provide power, ensure the generator meets the following minimum
requirements:
8 KW 120/240 volts 66.7/33.3 amps Single Phase
DUAL VOLTAGE
CHANGING VOLTAGE SETTING FOR THE MK-2002
(A)
Remove the Voltage Change
Switch locking nut and bolt using
3/8" and 5/16" wrenches.
(B)
Move the Voltage Change Switch
to the desired voltage setting.
(B)
Reinstall the locking bolt and
replace the nut.
Perform the following steps to change voltage setting between 115V and 230V.
CAUTION The power must be removed from the saw before changing the voltage setting.
