20

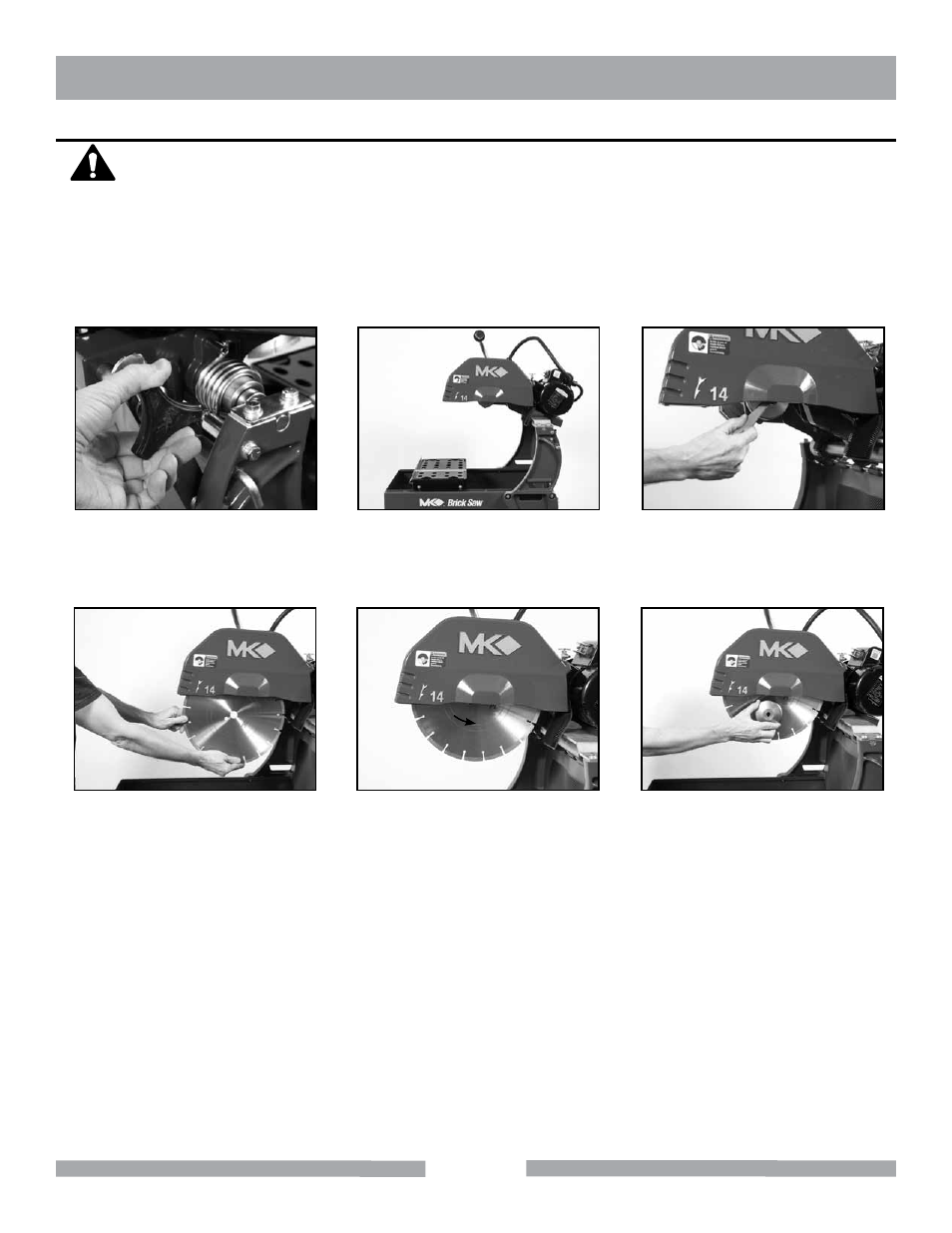

DIAMOND BLADE INSTALLATION
CAUTION
(A)
While holding cutting head handle
loosen the cutting head locking handle
by turning counter-clockwise.
MK-2000 ELECTRIC SAW DIAMOND BLADE
(B)
Raise cutting head to the highest
position and tighten the locking
handle.
(C)
Identify and remove retaining screw and
outer flange using the blade wrench.
Turn counter-clockwise to loosen.
(D)
Install the diamond blade onto the
blade shaft with the directional ar-
row facing out.
(E)
Verify the blade is seated on the blade
shaft and the directional arrow are
facing out.
(F)
Install outer flange and then retaining
screw; tighten screw by rotating the
blade wrench clockwise.
When installing the diamond blade retaining-bolt, ensure the threads of the bolt
are aligned with the threads of the blade shaft so as not to “cross-thread” the bolt.
NOTE: The Cutting Head is locked in the down position when shipped form the factory.
