Metal Sales Span-Line 36A - Manual (Page 5)

PSP-5

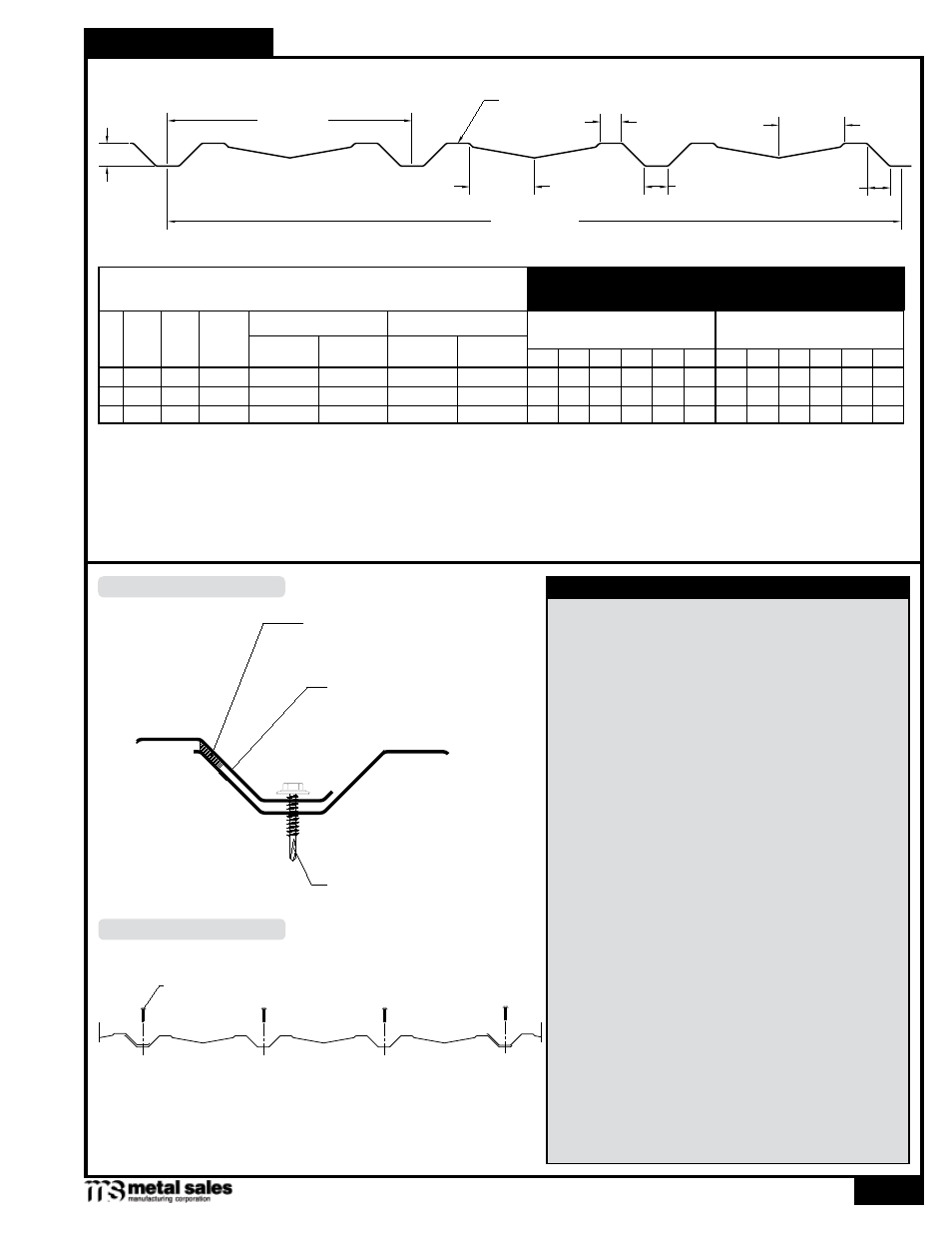

SPAN-LINE 36A
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com
s
eCTion
P
roPerTies and
g
eneral
i
nformaTion
1 1 /
8
"
12"
3 1 /
4
"
1"
7 /
8
"
3.20"
1 1 /
8
"
C
36" Coverage
ALLOWABLE UNIFORM LIVE LOADS PSF
(3 or More Equal Spans)
2' 3' 4' 5' 6' 7' 2' 3' 4' 5' 6' 7'
SECTION PROPERTIES
Bottom in Compression
Width
(in.)
Yield
KSI
36" 80
36" 50
36" 50
26
Ga.
24
22
Sxx
In 3 /ft
Ixx
In 4 /ft
Weight
PSF
0.88
1.14
1.47
Top in Compression
Sxx
In 3 /ft
Ixx
In 4 /ft
Inward (Stress / Deflection)
Load
Outward Uplift (Stress)
Load
0.0237 0.0290 0.0257 0.0341 206 99 57 37 26 19 242 114 66 42 30 22
0.0353 0.0440 0.0363 0.0464 256 117 67 43 29 18 325 148 84 54 38 28
0.0467 0.0586 0.0467 0.0607 306 147 85 55 38 24 397 189 109 71 50 37
1. Theoretical section properties have been calculated per AISI 2001 “Specification for the Design of Cold-formed Steel Structural Members.” Ixx and Sxx are
effective section properties for deflection and bending.
2. Allowable load is calculated in accordance with AISI 2001 specifications considering bending, shear, combined bending and shear, deflection, and applicable
testing when available. Allowable load considers the worst case of 3 and 4 equal span conditions. Allowable load does not address web crippling or
fasteners/support connection and panel weight is not considered.
3. Deflection consideration is limited by a maximum deflection ratio of L/180 of span.
4. Allowable loads do not include a 1/3 stress increase in uplift.
GENERAL INFORMATION ATTACHMENT DETAIL
FASTENING PATTERN
#12-14 x 1 1 /
4
" Self Driller
Span-Line 36A Panel
Tape Sealant
 Substructure
 Coverage
 Length
 Fasteners
 Availability
Span-Line 36A is designed to be utilized over open
structural framing but can easily be used with a solid sub-
strate. To avoid panel distortion use a properly aligned
and uniform substructure.
Span-Line 36A panels are available in a 1 1 /
8
" rib height
with a coverage width of 36".
Minimum factory cut length is 5'-0". Maximum
recommended panel length is 45'-0". Longer panels
require additional consideration in packaging,
shipping, and erection. Please consult Metal Sales for
recommendations.
The fastener selection guide should be consulted for
choosing the proper fastener for specific applications.
Quantity and type of fastener must meet necessary
loading and code requirements.
NOTE: All panels are subject to surface distortion due to
improperly applied fasteners. Overdriven fasteners will
cause stress and induce oil canning across the face of
the panel at or near the point of attachment.
Finishes: Acrylic Coated Galvalume ® , MS Colorfast45 ® ,
or various Kynar 500 (PVDF) colors.
Gauges: 26 ga and 24 ga standard, 22 ga optional
#12-14 x 1 1 /
4
" Self Driller
