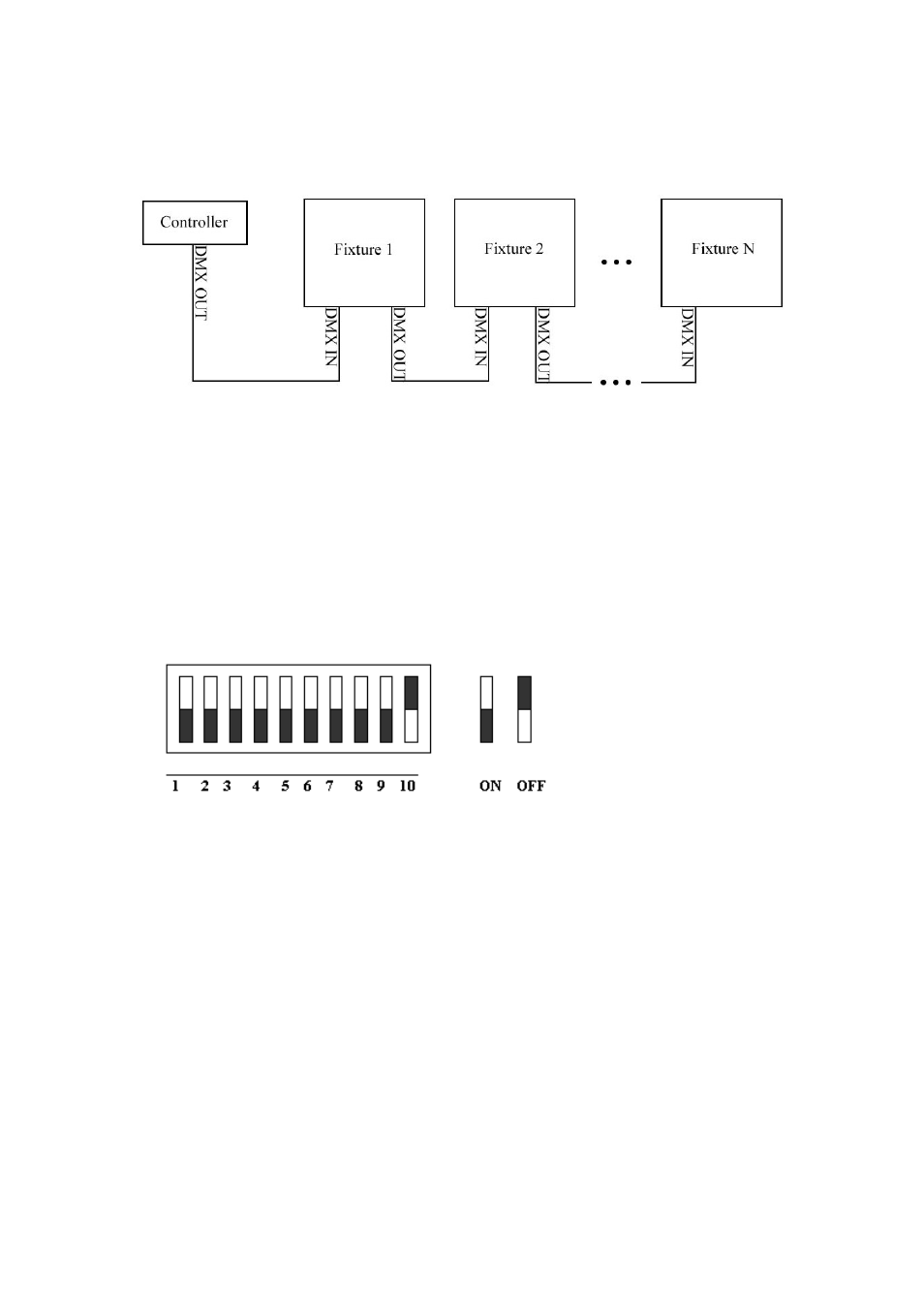

must chain multiple fixtures together through serial linking, never split your DMX
connections unless you are using our splitter/signal amplifier such as SRL-144.
D. DMX addressing
All fixtures should be given a DMX starting address when using a DMX controller, so the
correct fixture responds to the correct control signal. This digital starting address is the
channel number from which the fixture starts to "listen" to the digital control information
sent out from the DMX controller. The allocation of this starting DMX address is achieved
by various combining the dipswitches.
This fixture employs 10 dipswitches to access its functions. Normally the dipswitches from
#1 to #9 are used for encoding DMX address, the dipswitch #10 for enabling DMX mode.
Dipswitch 1 address equals to 1
Dipswitch 2 address equals to 2
Dipswitch 3 address equals to 4
Dipswitch 4 address equals to 8
Dipswitch 5 address equals to 16
Dipswitch 6 address equals to 32
Dipswitch 7 address equals to 64
Dipswitch 8 address equals to 128
Dipswitch 9 address equals to 256
DMX address=Dipswitch 1+Dipswitch 2+…+Dipswitch 9.
