MAMAC Systems PR-243 - Manual (Page 3)

Model PR-243
Technical Information
TI.243-06
PNEUMATIC PRESSURE SENSOR
Page 3 of 4
mA Output
VDC Output
S1
+ -
ON
1 2
Z S
RoHS

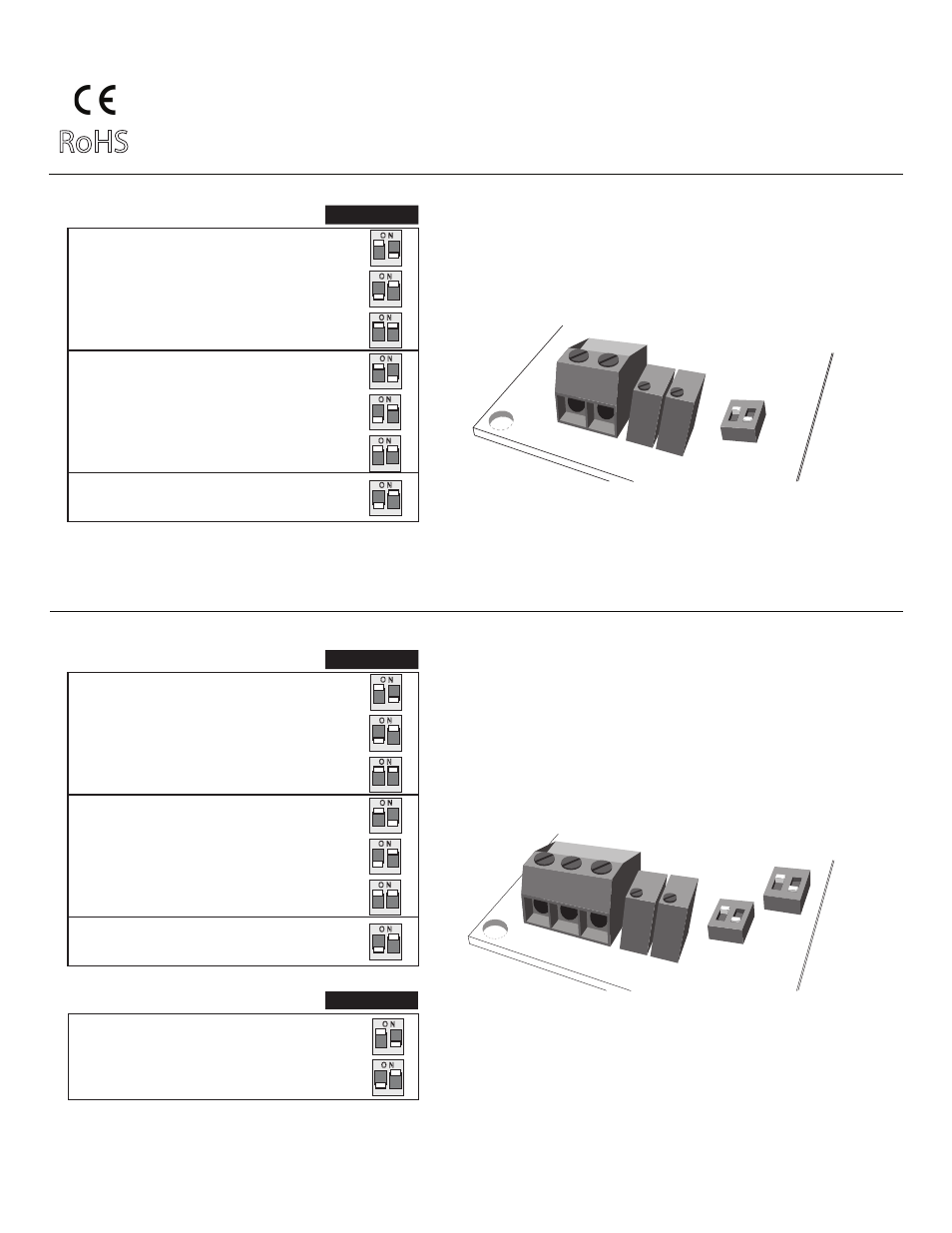

Figure 5 – Range Configurations for Pressure Transducers with mA Outputs
Figure 6 – Range Configurations for Pressure Transducers with VDC Outputs
ON
1 2
S2
S1
+ -
O
ON
1 2
Z S
0–20 psig / 0–140 kPa (default)
0–30 psig / 0–200 kPa (default)
0–10 psig / 0–70 kPa
0–5 psig / 0–35 kPa
0–15 psig / 0–100 kPa
0–7.5 psig / 0–50 kPa
1 2
O N
1 2
O N
1 2
O N
1 2
O N
1 2
O N
1 2
O N
1 2
O N
3–15 psig / 20–100 kPa (default)
0–10 VDC (default)
0–5 VDC
1 2
O N
1 2
O N
0–20 psig / 0–140 kPa (default)
0–30 psig / 0–200 kPa (default)
0–10 psig / 0–70 kPa
0–5 psig / 0–35 kPa
0–15 psig / 0–100 kPa
0–7.5 psig / 0–50 kPa
1 2
O N
1 2
O N
1 2
O N
1 2
O N
1 2
O N
1 2
O N
1 2
O N
3–15 psig / 20–100 kPa (default)
R1 / R4
R2 / R5
R3 / R6
R1 / R4
R2 / R5
R3 / R6
Range Configuration: Switch 1 (S1)
Range Configuration: Switch 1 (S1)
Output Configuration: Switch 2 (S2)
