MAMAC Systems TE-213 - Manual (Page 2)

Accuracy of Duct Averaging Transducer is ±3°F
Accuracy*: ±0.50°F FS
Linearity: ±0.05°F
Repeatability: ±0.01°F
Transmitter Error: Better than ±0.01% span
Supply Voltage: 12-40 VDC
12-35 VAC (VDC output units only)
Ambient Temperature: -30°F to 150°F
(-35ºC to 60ºC)
Environmental: 10 - 95% RH Non-condensing
Maximum Temperature Span: 250°F (138ºC)
Minimum Temperature Span: 35°F (19ºC)
CONFORMANCE & TESTING:
RoHS Compliant
EMC Testing:
BS EN 55022:1998, BS EN 55024:1998,
EN 61000-3-3, EN 61000-4-2,
EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6,
EN 61000-4-11
SPECIFICATIONS:

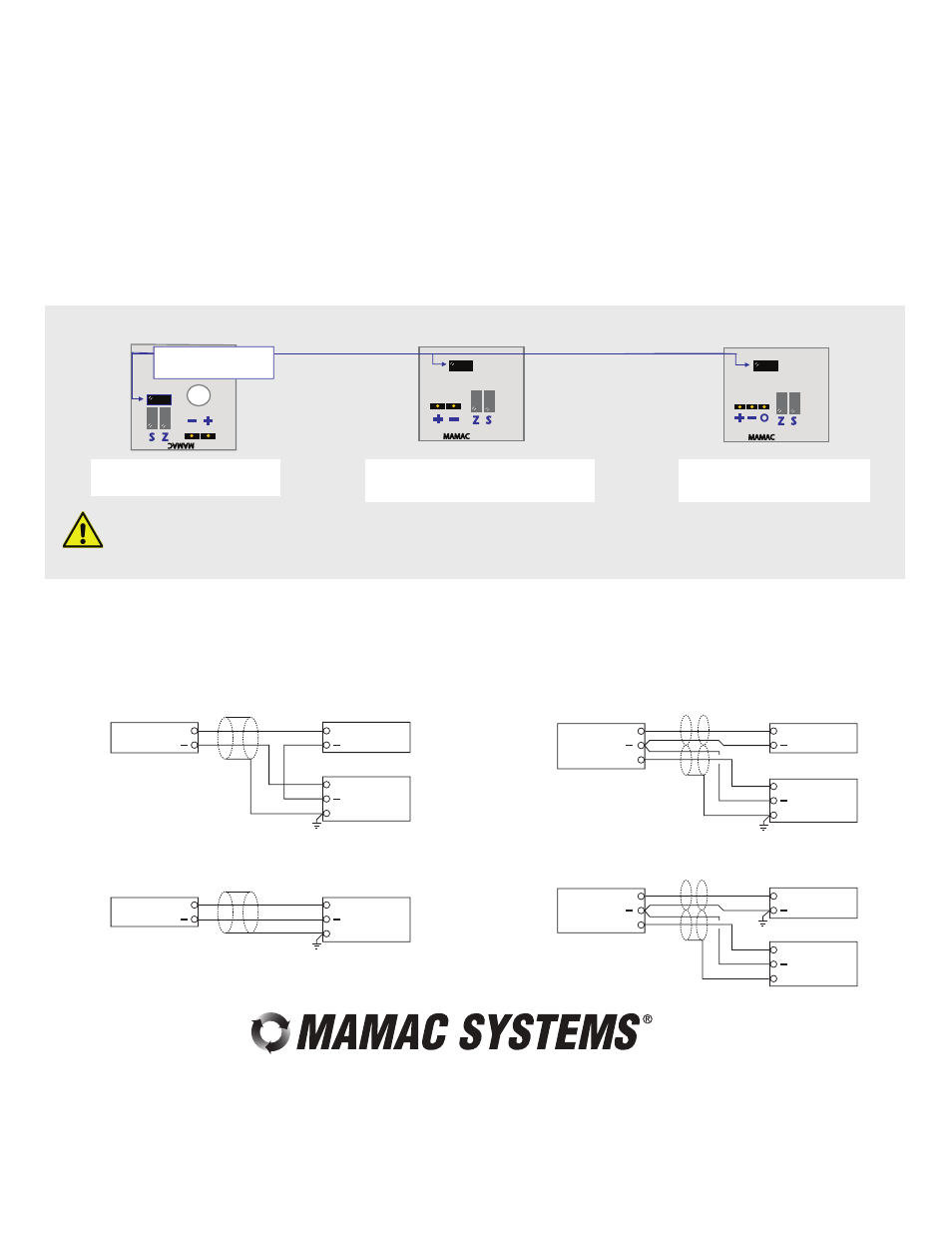

ZERO AND SPAN TRIMMER POSITIONS
Z S
MAMAC
Z S
MAMAC
Z S
MAMAC
WARNING!
DO NOT CHANGE THESE
ADJUSTMENT TRIMMERS!
TYPICAL APPLICATIONS (wiring diagrams)
Please Note: Shown with terminal blocks removed!
Input Signal +
Common
+ +
Shield/Ground
Controller / Meter / Recorder
mA Output Transducer Only 12-40 VDC Power Supply
Input Signal
+
Common
+
Shield/Ground
Controller / Meter / Recorder mA Output Transducer Only
Figure 1 and Figure 2 illustrate typical wiring diagrams for the mA
output temperature transducer.
Figure 1 - Wiring for mA Temperature Transducers with an External
DC Power Supply
Figure 2 - Wiring for mA Output Transducers where the Controller
or Meter has an Internal DC Power Supply
Figure 3 and Figure 4 illustrate typical wiring diagrams for the VDC
output temperature transducer.
Signal
+
Common
Supply
Neutral
Hot
O
Input Signal
+
Common
+
Shield/Ground
Controller / Meter / Recorder
VDC Output Transducer Only 12-35 VAC Transformer
Figure 3 - Wiring for VDC Temperature Transducers When Applied
with External AC Supply
Figure 4 - Wiring for VDC Temperature Transducers When Applied
with External DC Supply
Signal
+
Common
Supply
O
Input Signal
+
Common
+
Shield/Ground
Controller / Meter / Recorder
VDC Output Transducer Only 12-40 VDC Power Supply
4200 Waterside Centre
Solihull Parkway
Birmingham • West Midlands
B37 7YN • United Kingdom
01384-271113 • Fax 01384-271114
1 Fullerton Road #02-01
One Fullerton
Singapore • 049213
65-31581826 • Fax 65-31581826
4 Armiger Court, Unit 2
Adelaide • S.A.
5088 • Australia
08-8395-4333 • Fax 08-8395-4433
675 Cochrane Drive
East Tower • 6th Floor
Toronto • Ontario
L3R 0B8 • Canada
905-474-9215 • Fax 905-474-0876
8189 Century Boulevard • Minneapolis, MN 55317-8002 • USA
800-843-5116 • 952-556-4900 • Fax 952-556-4997
[email protected] • www.mamacsys.com
MAMAC Systems, Inc., reserves the right to change any specifications without
notice to improve performance, reliability, or function of our products. TI.211Z/213-05
Please Note: “Z” designates the zero trimmer potentiometer, “S” designates the span trimmer potentiometer. These devices are calibrated in our
factory using NIST certified temperature calibration equipment.
There should be no requirement for field calibration.
TE-211 Board, Wall Mount
Figure 1
TE-211 Board, All Other Versions
Figure 2
TE-213 Board, All Versions
Figure 3
