UNIT mm inch
A 20.60 +0.254/-0.254 0.811 +0.010/-0.010
B 9.70 +0.254/-0.254 0.382 +0.010/-0.010
C 6.20 +0.254/-0.254 0.244 +0.010/-0.010
D 3.20 +0.127/-0.127 0.126 +0.005/-0.005
E 0.50 +0.127/-0.127 0.020 +0.005/-0.005
F 2.54 +0.127/-0.127 0.100 +0.005/-0.005
G 17.78 +0.254/-0.254 0.700 +0.010/-0.010
H 7.62 +0.254/-0.254 0.300 +0.010/-0.010
RT11H03 XX XX
Maglayers Part Number Year
Week

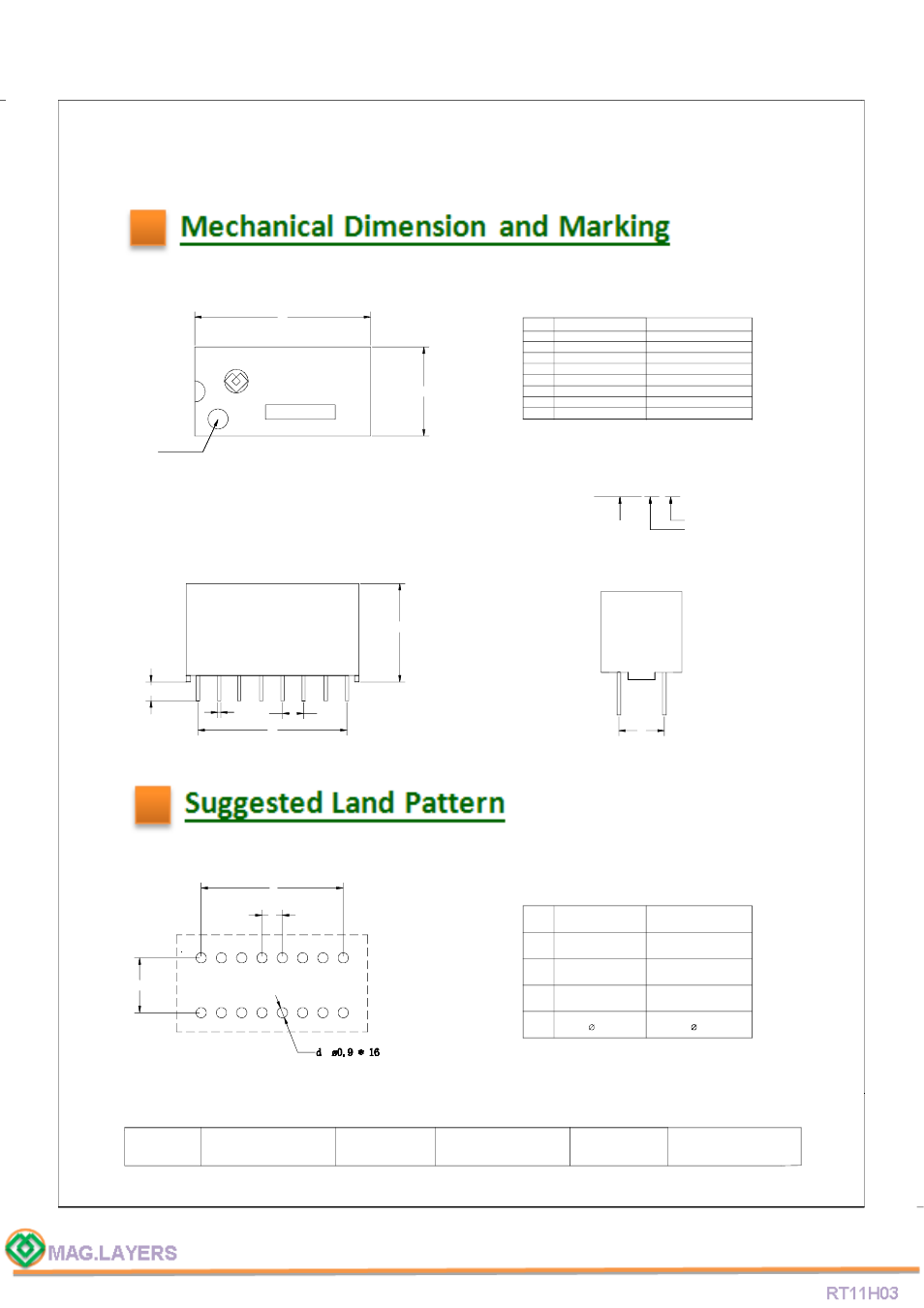

Mechanical Dimension and Marking
Suggested PWB Layout
UNIT mm inch
a
b
c
d
17.78
7.62
2.54
0.90
0.700
0.300
0.100
0.035
B
H
PIN 1
Date Code
RT11H03
A
a
c
b
Drawn Yuxuan.Xiang Designed Yuxuan.Xiang Approved James.Cheng
G
D
F E
C
