SCOPE：
This specification applies to the Pb Free high current type SMD inductors for
MSCDRI-4D18-SERIES
PRODUCT INDENTIFICATION
MSCDRI-4D18-100 M
① ② ③ ④
① Product Code
② Dimensions Code
③ Inductance Code
④ Tolerance Code

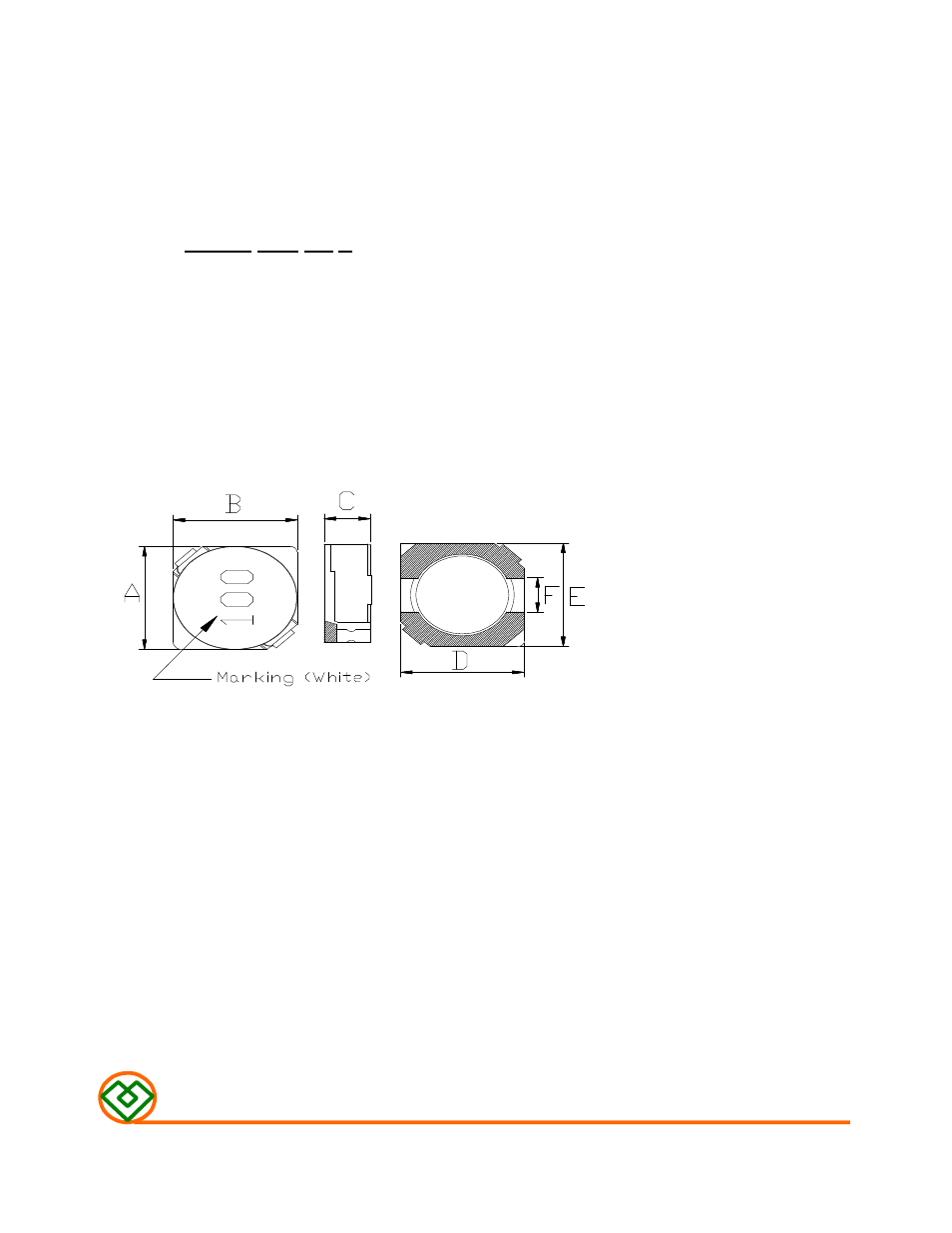

(1) SHAPES AND DIMENSIONS
A: 4.70 ±0.3 mm
B: 4.70 ±0.3 mm
C: 2.00 Max. mm
D: 4.50 Typ. mm
E: 4.50 Typ. mm
F: 1.50 Typ. mm
(2) ELECTRICAL SPECIFICATIONS
SEE TABLE 1
TEST INSTRUMENTS
L : HP 4284A PRECISION LCR METER (or equivalent)
RDC : CHROMA MODEL 16502 MILLIOHMMETER (or equivalent)
(3) CHARACTERISTICS
(3)-1 Ambient temperature ……......... ＋60℃ Max.
(3)-2 Operate temperature range ...... －40℃～＋125℃
(Including self temp. rise)
(3)-3 Storage temperature range ...... －40℃～＋125℃
MSCDRI-4D18-SERIES Page 1/8
