TABLE
Inductance Percent Test Rated DC Current
L(nH) Tolerance Frequency IDC1(A) IDC2(A)
22 L、M、N 100kHz/0.1V 32 22 22N
50 L、M、N 100kHz/0.1V 29 19 50N
65 L、M、N 100kHz/1.0V 0.32 Typ 0.4 Max. 24 19 65N
※ □ specify the inductance tolerance,L(±15%)、M(±20%)、N(±30%)
※ IDC1： Based on inductance change (△L/Lo：drop 20% Max.)@ ambient temp. 25℃
IDC2： Based on temperature rise (△T： 40℃ TYP.)
Rated DC Current： The less value which is IDC1 or IDC2 .

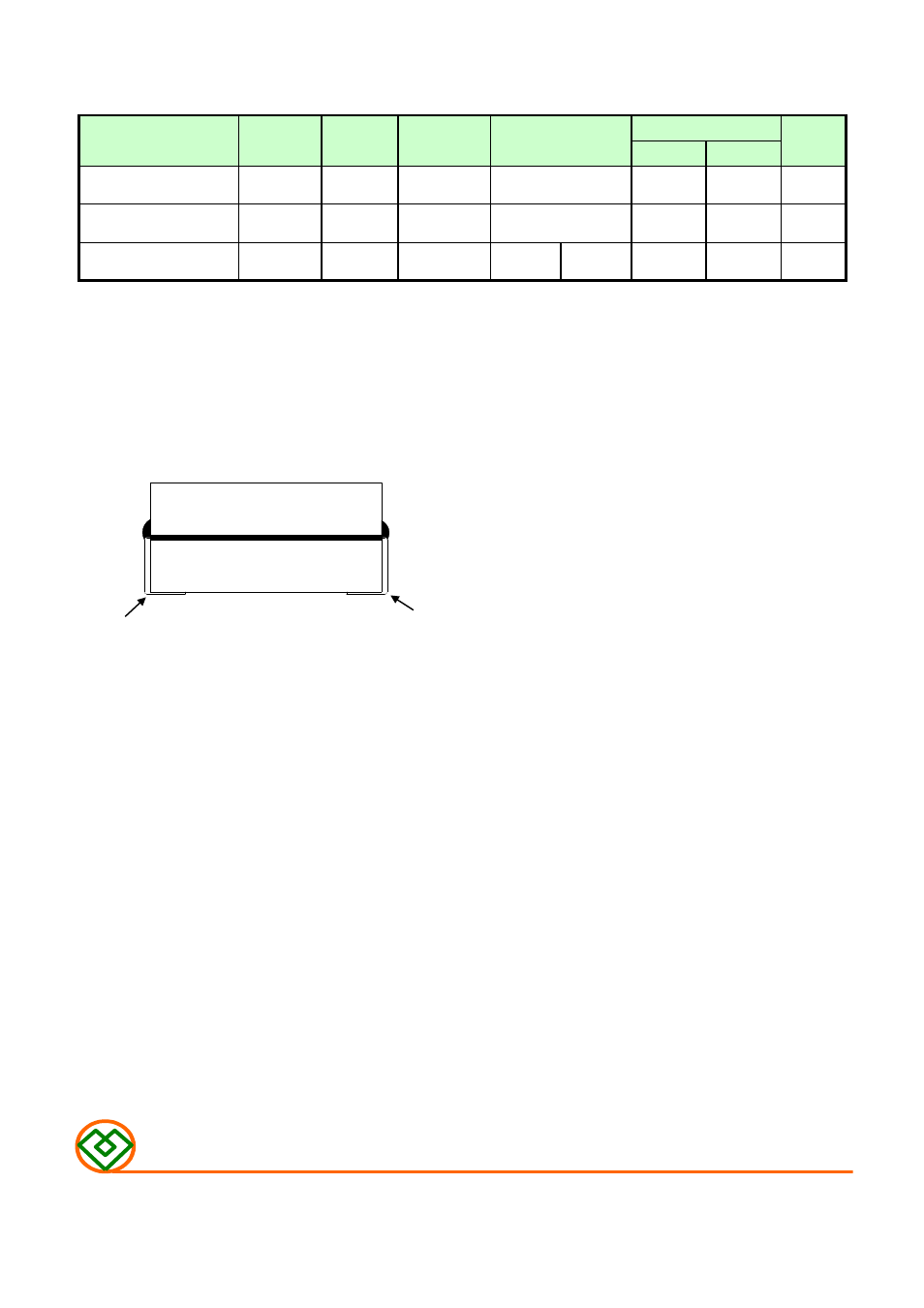

The nominal DCR is measured from point 〝a〞to point〝b〞.
Page-2/8
0.23±8.5%
0.32±9.0%
MSI-400404-SERIES-□
RDC TEST POINT
Marking
MAGLAYERS
PT/NO.
MSI-400404-22N□-E
MSI-400404-50N□-E
MSI-400404-65N□-E
Resistance
RDC(mΩ)
MAG.LAYERS
a b
