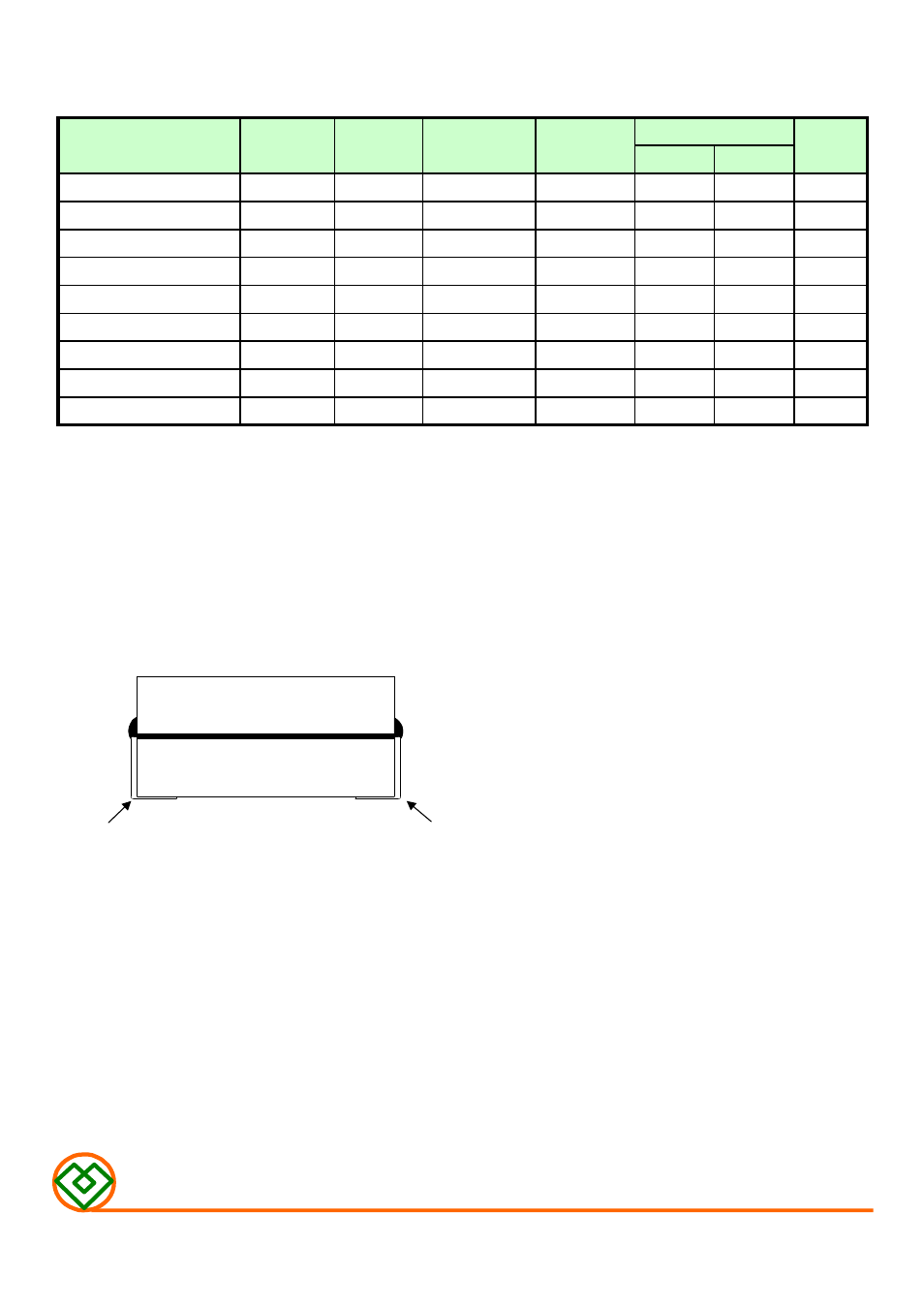

TABLE 1
Inductance Percent Test Resistance Rated DC Current
L( μH) Tolerance Frequency RDC(m Ω) IDC1(A) IDC2(A)
0.07 L,M 100kHz/1.0V 0.29 ±10% ＞70 48 70N
0.10 L,M 100kHz/1.0V 0.29 ±10% ＞70 48 R10
0.12 L,M 100kHz/1.0V 0.29 ±10% ＞70 48 R12
0.15 L,M 100kHz/1.0V 0.29 ±10% 70 48 R15
0.22 L,M 100kHz/1.0V 0.29 ±10% 47 48 R22
0.23 K,L,M 100kHz/1.0V 0.29 ±10% 44 48 R23
0.30 L,M 100kHz/1.0V 0.29 ±10% 32 48 R30
0.40 L,M 100kHz/1.0V 0.29 ±10% 23 48 R40
0.51 L,M 100kHz/1.0V 0.29 ±10% 17 48 R51
※ □ specify the inductance tolerance,K( ±10%),L(±15%),M(±20%)
※ IDC1： Based on inductance change (△L/Lo： drop 20% Max.)@ ambient temp. 25℃
IDC2： Based on temperature rise (△T： 50℃ TYP.)
Rated DC Current： The less value which is IDC1 or IDC2 .
The nominal DCR is measured from point 〝a〞to point〝b〞.
MSI-110708-SERIES Page-2/8
MSI-110708-70N□
MSI-110708-R10□
MSI-110708-R40□
RDC TEST POINT
Marking
MAGLAYERS
PT/NO.
MSI-110708-R51□
MSI-110708-R15□
MSI-110708-R12□
MSI-110708-R22□
MSI-110708-R30□
MSI-110708-R23□
MAG.LAYERS
a b
